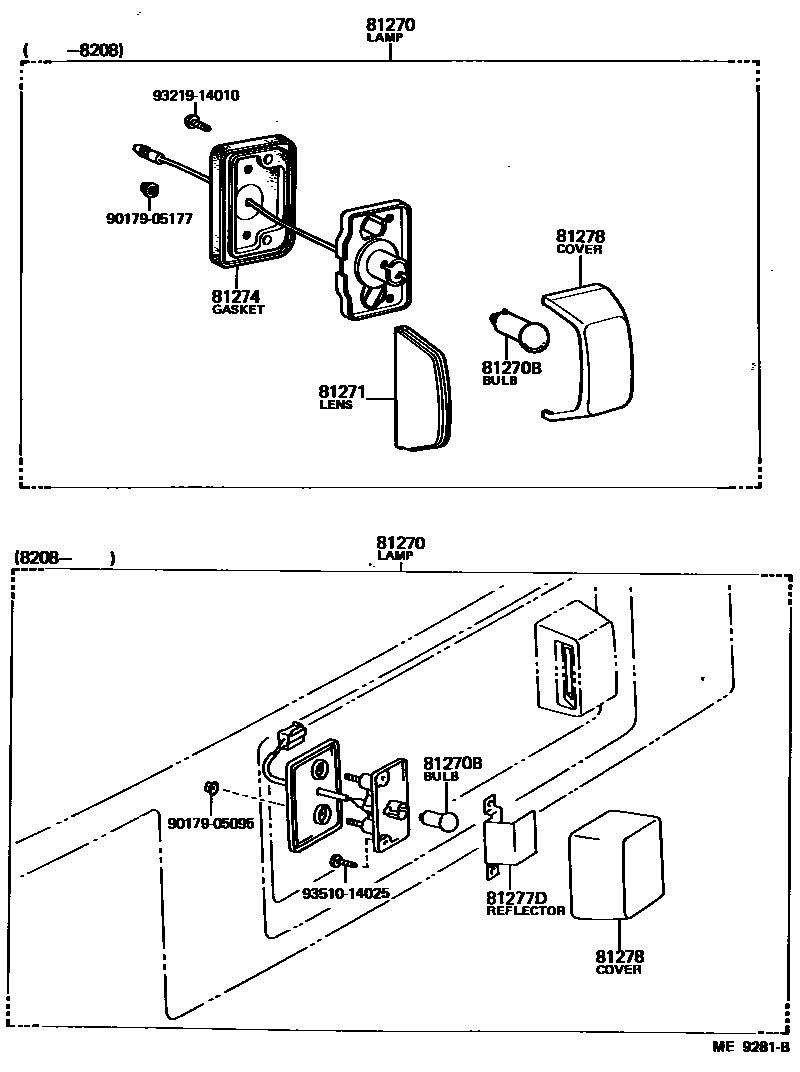

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-19705iKP61198008-198208

RH

main81270-80002iKP61198208-198303

RH

main81270-80016iKP61198303-198312

RH

main81690-19145iKP61198008-198208

LH

main81690-19225iKP61198208-198303

LH

main81690-19255iKP61198303-198312

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11075×2iKP61198008-198312

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-20110iKP61198008-198208

RH

main81691-20030iKP61198008-198208

LH

81274GASKET, LICENSE PLATE LAMP BODY

main81274-20110iKP61198008-198208

RH

main81694-20030iKP61198008-198208

LH

81277DREFLECTOR, LICENSE PLATE LAMP

main81277-16120×2iKP61198208-198312

81278COVER, LICENSE PLATE LAMP

main81271-10141×2iKP61198303-198312

main81271-16120×2iKP61198208-198303

main81276-12210iKP61198008-198208

RH

main81696-12060iKP61198008-198208

LH

9017905095

main90179-05095

9017905177

main90179-05177

9321914010

main93219-14010

9351014025

main93510-14025

10 parts on this diagram · 1 diagram in section
