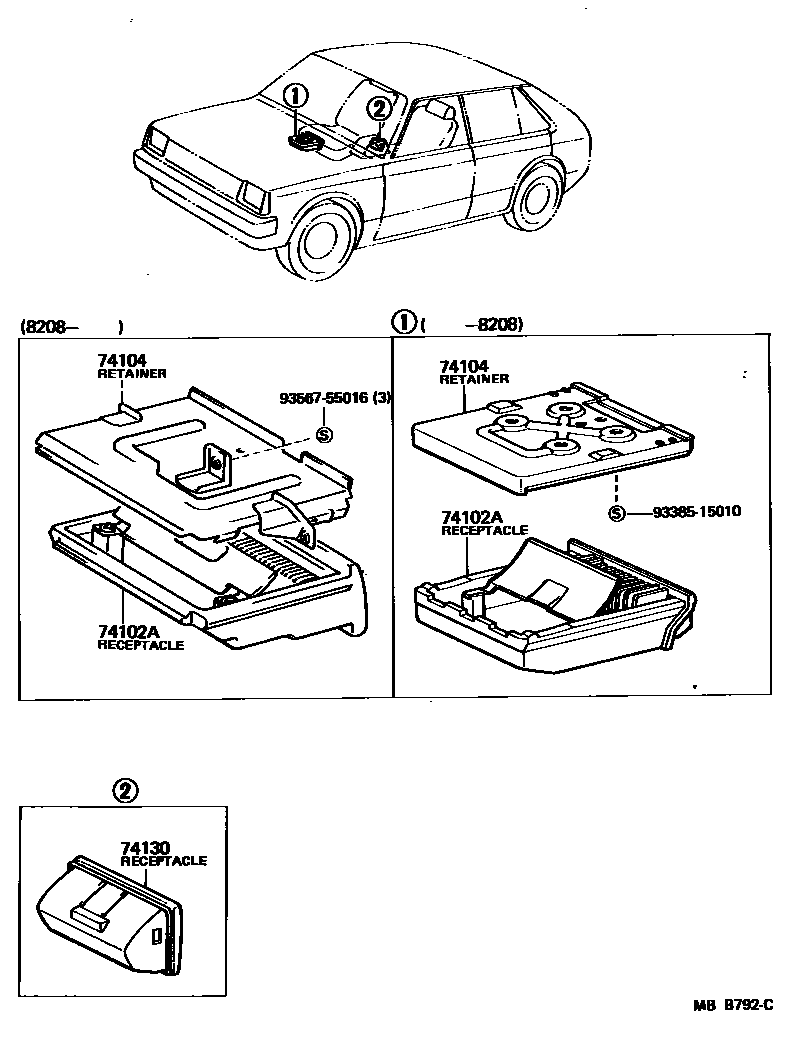

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10010-01iKP61198008-198208

BLACK,BLACK

main74102-10010-06iKP61198008-198208

LIGHT BROWN,BROWN

main74102-10020iKP61198208-198312

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10040iKP61198008-198208

main74104-10050iKP61198208-198312

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iKP61198012-198208

BLACK,BLACK

main74130-12040-13iKP61198208-198312

GRAY,GRAY

main74130-12040-15iKP61198012-198208

BEIGE,BEIGE

main74130-12040-16iKP61198208-198312

BROWN,BROWN

9338515010

main93385-15010

9356755016

main93567-55016

5 parts on this diagram · 1 diagram in section
