BATTERY CARRIER

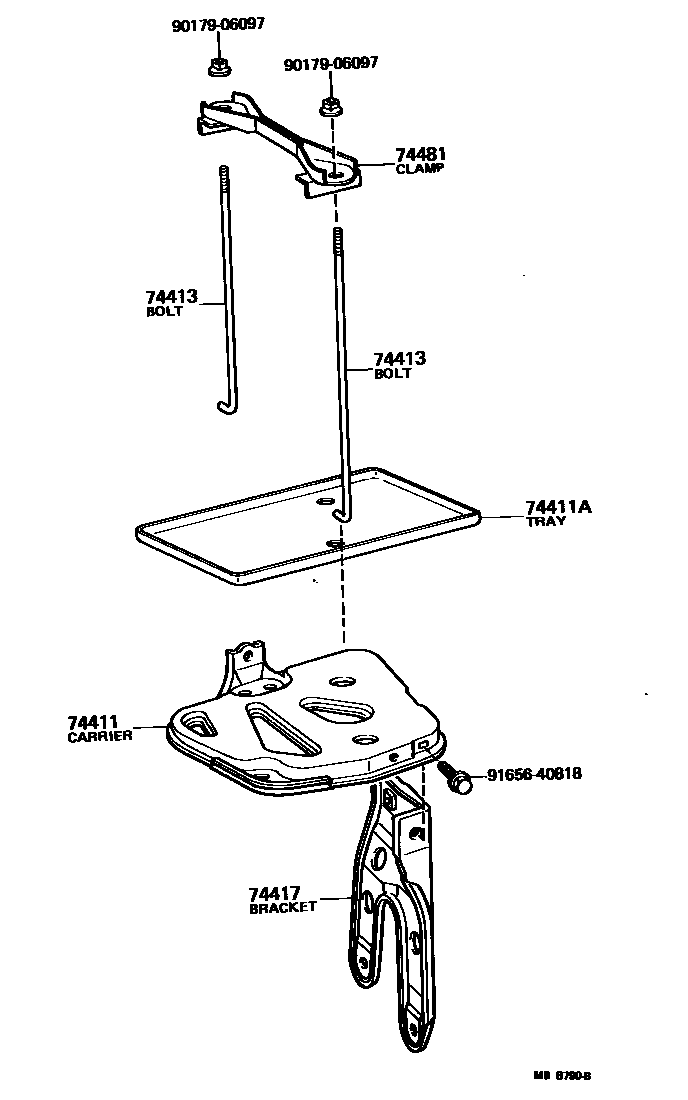

Parts diagram

74411CARRIER, BATTERY

main74411-10082i198008-198208

main74411-10120i198208-198312

74411ATRAY, BATTERY

main74431-14030i198008-198312

74413BOLT, BATTERY CLAMP

main74451-14010i198008-198312

L=236

main74451-30060i198008-198312

L=210

74417BRACKET, BATTERY CARRIER

main74417-10022i198008-198312

74481CLAMP, BATTERY HOLD DOWN

main74404-10100i198208-198312

main74481-10100i198008-198208

9017906097

main90179-06097

9165640818

main91656-40818

7 parts on this diagram · 1 diagram in section
