SEAT TRUCK

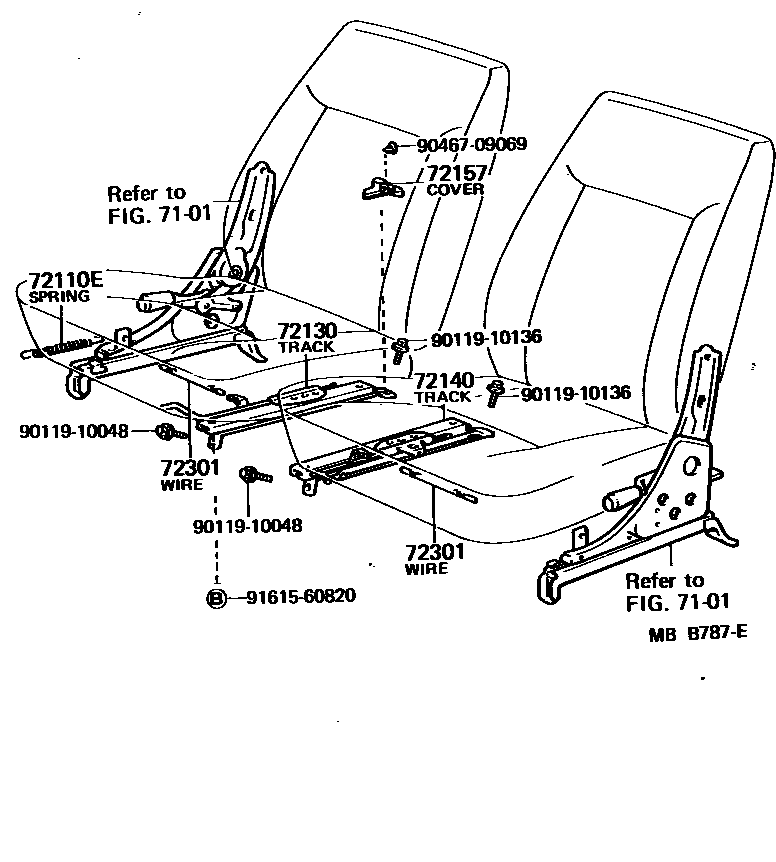

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18020iKP61198008-198312

72130TRACK ASSY, RH SEAT, INNER

main72130-10051iKP61198008-198208

W/WALK-IN TYPE

main72130-10071iKP61198008-198208

W/O WALK-IN TYPE

main72130-10210iKP61198208-198312

W/O WALK-IN TYPE

main72130-10220iKP61198208-198312

W/WALK-IN TYPE

72140TRACK ASSY, LH SEAT, INNER

main72140-10081iKP61198008-198208

main72140-10170iKP61198208-198312

72157COVER, SEAT TRACK BRACKET, INNER

main72157-10010iKP61198012-198208

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-10030×2iKP61198208-198312

9011910048

main90119-10048

9011910136

main90119-10136

9046709069

main90467-09069

9161560820

main91615-60820

10 parts on this diagram · 1 diagram in section
