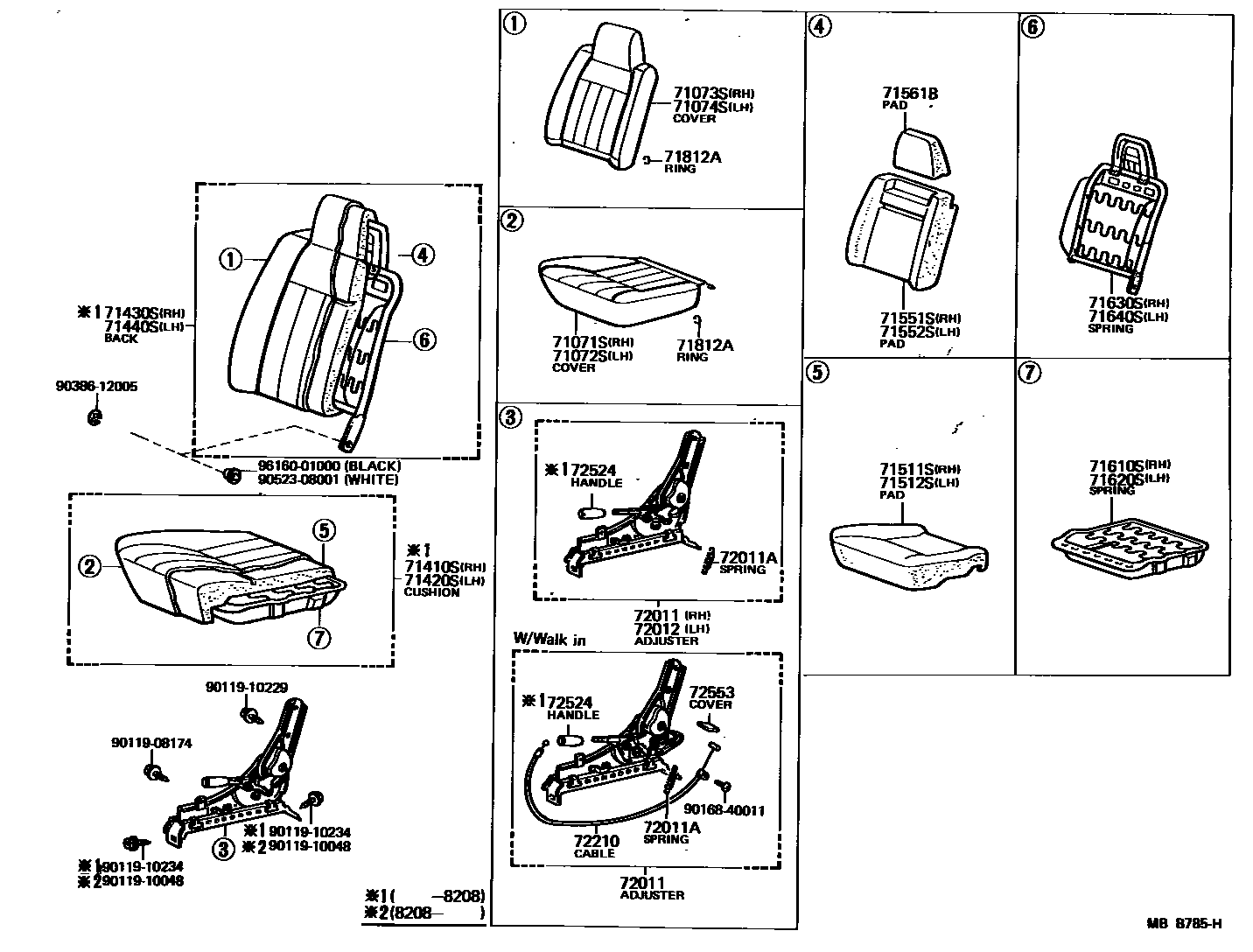

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
FB,LIGHT GRAY,GRAY
FB,BEIGE,BEIGE
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
VL,BLACK & RED,BLACK
VL,LIGHT BROWN & DARK BROWN,BROWN
VL,BLACK & WHITE,IVORY
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71561BPAD, FRONT SEATBACK, UPPER
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71812ARING, HOG, SMALL (FOR FRONT SEAT)
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
W/O WALK-IN TYPE,BLACK,BLACK
W/O WALK-IN TYPE,LIGHT BROWN,BROWN
W/WALK-IN TYPE,BLACK,BLACK
W/WALK-IN TYPE,LIGHT BROWN,BROWN
W/O WALK-IN TYPE,GRAY,GRAY
W/O WALK-IN TYPE,BROWN,BROWN
W/WALK-IN TYPE,GRAY,GRAY
W/WALK-IN TYPE,BROWN,BROWN
72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
BLACK,BLACK
LIGHT BROWN,BROWN
GRAY,GRAY
BROWN,BROWN
72210CABLE ASSY, SEAT TRACK CONTROL
72524HANDLE, RECLINING ADJUSTER RELEASE
BLACK,BLACK
LIGHT BROWN,BROWN
72553COVER, RECLINING PEDAL
9011908174
main90119-08174
9011910048
main90119-10048
9011910229
main90119-10229
9011910234
main90119-10234
9016840011
main90168-40011
9038612005
main90386-12005
9052308001
main90523-08001
9616001000
main96160-01000
32 parts on this diagram · 1 diagram in section
