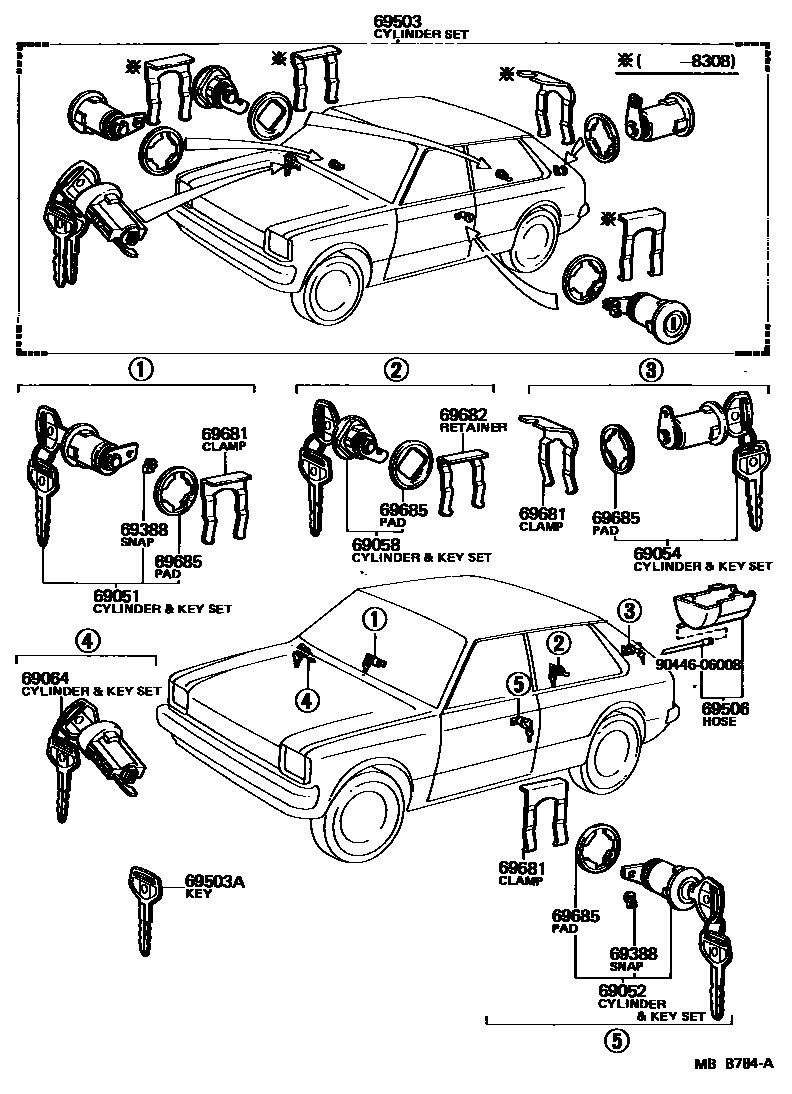

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10070iKP61198208-198312

main69051-19155iKP61198008-198104

main69051-19157iKP61198104-198208

sub69051-10042

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10070iKP61198208-198312

main69052-19145iKP61198008-198104

main69052-19147iKP61198104-198208

sub69052-10042

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-10050iKP61198208-198312

main69055-19335iKP61198008-198208

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-10040iKP61198208-198312

main69058-19035iKP61198008-198104

main69058-19036iKP61198104-198208

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-10050iKP61198208-198312

main69057-12011iKP61198008-198208

69388SNAP, ROD(FOR DOOR LOCK)

main69377-30020iKP61198008-198312

69503CYLINDER SET, LOCK

main69005-10081iKP61198308-198312

main69005-19505iKP61198008-198104

main69005-19507iKP61198104-198208

main69005-19655iKP61198208-198308

sub69005-10081

69503AKEY, BLANK

main90999-00066iKP61198008-198308

MASTER KEY

sub90999-00085

main90999-00104iKP61198308-198312

MASTER KEY,W(*68)

sub90999-00212

69506HOSE ASSY, BACK DOOR LOCK CYLINDER

main69506-10010iKP61198008-198208

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69561-10020iKP61198008-198312

BACK DOOR

main69681-20040iKP61198008-198312

FR DOOR

69682RETAINER, LOCK CYLINDER

main69581-14010iKP61198008-198312

69685PAD, LOCK CYLINDER

main69513-12020iKP61198104-198312

FR DOOR

main69513-14010iKP61198008-198312

FUEL

main69685-12010iKP61198008-198104

FR DOOR,BACK DOOR

main69685-12010iKP61198104-198312

BACK DOOR

9044606008

main90446-06008

13 parts on this diagram · 1 diagram in section
