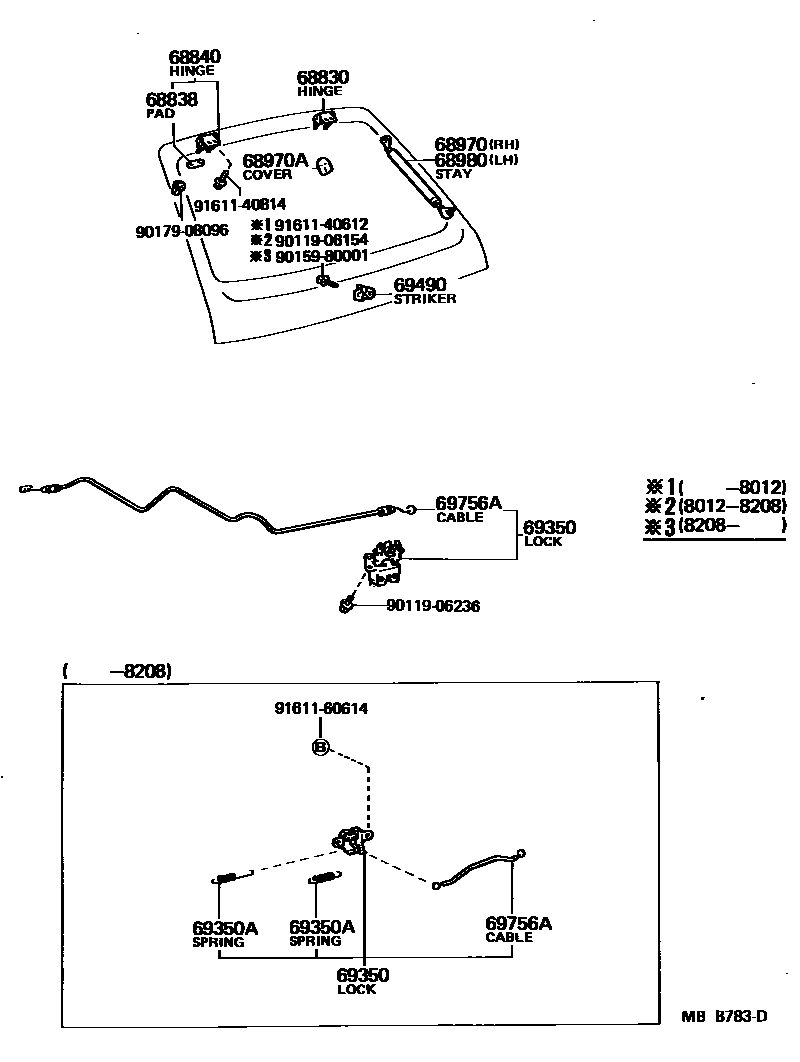

BACK DOOR LOCK & HANDLE

68830HINGE ASSY, BACK DOOR, RH

main68801-10010iKP61198008-198208

main68801-10011iKP61198208-198312

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iKP61198207-198312

main68861-10010×2iKP61198008-198207

68840HINGE ASSY, BACK DOOR, LH

main68801-10010iKP61198008-198208

main68801-10011iKP61198208-198312

68970STAY ASSY, BACK DOOR, RH

main68950-19036iKP61198008-198208

W/RR WIPER

main68950-19037iKP61198208-198312

W/RR WIPER

main68950-19086iKP61198008-198208

W/O RR WIPER

main68950-19087iKP61198208-198312

W/O RR WIPER

68970ACOVER, BACK DOOR STAY

main68911-10010iKP61198008-198208

68980STAY ASSY, BACK DOOR

main68960-19185iKP61198208-198312

W/RR WIPER

main68960-19195iKP61198208-198312

W/O RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-10011iKP61198008-198208

main69350-10040iKP61198208-198312

69350ASPRING(FOR BACK DOOR LOCK)

main90506-07001iKP61198008-198012

L=34

main90506-07003iKP61198012-198208

L=34

main90506-08008iKP61198008-198012

L=26

main90506-08015iKP61198012-198208

L=26

69490STRIKER ASSY, BACK DOOR LOCK

main69430-10010iKP61198008-198208

main69430-10020iKP61198208-198312

69756ACABLE, BACK DOOR LOCKING CONTROL

main64680-10010iKP61198008-198208

main64680-10030iKP61198208-198312

9011906154

main90119-06154

9011906236

main90119-06236

9015980001

main90159-80001

9017908096

main90179-08096

9161140612

main91611-40612

9161140814

main91611-40814

9161160614

main91611-60614

17 parts on this diagram · 1 diagram in section
