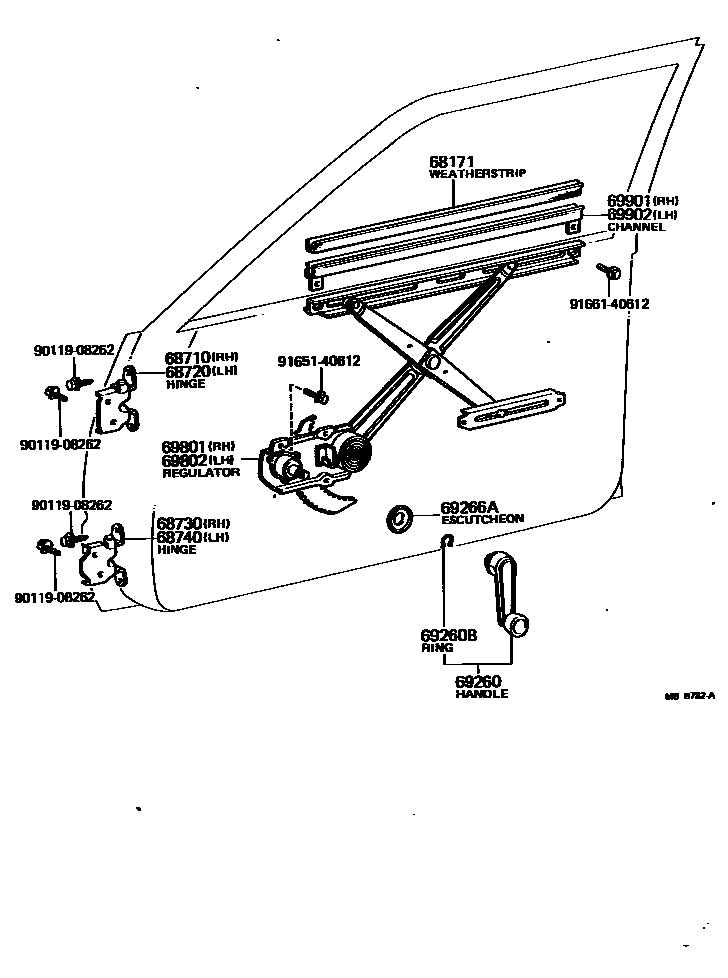

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iKP61198008-198312

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68750-14010iKP61198008-198312

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68760-14010iKP61198008-198312

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iKP61198008-198312

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iKP61198008-198312

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01×2iKP61198008-198208

BLACK,BLACK

main69260-10040-03×2iKP61198208-198312

GRAY,GRAY

main69260-10040-36×2iKP61198008-198208

LIGHT BROWN,BROWN

main69260-10040-46×2iKP61198208-198312

BROWN,BROWN

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iKP61198008-198312

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010×2iKP61198008-198312

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-10050iKP61198008-198312

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-16010iKP61198008-198312

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-10050iKP61198008-198312

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-10050iKP61198008-198312

9011908262

main90119-08262

9165140612

main91651-40612

9166140612

main91661-40612

15 parts on this diagram · 1 diagram in section
