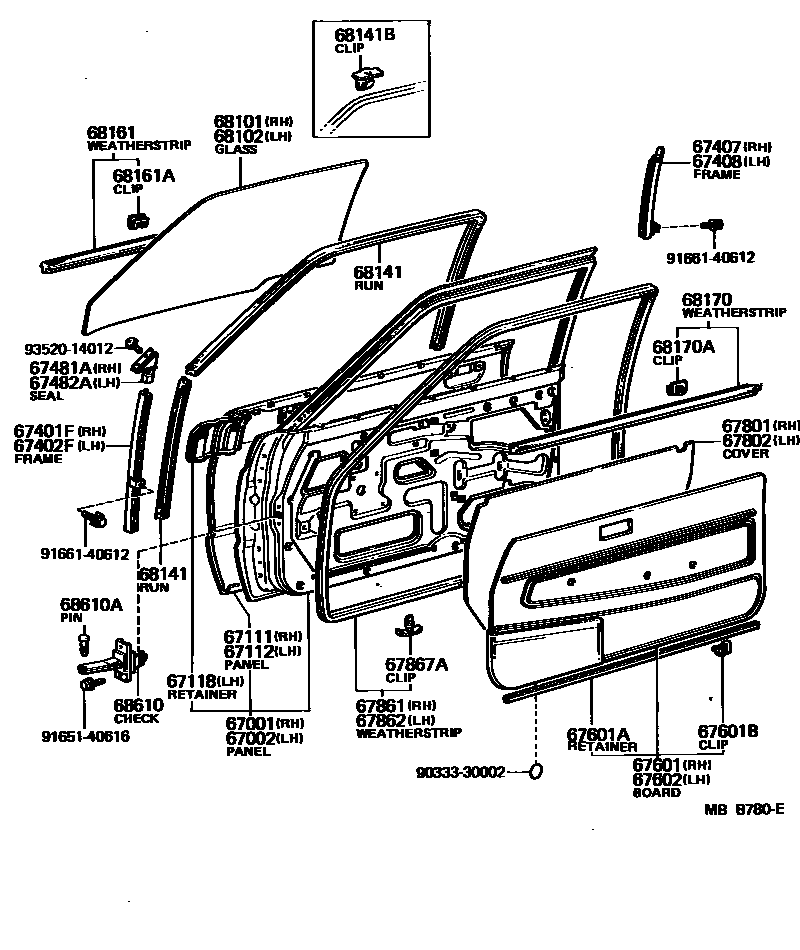

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67118RETAINER, OUTER MIRROR
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
LIGHT BROWN,BROWN
LIGHT GRAY,GRAY
BEIGE,BEIGE
LIGHT GRAY,LIGHT GRAY
BEIGE,BEIGE
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK
LIGHT BROWN,BROWN
LIGHT GRAY,GRAY
BEIGE,BEIGE
LIGHT GRAY,GRAY
BEIGE,BEIGE
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.5
*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.5
*TT,T=3.5
68141RUN, FRONT DOOR GLASS
L=1958
L=430
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
RH
RH
LH
LH
LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
LH
LH
RH
RH
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9033330002
main90333-30002
9165140616
main91651-40616
9166140612
main91661-40612
9352014012
main93520-14012
34 parts on this diagram · 1 diagram in section
