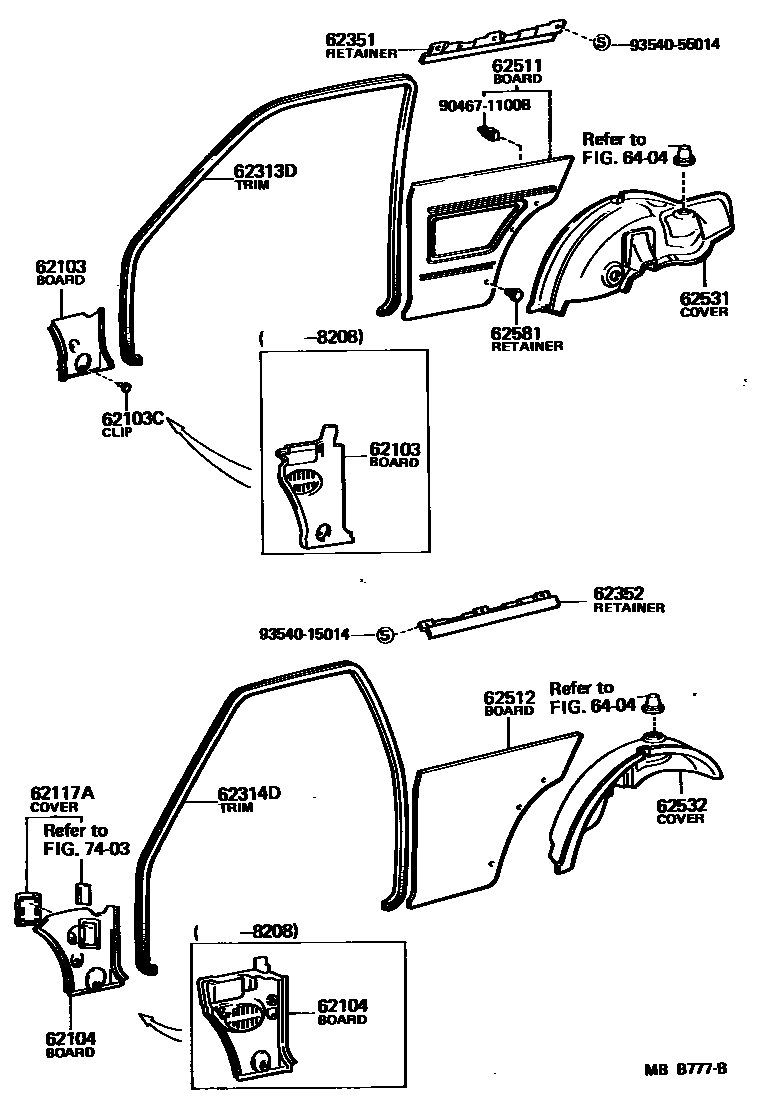

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
BLACK,BLACK
LIGHT BROWN,BROWN
W/SPEAKER,BLACK,BLACK
W/SPEAKER,LIGHT BROWN,BROWN
GRAY,GRAY
BROWN,BROWN
62103CCLIP, COWL SIDE TRIM BOARD SET
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
BLACK,BLACK
LIGHT BROWN,BROWN
W/SPEAKER,BLACK,BLACK
W/SPEAKER,LIGHT BROWN,BROWN
GRAY,GRAY
BROWN,BROWN
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
GRAY,GRAY
BROWN,BROWN
62313DTRIM, FRONT DOOR OPENING, RH
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
62314DTRIM, FRONT DOOR OPENING, LH
BLACK,BLACK
GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
62351RETAINER, QUARTER WINDOW INSIDE TRIM, RH
62352RETAINER, QUARTER WINDOW INSIDE TRIM, LH
62511BOARD, QUARTER INSIDE TRIM, RH
BLACK,BLACK
LIGHT BROWN,BROWN
LIGHT GRAY,GRAY
BEIGE,BEIGE
62512BOARD, QUARTER INSIDE TRIM, LH
BLACK,BLACK
LIGHT BROWN,BROWN
LIGHT GRAY,GRAY
BEIGE,BEIGE
62531COVER, WHEEL HOUSE TRIM, RH
GRAY,GRAY
BROWN,BROWN
BLACK,BLACK
LIGHT BROWN,BROWN
62532COVER, WHEEL HOUSE TRIM, LH
BLACK,BLACK
LIGHT BROWN,BROWN
GRAY,GRAY
BROWN,BROWN
62581RETAINER, QUARTER TRIM
BLACK,BLACK
DARK GRAY,GRAY
LIGHT BROWN,BROWN
BROWN,BROWN
6404DECK BOARD & DECK TRIM COVER
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9046711008
main90467-11008
9354015014
main93540-15014
9354055014
main93540-55014
18 parts on this diagram · 1 diagram in section
