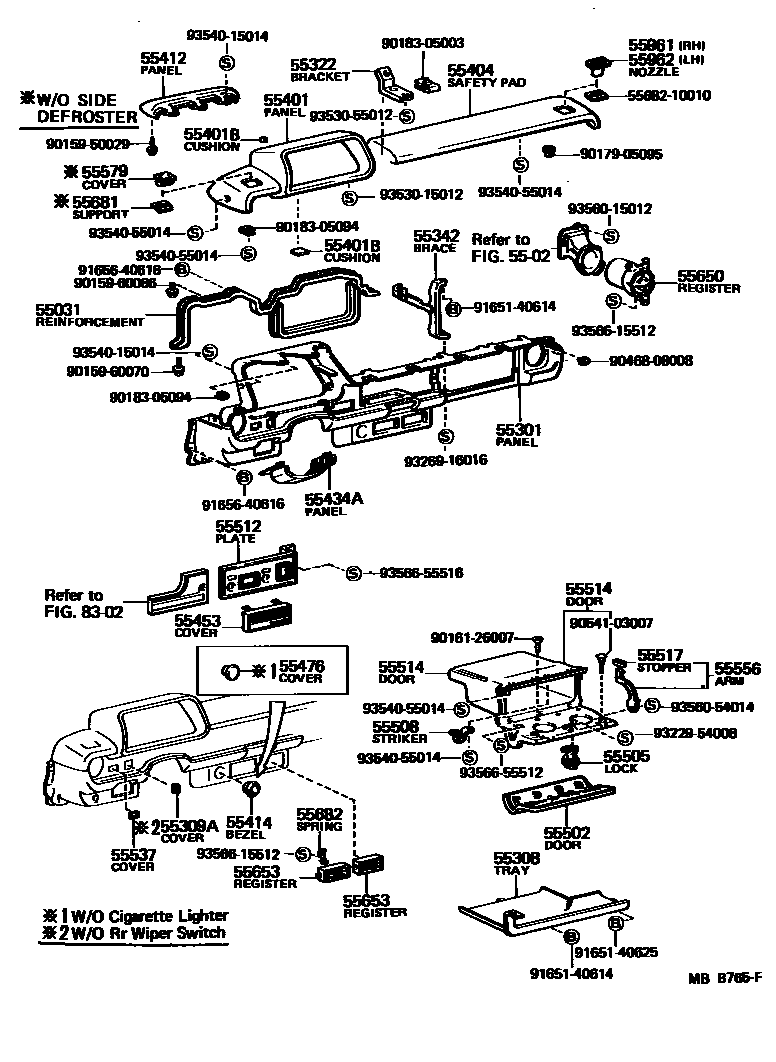

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5502COWL VENTILATOR

→ Go to FIG 55-02

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-10050iKP61198208-198312

main55330-10020iKP61198008-198208

55301PANEL SUB-ASSY, INSTRUMENT

main55301-10360-01iKP61198008-198208

BLACK,BLACK

main55301-10360-06iKP61198008-198208

LIGHT BROWN,BROWN

main55311-10150-03iKP61198208-198312

GRAY,GRAY

main55311-10150-06iKP61198208-198312

BROWN,BROWN

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-10040iKP61198008-198208

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011iKP61198008-198208

55322BRACKET, INSTRUMENT PANEL, NO.1

main55321-10060iKP61198008-198208

main55325-10080iKP61198208-198312

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-10020iKP61198008-198208

main55307-10050iKP61198208-198312

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-10080-03iKP61198208-198312

GRAY,GRAY

main55404-10080-06iKP61198208-198312

BROWN,BROWN

main55411-10111-01iKP61198008-198208

BLACK,BLACK

main55411-10111-06iKP61198008-198208

LIGHT BROWN,BROWN

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-10010×3iKP61198008-198208

UPR,L=6

main55419-10020×2iKP61198012-198208

LWR,L=30

main55419-10050×2iKP61198208-198312

UPR

main55419-10070iKP61198208-198312

LWR

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-10151-01iKP61..USA198008-198101

BLACK,BLACK

main55401-10151-06iKP61..USA198008-198101

LIGHT BROWN,BROWN

main55401-10161-01iKP61198008-198208

W/SIDE DEFROSTER,BLACK,BLACK

main55401-10161-06iKP61198008-198208

W/SIDE DEFROSTER,LIGHT BROWN,BROWN

main55401-10180-03iKP61198208-198312

GRAY,GRAY

main55401-10180-06iKP61198208-198312

BROWN,BROWN

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-10030-01iKP61198008-198208

BLACK,BLACK

main55414-10030-06iKP61198008-198208

LIGHT BROWN,BROWN

55414BEZEL, CIGAR LIGHTER HOLE

main55477-10020iKP61198008-198208

main55477-10030iKP61198208-198312

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55432-10030-01iKP61198008-198208

BLACK,BLACK

main55432-10030-06iKP61198008-198208

LIGHT BROWN,BROWN

55453COVER, RADIO TUNER OPENING

main55522-10021-01iKP61198008-198208

BLACK,BLACK

main55522-10021-06iKP61198008-198208

LIGHT BROWN,BROWN

main55522-10030iKP61198208-198312

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iKP61198008-198312

55502DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER

main55502-10011-01iKP61198008-198208

BLACK,BLACK

main55502-10011-06iKP61198008-198208

LIGHT BROWN,BROWN

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-12020iKP61198008-198208

main55560-16010-03iKP61198208-198312

GRAY,GRAY

main55560-16010-06iKP61198208-198312

BROWN,BROWN

55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55561-10010iKP61198008-198208

55512PLATE, RADIO TUNER FINISH

main55405-10070-01iKP61198008-198208

W/CLOCK,BLACK,BLACK

main55405-10070-06iKP61198008-198208

W/CLOCK,LIGHT BROWN,BROWN

main55405-10080-01iKP61198008-198208

BLACK,BLACK

main55405-10080-06iKP61198008-198208

LIGHT BROWN,BROWN

55514DOOR, GLOVE COMPARTMENT, INNER

main55552-10010iKP61198008-198208

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iKP61198008-198208

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55537-22010iKP61..USA198008-198208

main55539-24010-01iKP61..USA198208-198312

BLACK

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-10020iKP61198008-198208

55579COVER, SIDE DEFROSTER OPENING, LH

main55579-10010-01iKP61..USA198008-198101

BLACK,BLACK

main55579-10010-06iKP61..USA198008-198101

LIGHT BROWN,BROWN

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10010×2iKP61198008-198208

main55650-10040-03×2iKP61198208-198312

GRAY,GRAY

main55650-10040-06×2iKP61198208-198312

BROWN,BROWN

55653REGISTER, INSTRUMENT PANEL, NO.3

main55063-12010×2iKP61198008-198208

55681SUPPORT, INSTRUMENT PANEL REGISTER, NO.1

main55682-10010iKP61..USA198008-198101

main55682-10040×2iKP61198208-198312

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main58914-22010iKP61198008-198208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-10010-01iKP61198008-198208

BLACK,BLACK

main55961-10010-06iKP61198008-198208

LIGHT BROWN,BROWN

main55961-10020-03iKP61198208-198312

GRAY,GRAY

main55961-10020-06iKP61198208-198312

BROWN,BROWN

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-10010-01iKP61198008-198208

BLACK,BLACK

main55962-10010-06iKP61198008-198208

LIGHT BROWN,BROWN

main55962-10020-03iKP61198208-198312

GRAY,GRAY

main55962-10020-06iKP61198208-198312

BROWN,BROWN

8302INDICATOR

→ Go to FIG 83-02

5568210010SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-10010

9015950029

main90159-50029

9015960066

main90159-60066

9015960070

main90159-60070

9016126007

main90161-26007

9017905095

main90179-05095

9018305003

main90183-05003

9018305094

main90183-05094

9046808008

main90468-08008

9054103007

main90541-03007

9165140614

main91651-40614

9165140625

main91651-40625

9165640616

main91656-40616

9322954008

main93229-54008

9326916016

main93269-16016

9353015012

main93530-15012

9353055012

main93530-55012

9354015014

main93540-15014

9354055014

main93540-55014

9356015012

main93560-15012

9356054014

main93560-54014

9356615512

main93566-15512

9356655512

main93566-55512

9356655516

main93566-55516

55 parts on this diagram · 2 diagrams in section
