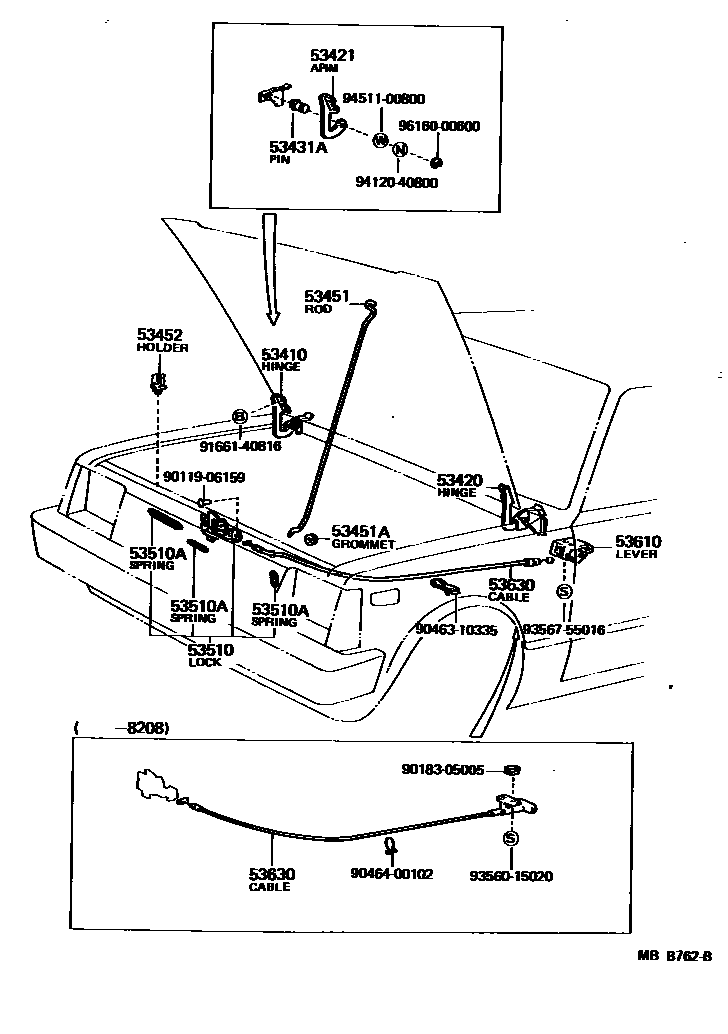

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53401-10040iKP61198008-198312

53420HINGE ASSY, HOOD, LH

main53402-10020iKP61198008-198312

53421ARM, HOOD HINGE

main53421-10010iKP61198008-198312

RH

main53422-10010iKP61198008-198312

LH

53431APIN, HOOD HINGE

main53431-10050×2iKP61198008-198312

53451ROD, HOOD SUPPORT

main53451-10021iKP61198008-198208

main53451-10022iKP61198208-198312

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-13008iKP61198008-198312

53452HOLDER, HOOD STAY

main53452-90351iKP61198008-198312

53510LOCK ASSY, HOOD

main53510-10061iKP61198008-198208

main53510-10062iKP61198208-198312

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iKP61198008-198312

WD=0.9,CW=21.25,OD=9,L=34

main90506-09009iKP61198008-198312

OD=8,L=48

main90506-18027iKP61198008-198312

OD=14,L=64

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-12010-13iKP61198208-198312

GRAY,GRAY

main53601-12010-16iKP61198208-198312

BROWN,BROWN

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10111iKP61198008-198208

main53630-10130iKP61198208-198312

9011906159

main90119-06159

9018305005

main90183-05005

9046310335

main90463-10335

9046400102

main90464-00102

9166140816

main91661-40816

9356015020

main93560-15020

9356755016

main93567-55016

9412040800

main94120-40800

9451100800

main94511-00800

9616000600

main96160-00600

21 parts on this diagram · 1 diagram in section
