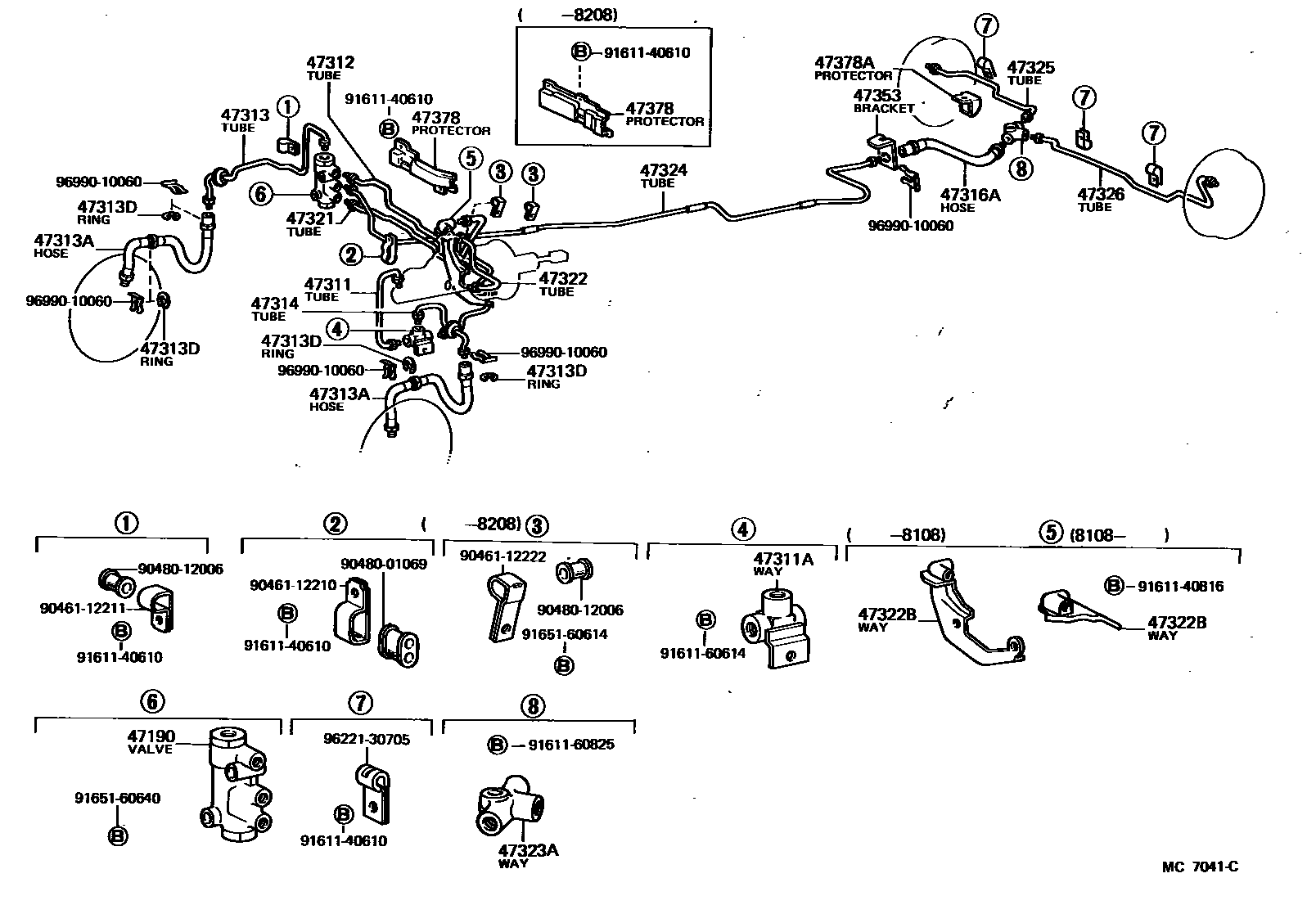

BRAKE TUBE & CLAMP

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-10030iKP61198008-198312

47311TUBE, FRONT BRAKE, NO.1

main47311-10080iKP61198008-198312

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iKP61198008-198312

47312TUBE, FRONT BRAKE, NO.2

main47312-10080iKP61198008-198208

main47312-10110iKP61198208-198312

47313TUBE, FRONT BRAKE, NO.3

main47313-10170iKP61198008-198312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02414×2iKP61198008-198312

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×4iKP61198008-198312

47314TUBE, FRONT BRAKE, NO.4

main47314-10150iKP61198008-198312

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33205iKP61198008-198312

47321TUBE, REAR BRAKE, NO.1

main47321-10070iKP61198008-198108

main47321-10090iKP61198108-198208

main47321-10130iKP61198208-198312

47322TUBE, REAR BRAKE, NO.2

main47321-10011iKP61198008-198108

main47321-10012iKP61198108-198312

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10088iKP61198008-198108

main90412-10095iKP61198108-198312

47323AWAY, NO.3(FOR REAR BRAKE TUBE)

main90413-10098iKP61198008-198312

47324TUBE, REAR BRAKE, NO.4

main47322-10030iKP61198008-198108

main47322-10050iKP61198108-198208

main47322-10070iKP61198208-198312

47325TUBE, REAR BRAKE, NO.5

main47323-10020iKP61198008-198312

47326TUBE, REAR BRAKE, NO.6

main47324-10020iKP61198008-198312

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main51681-10011iKP61198008-198312

47378PROTECTOR, BRAKE TUBE

main47378-10010iKP61198008-198208

main47378-10020iKP61198208-198312

47378APROTECTOR, BRAKE TUBE(FOR REAR)

main47378-10030iKP61198208-198312

9046112210

main90461-12210

9046112211

main90461-12211

9046112222

main90461-12222

9048001069

main90480-01069

9048012006

main90480-12006

9161140610

main91611-40610

9161140816

main91611-40816

9161160614

main91611-60614

9161160825

main91611-60825

9165160614

main91651-60614

9165160640

main91651-60640

9622130705

main96221-30705

9699010060

main96990-10060

32 parts on this diagram · 1 diagram in section
