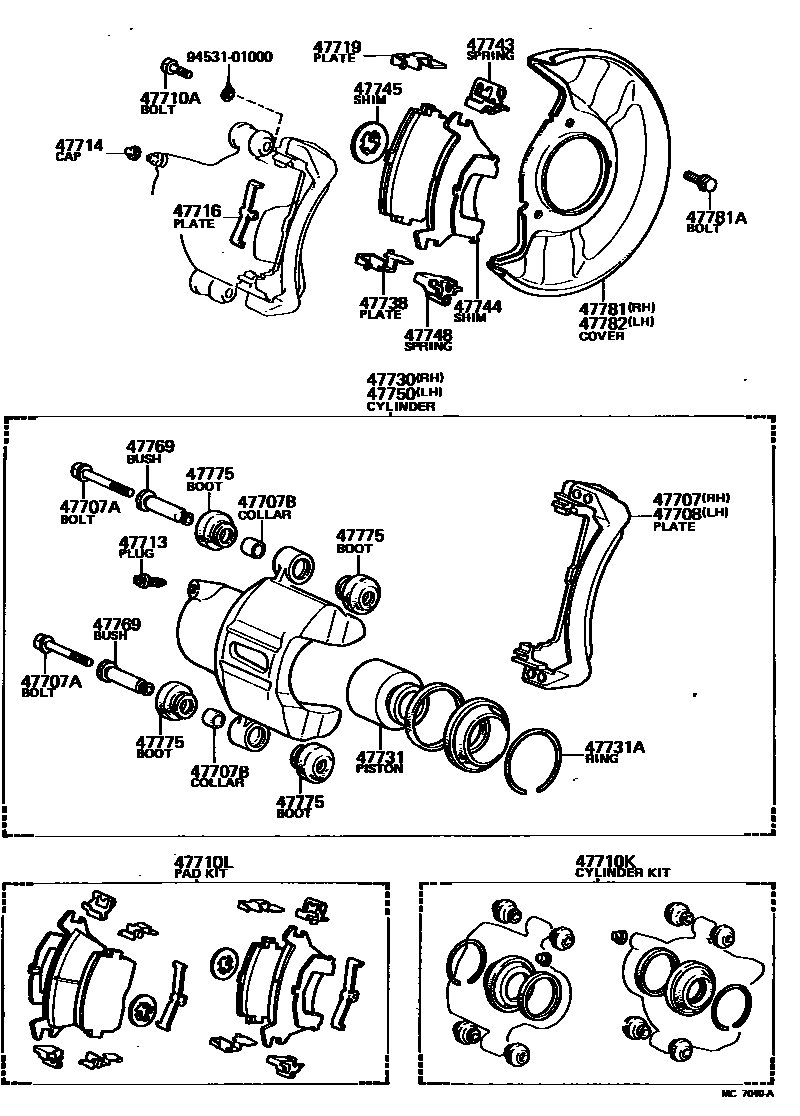

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-10020iKP61198008-198312

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08217×4iKP61198008-198312

47707BCOLLAR(FOR FRONT DISC BRAKE TORQUE PLATE)

main90387-13002×4iKP61198008-198312

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47707-10020iKP61198008-198312

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10062×4iKP61198008-198312

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-16010iKP61198008-198312

47710LPAD KIT, DISC BRAKE, FRONT

main04491-10040iKP61198008-198312

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iKP61198008-198312

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iKP61198008-198312

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-10010×2iKP61198008-198312

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-10030×2iKP61198008-198312

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10030iKP61198008-198312

47731PISTON, FRONT DISC BRAKE

main47731-12040×2iKP61198008-198312

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-56001×2iKP61198008-198312

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47738-10010×2iKP61198008-198312

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-10010×2iKP61198008-198312

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-10010×2iKP61198008-198312

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-10010×2iKP61198008-198312

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-10030×2iKP61198008-198312

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10030iKP61198008-198312

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10020×4iKP61198008-198312

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16010×8iKP61198008-198312

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10030iKP61198008-198312

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196×6iKP61198208-198312

main91611-40610×6iKP61198008-198208

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10030iKP61198008-198312

9453101000

main94531-01000

26 parts on this diagram · 2 diagrams in section
