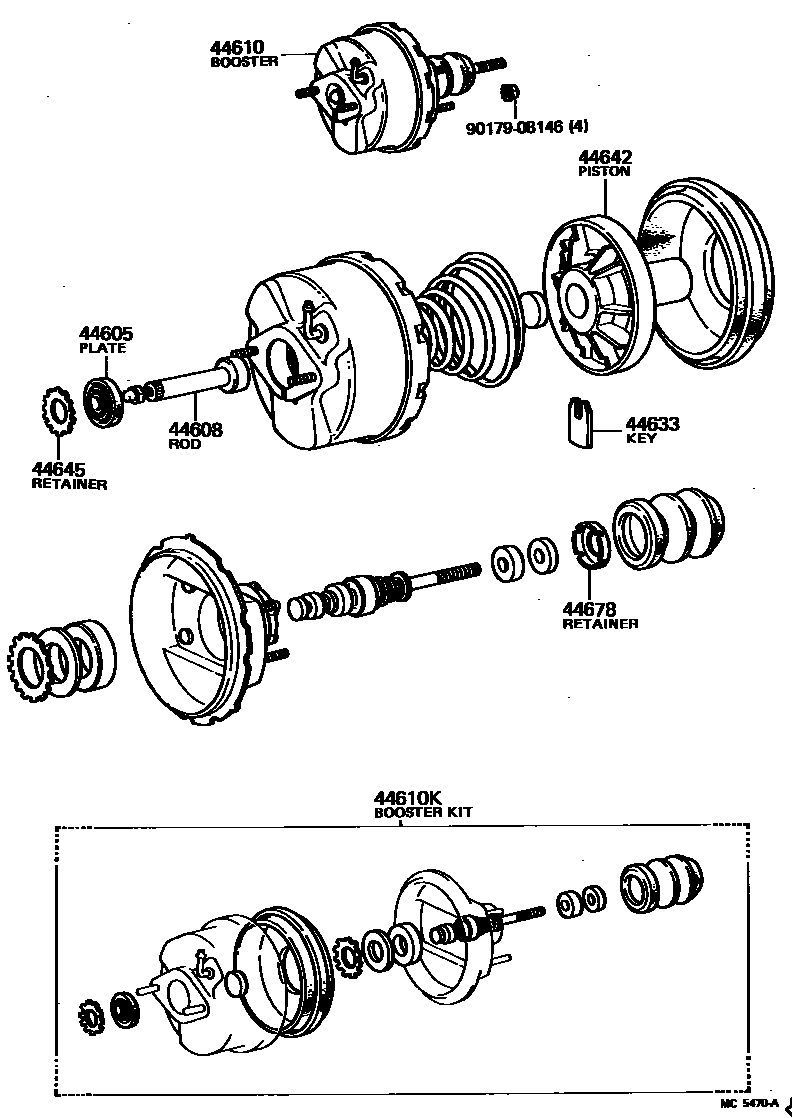

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iKP61198008-198312

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-10010iKP61198108-198312

main44608-10011iKP61198008-198108

44610BOOSTER ASSY, BRAKE

main44610-10040iKP61198008-198108

main44610-10050iKP61198108-198312

44610KBOOSTER KIT, BRAKE

main04443-10040iKP61198008-198312

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iKP61198008-198312

44642PISTON, BRAKE BOOSTER

main44642-10030iKP61198008-198312

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iKP61198008-198312

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iKP61198008-198312

9017908146

main90179-08146

9 parts on this diagram · 2 diagrams in section
