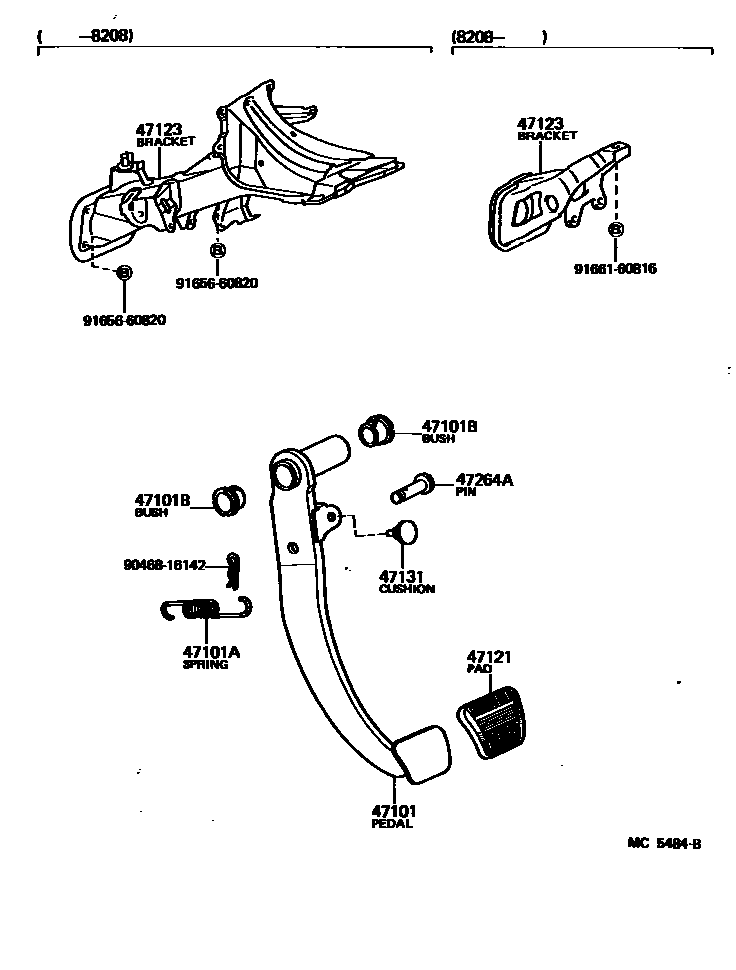

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-10120iKP61198008-198312

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16038iKP61198010-198208

main90506-16039iKP61198208-198312

main90506-16333iKP61198008-198010

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iKP61198008-198312

47121PAD, BRAKE PEDAL

main31321-14010iKP61198008-198312

47123BRACKET, BRAKE PEDAL

main55106-10100iKP61198008-198208

main55106-10180iKP61198208-198312

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iKP61198008-198312

47264APIN(FOR PUSH ROD)

main90249-08051iKP61198008-198312

9046816142

main90468-16142

9165660820

main91656-60820

9166160816

main91661-60816

10 parts on this diagram · 1 diagram in section
