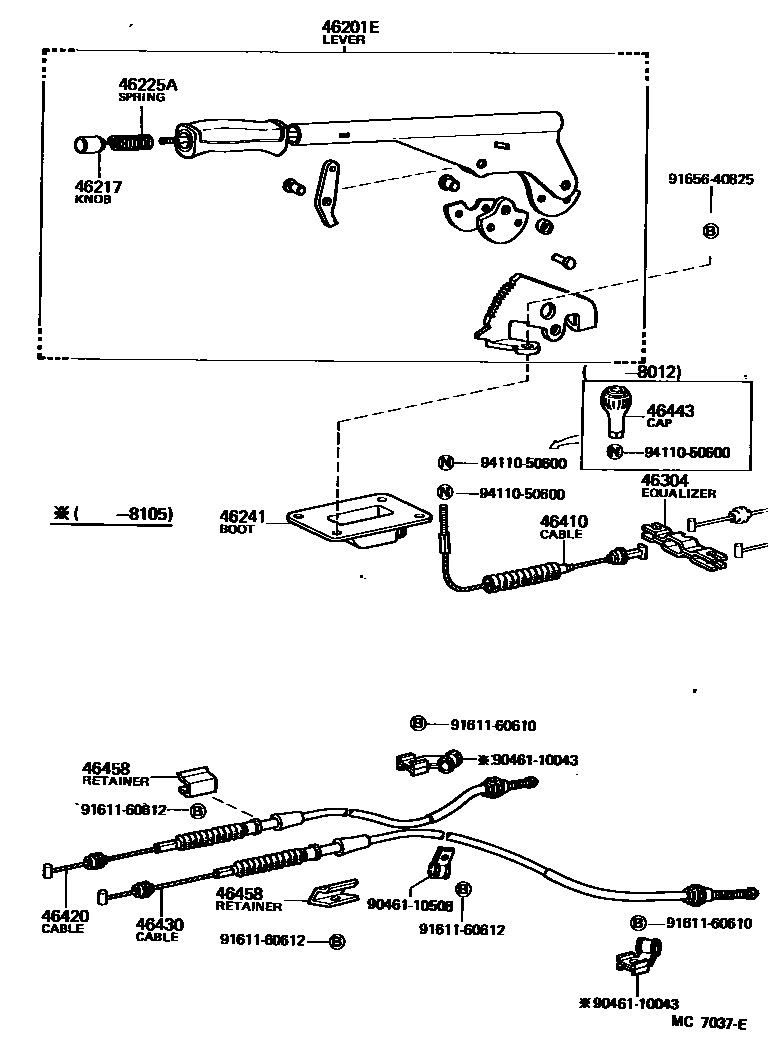

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10040-01iKP61198008-198308

BLACK,BLACK

main46201-10040-06iKP61198012-198208

LIGHT BROWN,BROWN

main46201-10041-01iKP61198308-198312

BLACK

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iKP61198008-198312

BLACK,BLACK

main46217-10020-06iKP61198012-198208

LIGHT BROWN,BROWN

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iKP61198008-198312

46241BOOT, PARKING BRAKE LEVER

main46241-10021iKP61198008-198308

main46241-10022iKP61198308-198312

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iKP61198008-198312

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10030iKP61198008-198312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-10070iKP61198008-198105

main46420-10071iKP61198105-198312

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-10060iKP61198008-198105

main46430-10061iKP61198105-198312

46443CAP, CABLE ADJUSTING

main46443-12020iKP61198008-198012

46458RETAINER, CABLE

main46458-20020×2iKP61198008-198312

9046110043

main90461-10043

9046110508

main90461-10508

9161160610

main91611-60610

9161160612

main91611-60612

9165640825

main91656-40825

9411050600

main94110-50600

16 parts on this diagram · 1 diagram in section
