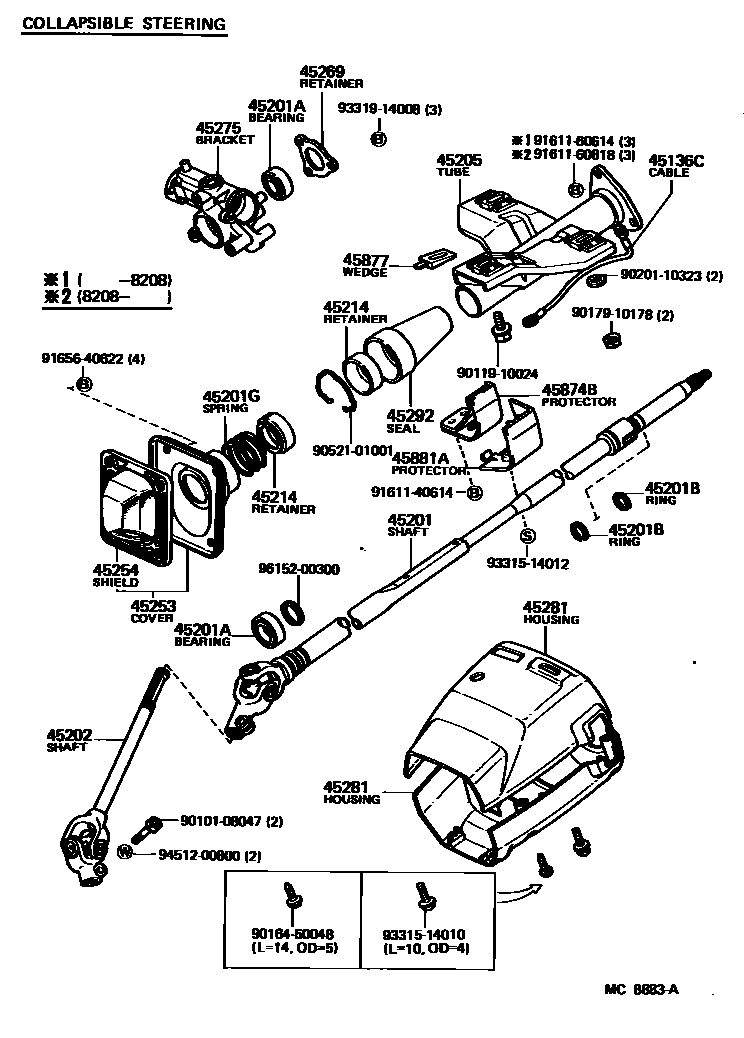

STEERING COLUMN & SHAFT

0001 1 0002 1

45136CCABLE, BOND(FOR HORN EARTH)

main90980-07129iKP61198008-198208

main90980-07204iKP61198208-198312

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-10020iKP61198008-198208

main45210-10040iKP61198208-198308

main45210-10041iKP61198308-198312

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iKP61198008-198312

UPR

main90363-30015iKP61198008-198312

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iKP61198008-198312

T=1.20,T=1.2

main90520-17196×2iKP61198008-198312

T=1.35-1.45,T=1.4

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-32003iKP61198008-198312

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-10030iKP61198008-198308

main45202-10031iKP61198308-198312

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10040iKP61198008-198208

main45205-10120iKP61198208-198312

45214RETAINER, MAIN SHAFT SPRING

main45214-10010×2iKP61198008-198312

45253COVER, STEERING COLUMN HOLE

main45025-10020iKP61198008-198312

45254SHIELD, STEERING COLUMN HOLE

main45254-10021iKP61198008-198312

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iKP61198008-198312

45275BRACKET, STEERING COLUMN, UPPER

main45275-16010iKP61198008-198208

main45280-10030iKP61198208-198312

45281HOUSING, STEERING COLUMN

main45286-10100-01iKP61198208-198312

UPR,BLACK,BLACK

main45286-10100-06iKP61198208-198312

UPR,BROWN,BROWN

main45286-16010-01iKP61198008-198208

UPR,BLACK,BLACK

main45286-16010-06iKP61198008-198208

UPR,LIGHT BROWN,BROWN

main45287-10050-01iKP61198008-198208

LWR,BLACK,BLACK

main45287-10050-06iKP61198008-198208

LWR,LIGHT BROWN,BROWN

main45287-10080-01iKP61198208-198312

LWR,BLACK,BLACK

main45287-10080-06iKP61198208-198312

LWR,BROWN,BROWN

45292SEAL, MAIN SHAFT LOWER DUST

main45292-10010iKP61198008-198312

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-10010iKP61198208-198312

45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)

main45877-12010iKP61198008-198312

45881APROTECTOR, STEERING COLUMN, NO.2

main45881-10010iKP61198208-198312

9010108047

main90101-08047

9011910024

main90119-10024

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9052101001

main90521-01001

9161140614

main91611-40614

9161160614

main91611-60614

9161160818

main91611-60818

9165640622

main91656-40622

9331514010

main93315-14010

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

9615200300

main96152-00300

32 parts on this diagram · 2 diagrams in section
