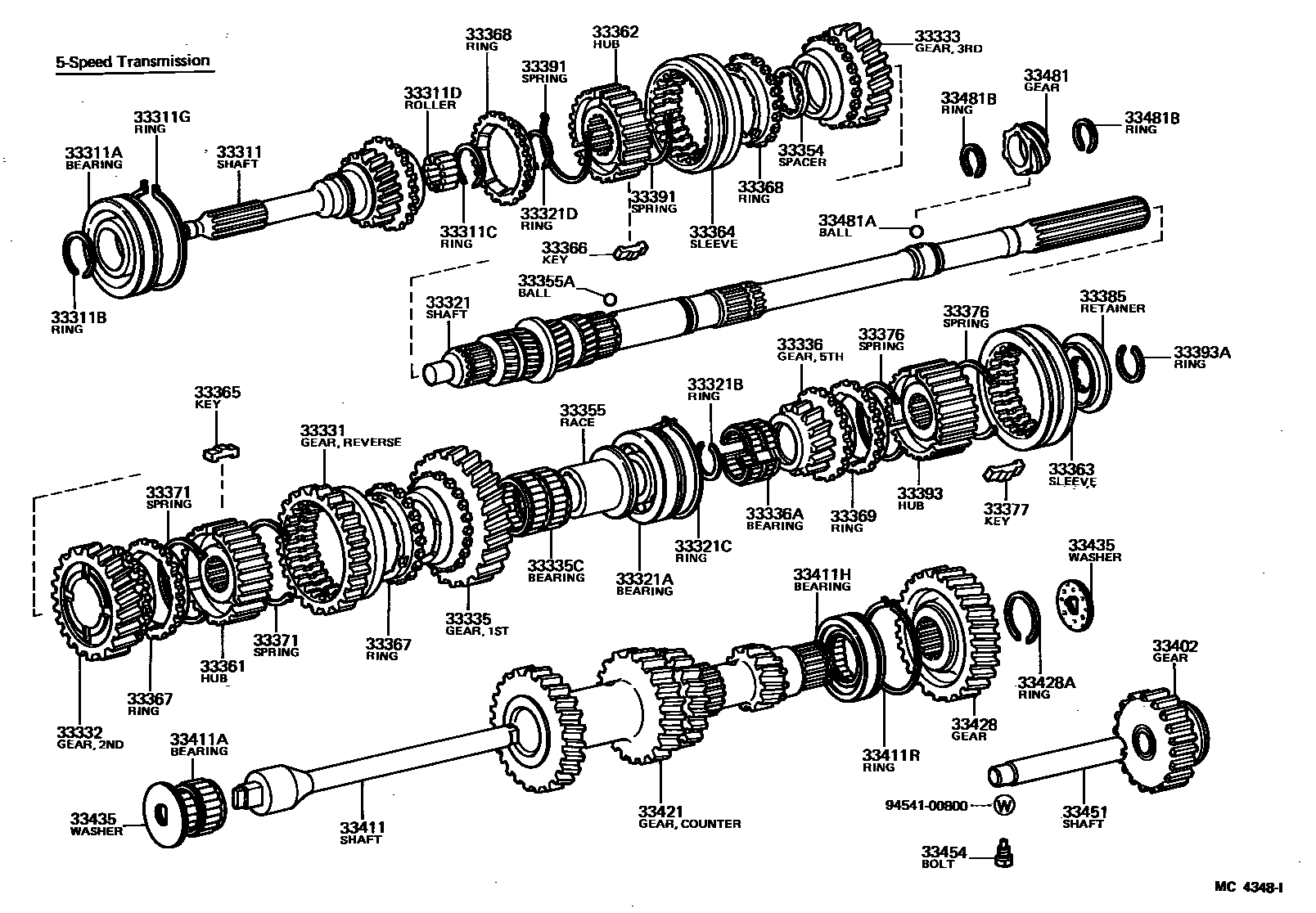

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.45-2.5,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.05-2.10,T=2.05-2.10
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.05-2.10,T=2.05-2.10
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33331GEAR, REVERSE
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33354SPACER, CLUTCH HUB
T=4.30-4.35
T=4.35-4.40
T=4.40-4.45
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST
2ND
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.45-2.5,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
T=2.70-2.75,T=2.70-2.75
T=2.75-2.80,T=2.75-2.80
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.05-2.10,T=2.05-2.10
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33402GEAR SUB-ASSY, REVERSE IDLER
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33421GEAR, COUNTER
33428GEAR, COUNTERSHAFT 5TH
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.25-2.35
T=2.35-2.45
T=2.45-2.55
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=1.71-1.81,RR
T=1.83-1.93,RR
T=1.95-2.05,RR
FR
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=7
N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9454100800
main94541-00800
52 parts on this diagram · 2 diagrams in section
