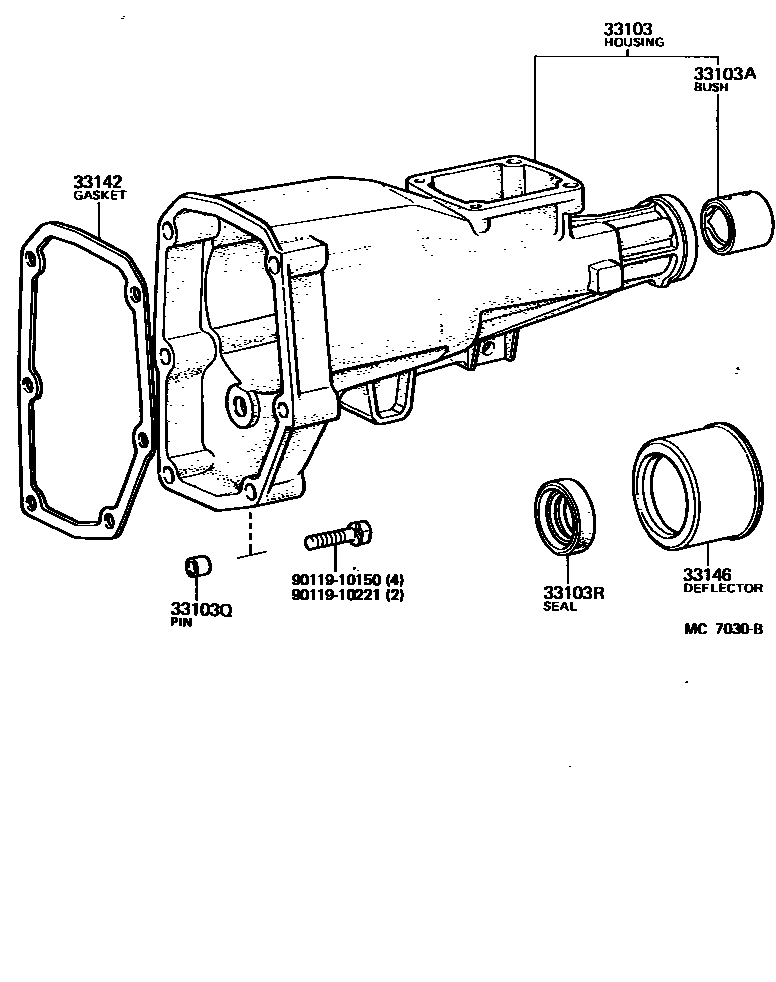

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-10042iKP61198008-198312

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72024iKP61198008-198312

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017×2iKP61198008-198312

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iKP61198109-198312

main90311-32086iKP61198008-198109

33142GASKET, EXTENSION HOUSING(MTM)

main33142-10021iKP61198008-198312

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iKP61198008-198312

9011910150

main90119-10150

9011910221

main90119-10221

8 parts on this diagram · 1 diagram in section
