TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

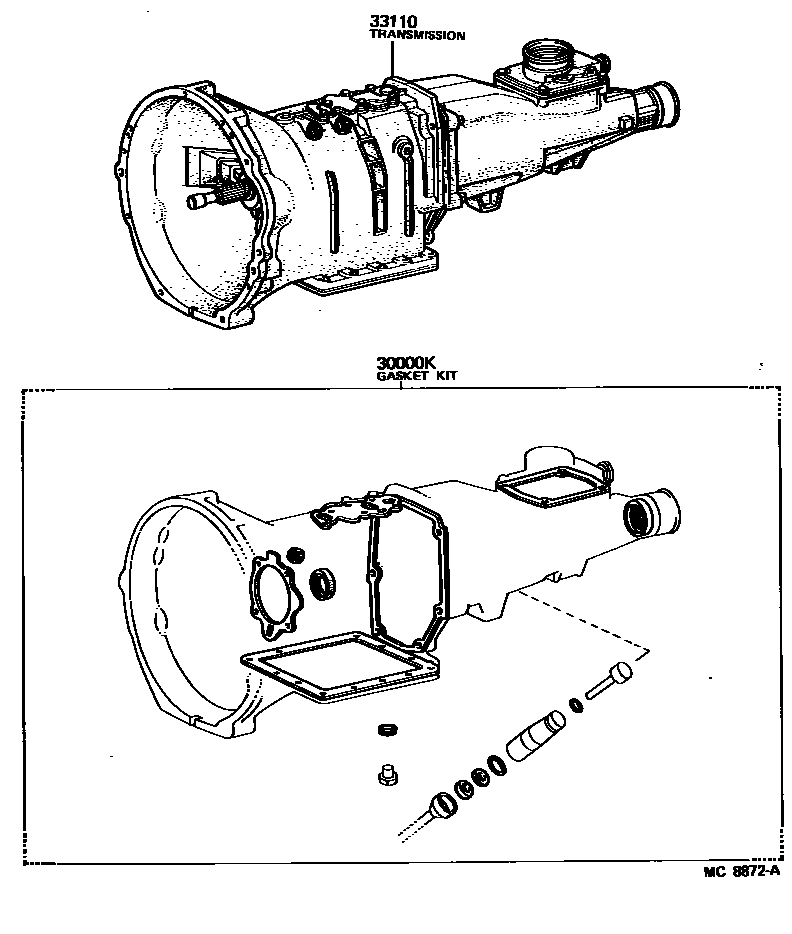

Parts diagram

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-10021i198008-198312

33110TRANSMISSION ASSY, MANUAL

main33030-10170i198008-198208

main33030-10190i198208-198312

main33030-10240i198208-198312

2 parts on this diagram · 1 diagram in section
