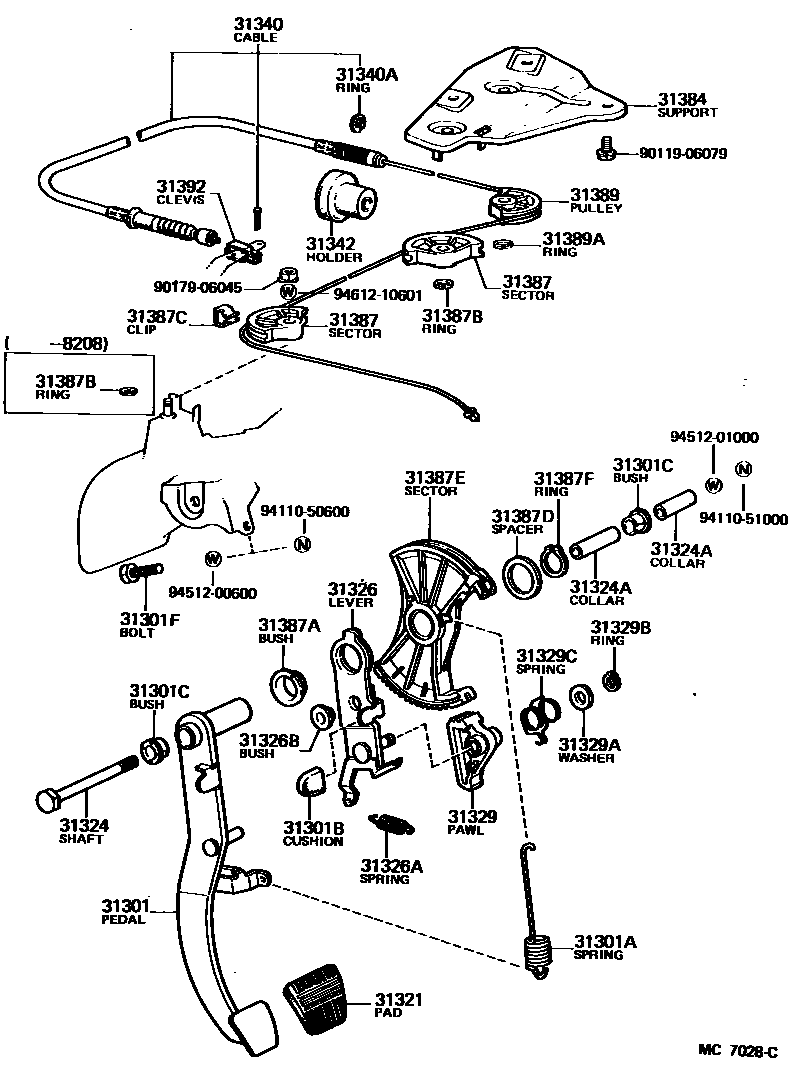

CLUTCH PEDAL & FLEXIBLE HOSE

31301PEDAL SUB-ASSY, CLUTCH

main31301-10120iKP61198008-198208

main31301-10150iKP61198208-198312

31301ASPRING(FOR CLUTCH PEDAL)

main90506-23015iKP61198008-198312

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10030iKP61198008-198312

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iKP61198008-198312

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-06400iKP61198008-198312

31321PAD, CLUTCH PEDAL

main31321-14010iKP61198008-198312

31324SHAFT, CLUTCH PEDAL

main90101-10097iKP61198208-198312

main90101-10380iKP61198008-198208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10021iKP61198008-198312

L=45

main90387-10043iKP61198008-198208

L=58.3

main90387-10052iKP61198208-198312

L=64.3

31326LEVER SUB-ASSY, CLUTCH RELEASE

main31302-10020iKP61198008-198312

31326ASPRING(FOR CLUTCH RELEASE LEVER)

main90506-10021iKP61198008-198312

31326BBUSH(FOR CLUTCH RELEASE LEVER)

main90386-08123iKP61198008-198312

31329PAWL, CLUTCH PEDAL

main31329-10010iKP61198008-198312

31329AWASHER(FOR CLUTCH PEDAL PAWL)

main90201-10292iKP61198008-198312

31329BRING, E(FOR CLUTCH PEDAL PAWL)

main96160-00900iKP61198008-198312

31329CSPRING(FOR CLUTCH PEDAL PAWL)

main90508-08009iKP61198008-198312

31340CABLE ASSY, CLUTCH RELEASE

main31340-19245iKP61198008-198208

main31340-19275iKP61198208-198312

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iKP61198008-198312

31342HOLDER, CLUTCH CABLE, INNER

main31342-12901iKP61198008-198312

31384SUPPORT ASSY, CLUTCH RELEASE SECTOR

main31039-10031iKP61198008-198208

main31039-10041iKP61198208-198312

31387SECTOR, CLUTCH RELEASE

main31387-10010iKP61198008-198312

PEDAL SIDE

main31387-10050iKP61198008-198312

PULLEY SIDE

31387ABUSH(FOR CLUTCH RELEASE SECTOR)

main90389-23001iKP61198008-198312

31387BRING, E(FOR CLUTCH RELEASE SECTOR)

main96160-00800×2iKP61198008-198312

31387CCLIP(FOR CLUTCH RELEASE SECTOR)

main90468-06008×2iKP61198008-198312

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

main90560-23004iKP61198008-198312

31387ESECTOR, CLUTCH RELEASE

main31387-10040iKP61198008-198312

31387FRING, SNAP

main96150-02200iKP61198008-198312

31389PULLEY, CLUTCH RELEASE

main31387-10060iKP61198008-198312

31389ARING, E(FOR CLUTCH RELEASE PULLEY)

main96160-00800iKP61198008-198312

31392CLEVIS, CLUTCH CABLE

main31392-10010iKP61198008-198312

9011906079

main90119-06079

9017906045

main90179-06045

9411050600

main94110-50600

9411051000

main94110-51000

9451200600

main94512-00600

9451201000

main94512-01000

9461210601

main94612-10601

36 parts on this diagram · 1 diagram in section
