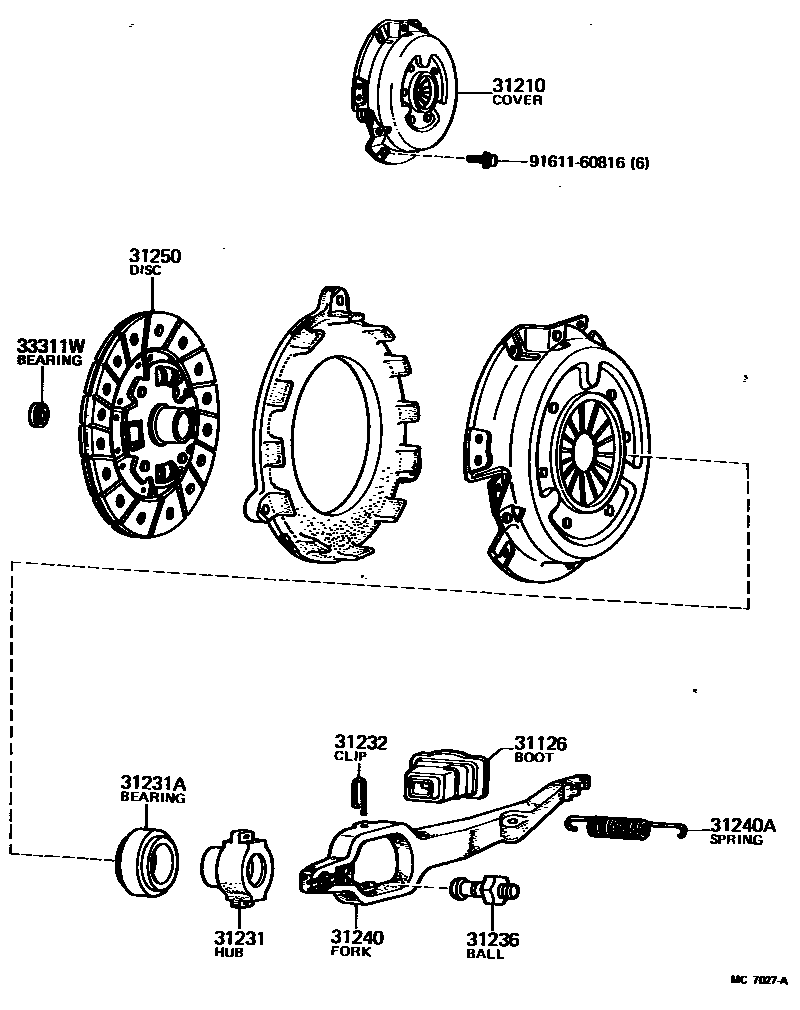

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12040iKP61198008-198312

31210COVER ASSY, CLUTCH

main31210-12052iKP61198008-198208

main31210-16030iKP61198208-198308

main31210-16031iKP61198308-198312

31231HUB, CLUTCH RELEASE BEARING

main31231-12033iKP61198008-198312

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33003iKP61198008-198204

main90363-33004iKP61198204-198312

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2iKP61198008-198312

31236BALL, RELEASE FORK

main31236-30030iKP61198008-198312

31240FORK ASSY, CLUTCH RELEASE

main31204-12031iKP61198008-198312

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iKP61198008-198312

31250DISC ASSY, CLUTCH

main31250-10050iKP61198208-198312

main31250-12021iKP61198008-198012

main31250-12070iKP61198012-198208

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKP61198010-198312

main97123-06001iKP61198008-198010

6001 ZZ C3

9161160816

main91611-60816

11 parts on this diagram · 1 diagram in section
