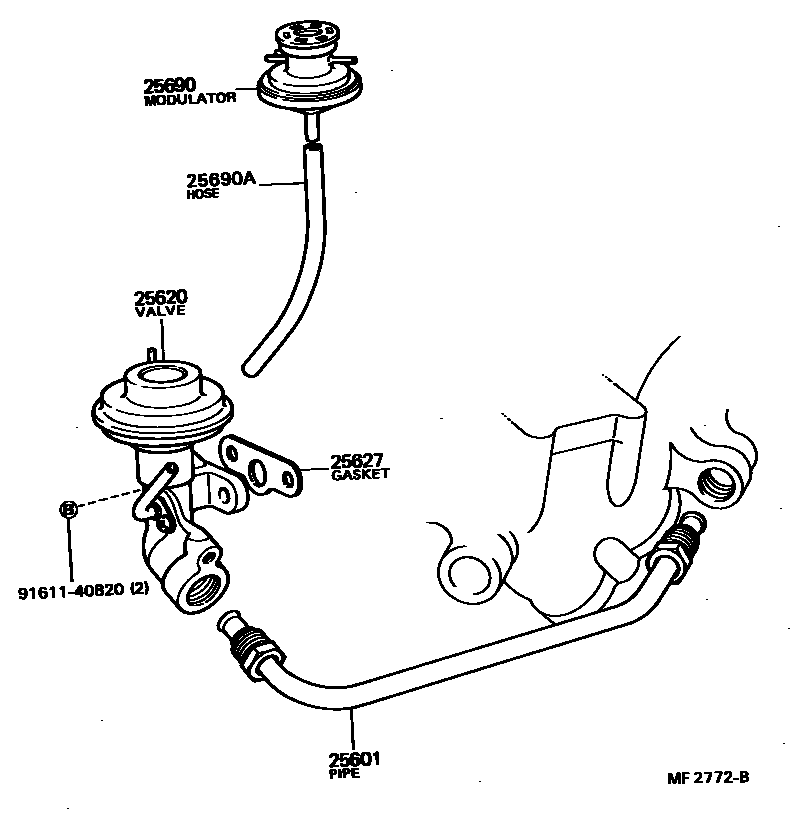

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13010i4KC..KP61198008-198208

25620VALVE ASSY, EGR

main25620-13090i4KC..KP61198008-198108

main25620-13091i4KC..KP61198108-198208

main25620-13100i4KC..KP61..USA198008-198108

CALIFORNIA SPEC

25627GASKET, EGR VALVE

main25627-13010i4KC..KP61198008-198208

25690MODULATOR ASSY, EGR VACUUM

main25870-13010i4KC..KP61198008-198208

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11026i4KC..KP61198008-198208

9161140820

main91611-40820

6 parts on this diagram · 1 diagram in section
