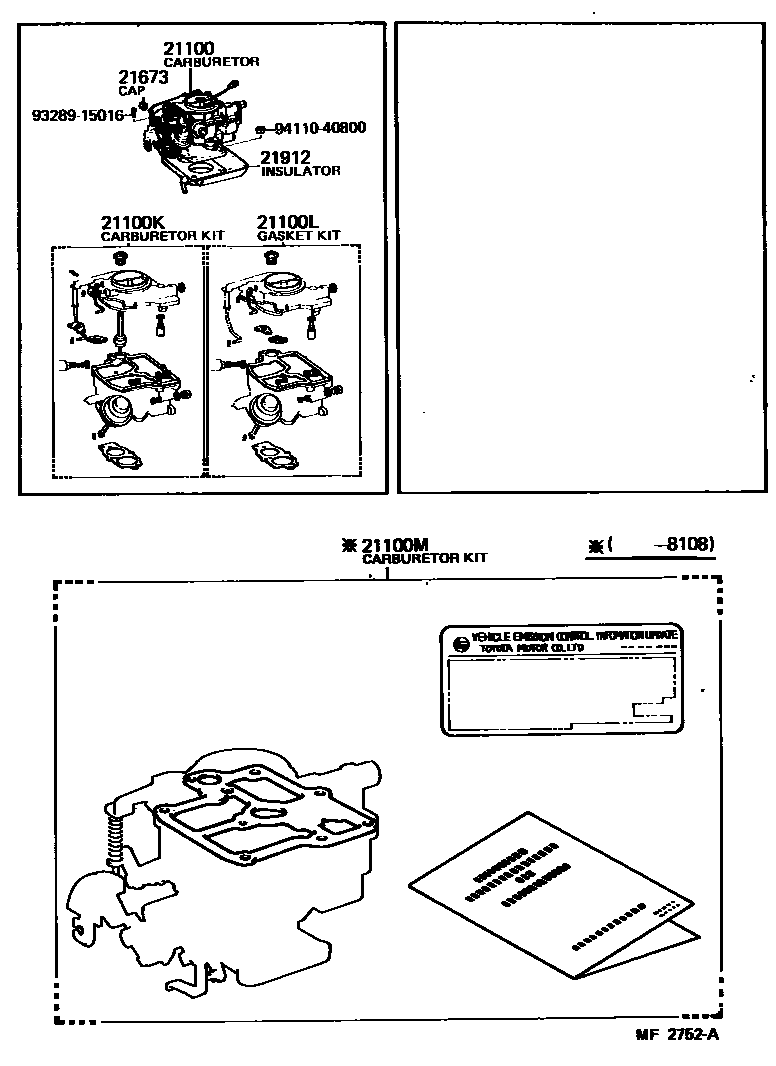

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-13210i4KC..KP61..USA198008-198108

main21100-13230i4KC..KP61..USA198008-198108

CALIFORNIA SPEC

main21100-13231i4KC..KP61..USA198108-198201

CALIFORNIA SPEC

main21100-13233i4KC..KP61..USA198201-198208

CALIFORNIA SPEC

main21100-13240i4KC..KP61..CND198008-198108

main21100-13360i4KC..KP61198108-198201

main21100-13361i4KC..KP61198201-198208

21100KCARBURETOR KIT

main04211-13150i4KC..KP61198008-198108

main04211-13151i4KC..KP61198108-198201

main04211-13250i4KC..KP61198201-198208

21100LGASKET KIT, CARBURETOR

main04212-13022i4KC..KP61198008-198108

main04212-13050i4KC..KP61198108-198208

21100MCARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION

main04214-13010i4KC..KP61198008-198108

W/HAC

main04214-13020i4KC..KP61198008-198108

main04214-13030i4KC..KP61198008-198108

CALIFORNIA SPEC

21673CAP, IDLE LIMIT

main21673-38020i4KC..KP61..CND198008-198208

21912INSULATOR, CARBURETOR HEAT

main21912-13040i4KC..KP61..USA198008-198108

COLD,HIGH ALTITUDE SPEC

main21912-13050i4KC..KP61; 4KC..KP61..USA198108-198112

COLD,HIGH ALTITUDE SPEC

main21912-13051i4KC..KP61; 4KC..KP61..USA198112-198208

COLD,HIGH ALTITUDE SPEC

main21912-24072i4KC..KP61198008-198108

9328915016

main93289-15016

9411040800

main94110-40800

8 parts on this diagram · 1 diagram in section
