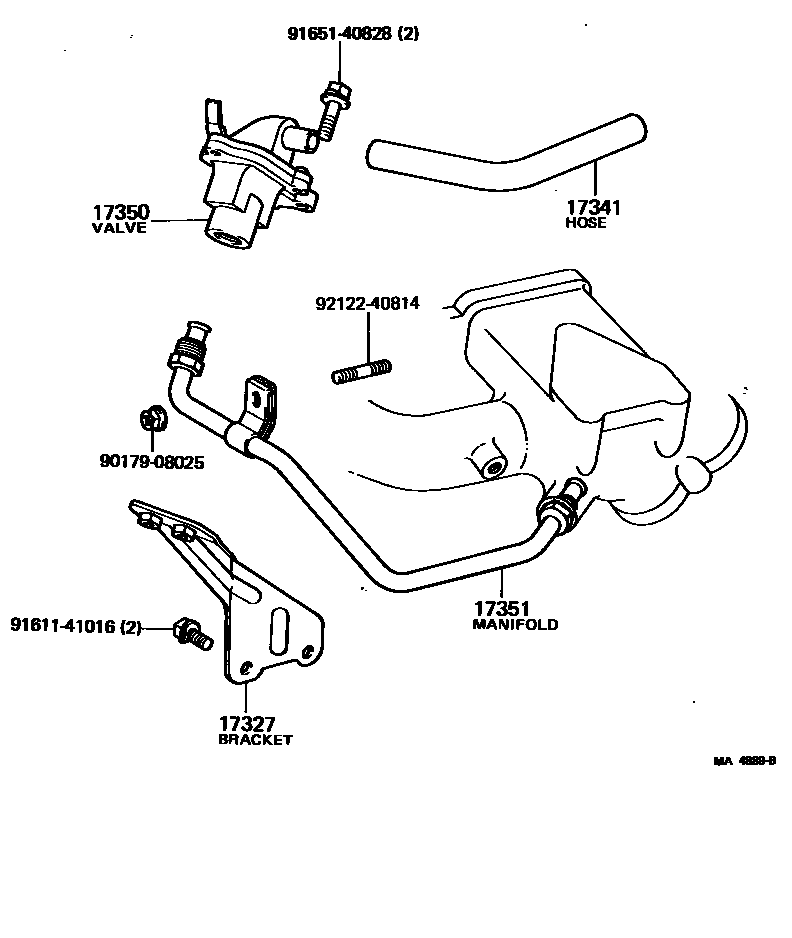

MANIFOLD AIR INJECTION SYSTEM

17327BRACKET, REED VALVE

main17327-13010i4KC..KP61198008-198108

main17327-13011i4KC..KP61198108-198208

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main90910-05154i4KC..KP61198008-198208

17350VALVE ASSY, REED

main17350-13030i4KC..KP61198008-198208

17351MANIFOLD, AIR INJECTION

main17306-13011i4KC..KP61198008-198208

9017908025

main90179-08025

9161141016

main91611-41016

9165140828

main91651-40828

9212240814

main92122-40814

8 parts on this diagram · 1 diagram in section
