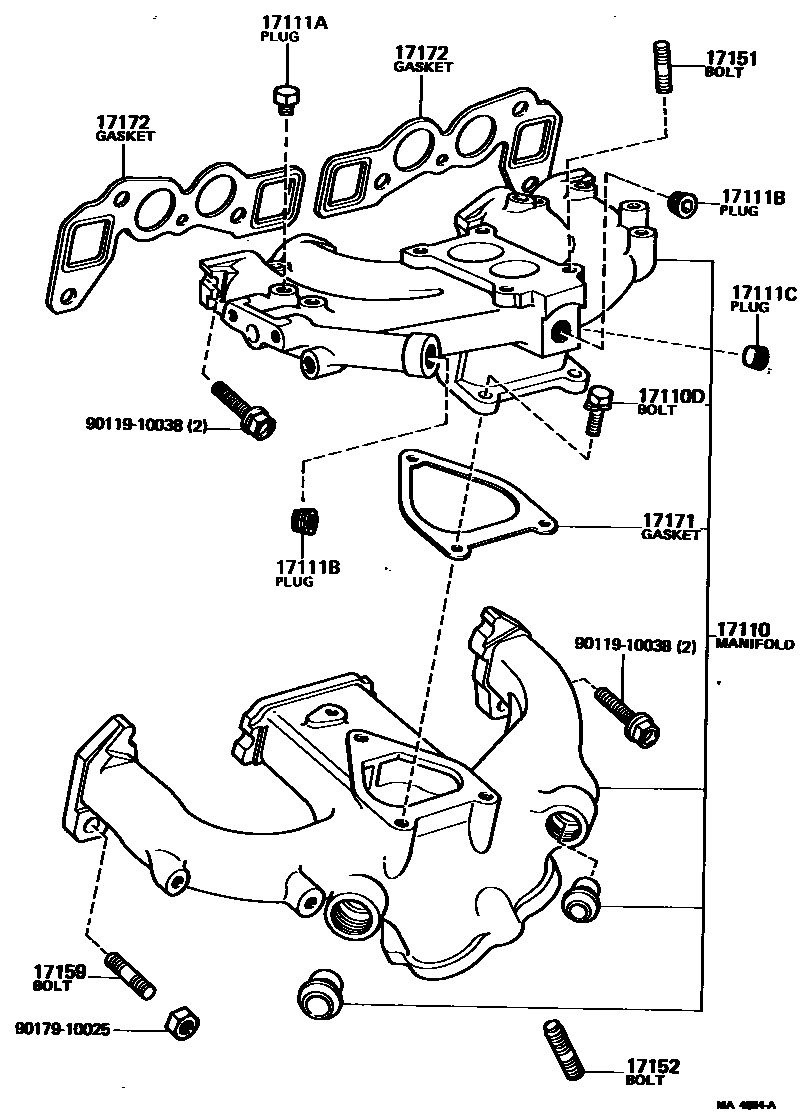

MANIFOLD
17110MANIFOLD ASSY
17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111APLUG, NO.1
17111BPLUG, NO.2
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=39,S=13&13
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17171GASKET, INTAKE TO EXHAUST MANIFOLD
17172GASKET, MANIFOLD TO CYLINDER HEAD
9011910038
main90119-10038
9017910025
main90179-10025
12 parts on this diagram · 2 diagrams in section
