ENGINE OVERHAUL GASKET KIT

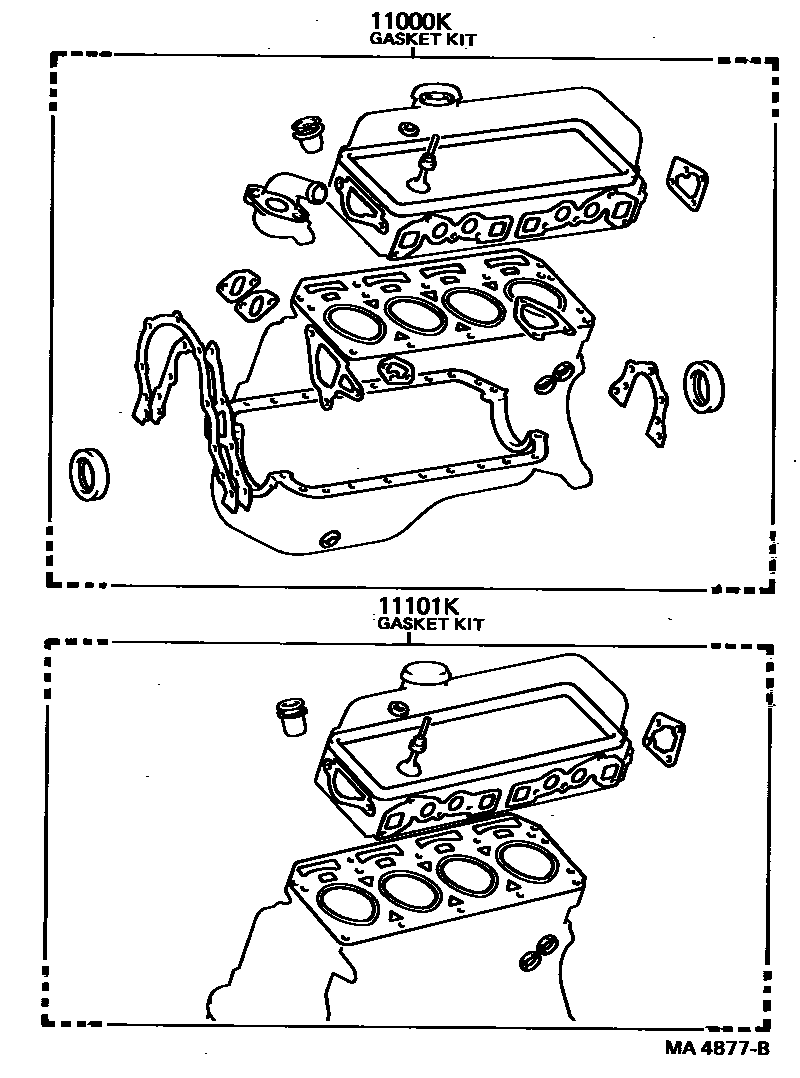

Parts diagram
11000KGASKET KIT, ENGINE OVERHAUL
main04111-13023i198008-198101
sub04111-13024
main04111-13024i198101-198102
sub04111-13025
main04111-13025i198102-198105
sub04111-13026
main04111-13026i198105-198108
sub04111-13030
main04111-13030i198108-198211
sub04111-13031
main04111-13031i198211-198308
sub04111-13034
main04111-13032i198308-198312
sub04111-13033
11101KGASKET KIT, ENGINE VALVE GRIND
main04112-13011i198108-198211
sub04112-13012
main04112-13012i198211-198312
sub04112-13013
main04112-24043i198008-198101
sub04112-24044
main04112-24044i198101-198102
sub04112-24045
main04112-24045i198102-198108
sub04112-13011

2 parts on this diagram · 1 diagram in section
