HEATING & AIR CONDITIONING - COOLER UNIT

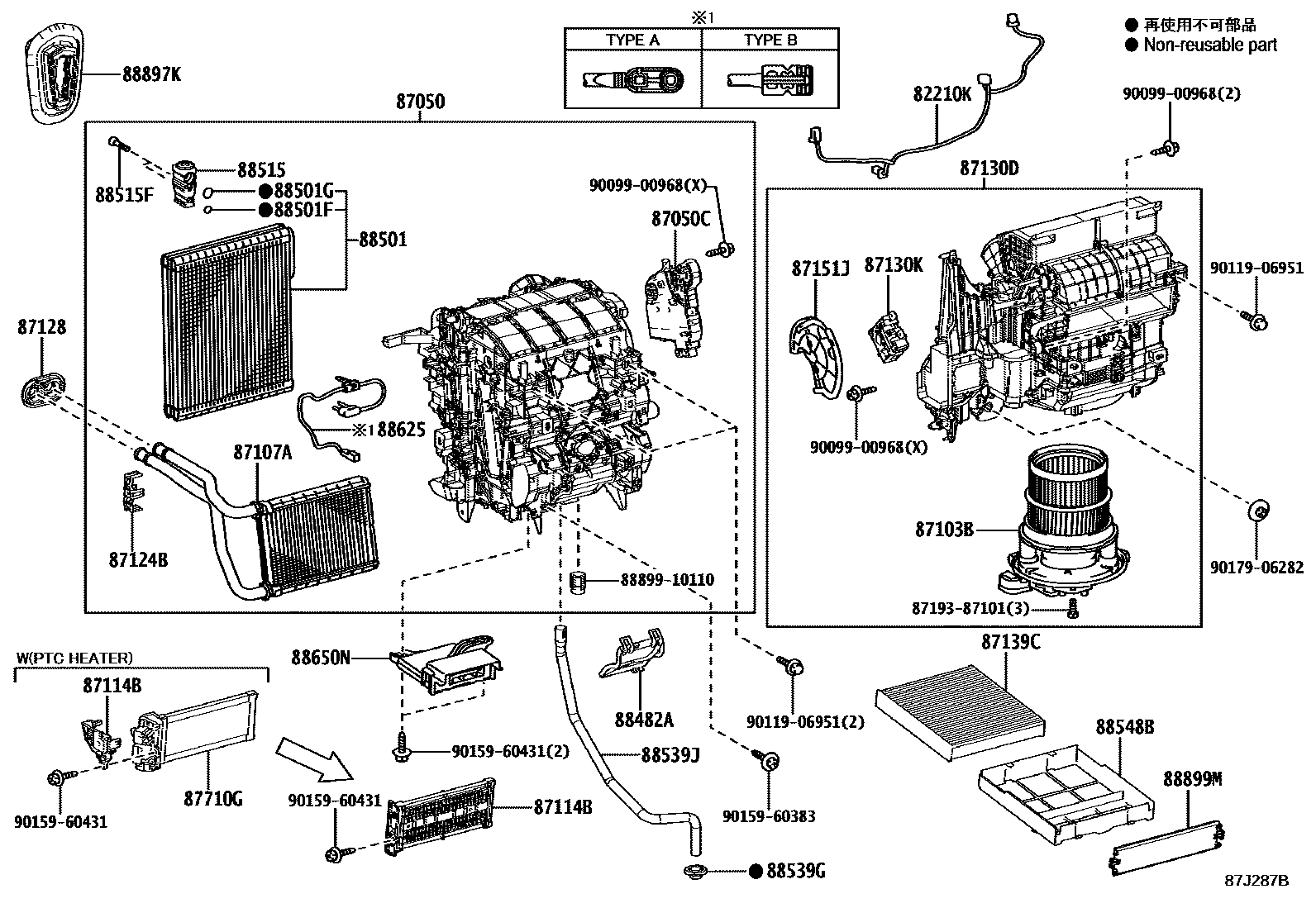

Parts diagram

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0W010i202008-202404

main82212-52110i202404

main82212-52130i202404

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52590supersedes 87050-52710i202410

main87050-52640supersedes 87050-K0460i202008-202404

INDONESIA SPEC; KENYA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; THAILAND SPEC

main87050-52A70supersedes 87050-52A60i202412

main87050-K0400supersedes 87050-K0390i202008-202404

ARGENTINA SPEC; CHILE SPEC; COSTA RICA SPEC; GUATEMALA SPEC; MEXICO SPEC; NEW CALEDONIA SPEC; PERU SPEC; PHILIPPINES SPEC; TAIWAN SPEC; URUGUAY SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42240i202404

main87106-48170i202008-202404

main87106-F4010i202008-202404

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0W030i202205-202302

main87103-0W040i202302-202307

main87103-33170i202404

main87103-52170i202404

main87103-52280i202201-202303

main87103-K0030i202008-202204

main87103-K0080i202008-202201

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52080i202412

main87107-K0020i202008-202404

main87107-K0030i202404

87114BCOVER, HEATER

main87114-K0060i202008-202404

main87114-48140i202404-202505

COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)

main87114-K0100i202008-202404

COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)

87124BCLAMP, HEATER

main87124-33070i202412

main87124-F4010i202008-202404

87128GROMMET, HEATER

main87128-28010i202404

87130DBLOWER ASSY

main87130-0W010i202205-202307

main87130-52250i202404

main87130-52300i202201-202303

main87130-52330i202412

main87130-K0070i202307-202404

main87130-K0100i202303-202404

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-33320i202404

main87106-52200i202404

main87106-52220i202211-202404

main87106-K0040i202008-202404

main87106-K0070i202008-202210

87139CFILTER, CLEAN AIR

main87139-28020i202008-202404

POLLEN FILTER

main87139-58010i202412

DEODORANT FILTER

main87139-V2010i202412

MICRO DUST FILTER

87151JPLATE, DAMPER NO.1

main87106-0D600i202008-202404

main87106-52180i202008-202404

87710GQUICK HEATER ASSY

main87710-52110i202404-202505

COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)

88482ACOVER

main87114-K0070i202412

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52150i202410

main88501-52170supersedes 88501-K0080i202008-202404

INDONESIA SPEC; KENYA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; THAILAND SPEC

main88501-K0070i202404

main88501-0D600supersedes 88501-K0060i202008-202404

ARGENTINA SPEC; CHILE SPEC; COSTA RICA SPEC; GUATEMALA SPEC; MEXICO SPEC; NEW CALEDONIA SPEC; PERU SPEC; PHILIPPINES SPEC; TAIWAN SPEC; URUGUAY SPEC

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14037i202008-202404

ID=10.8,OD=15.6

main90099-14120i202404

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14038i202008-202404

ID=13.4,OD=18.2

main90099-14121i202008-202404

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110i202410

main88515-52120supersedes 88515-52140i202008-202404

INDONESIA SPEC; KENYA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; THAILAND SPEC

main88515-52130i202404

main88515-0D540supersedes 88515-0D560i202008-202404

ARGENTINA SPEC; CHILE SPEC; COSTA RICA SPEC; GUATEMALA SPEC; MEXICO SPEC; NEW CALEDONIA SPEC; PERU SPEC; PHILIPPINES SPEC; TAIWAN SPEC; URUGUAY SPEC

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2i202404

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010i202404

88539JHOSE, DRAIN COOLER

main88539-52090i202412

main88539-K0020i202008-202404

main88539-K0030i202008-202404

88548BCASE, AIR FILTER

main88899-47090i202008-202404

88625THERMISTOR, COOLER, NO.1

main88620-28050i202412

main88620-28060i202008-202404

main88620-02130supersedes 88620-0D220i202008-202404

ARGENTINA SPEC; CHILE SPEC; COSTA RICA SPEC; GUATEMALA SPEC; MEXICO SPEC; NEW CALEDONIA SPEC; PERU SPEC; PHILIPPINES SPEC; TAIWAN SPEC; TYPE A:REFER ILLUST.; URUGUAY SPEC

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52C70i202008-202404

main88650-52F40i202404

88897KGROMMET, (FOR COOLER PIPE)

main88899-K0010i202008-202404

main88899-K0020i202008-202404

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120i202412

8719387101

main87193-87101

8889910110COVER, EVAPORATOR

main88899-10110

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

33 parts on this diagram · 2 diagrams in section
