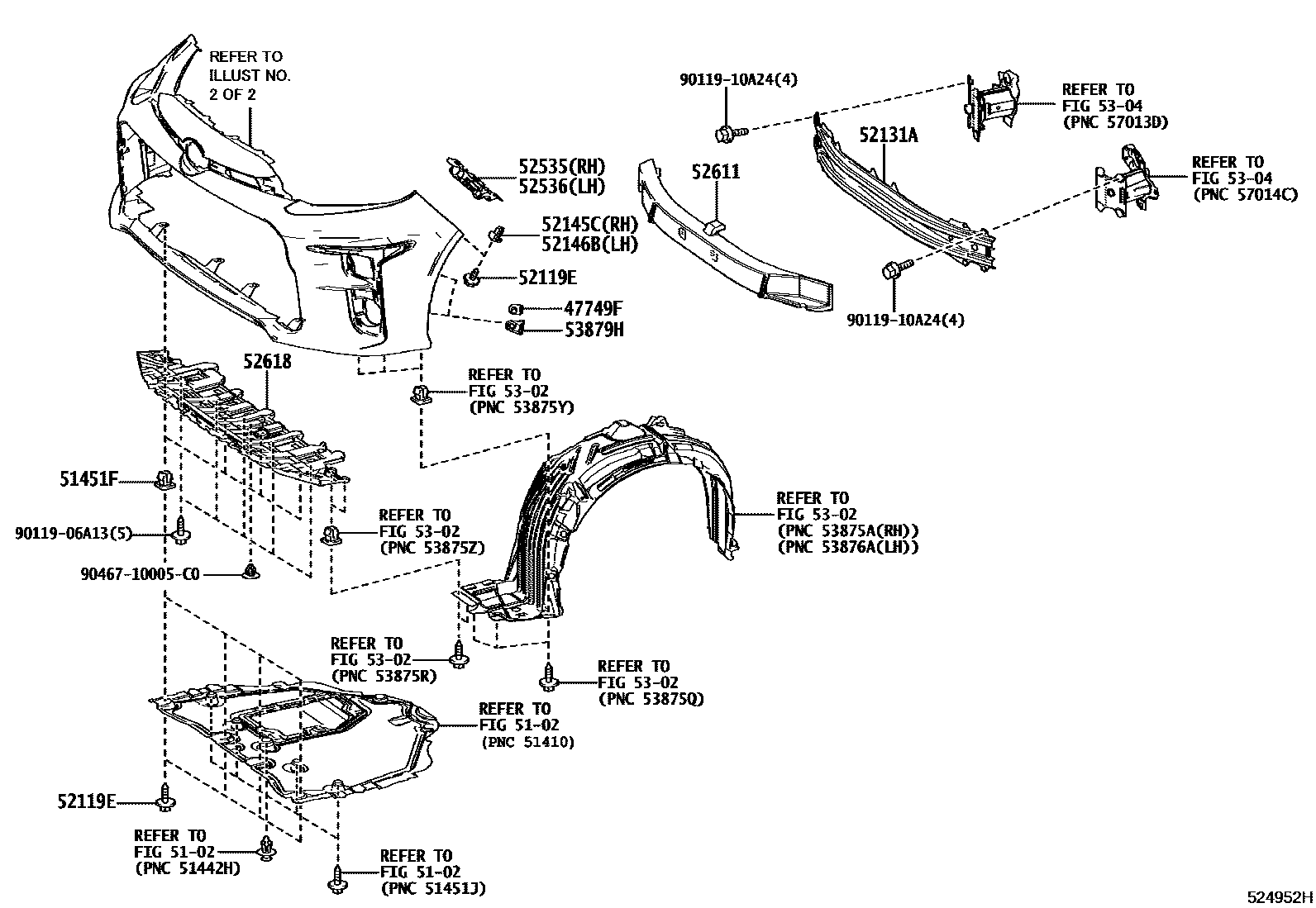

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-30090iGXPA16202212-202404

main47749-33030iGXPA16202008-202211

5102

51451FGROMMET, NO.1

main90189-06237iGXPA16..ARL,EUR202008-202404

52119ESCREW, NO.2

main90159-60477iGXPA16202008-202404

52131AREINFORCEMENT, FRONT BUMPER

main52131-52320iGXPA16..CHI202412

main52131-52330iGXPA16202008-202404

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iGXPA16202008-202404

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iGXPA16202008-202404

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52220iGXPA16202008-202404

main52535-52260iGXPA16..ARL,EUR202404

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52210iGXPA16202008-202404

main52536-52230iGXPA16..ARL,EUR202404

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-K0030iGXPA16202008-202404

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52160iGXPA16202008-202404

5302

5304

53879HRETAINER, FRONT FENDER LINER

main53879-30090iGXPA16202212-202404

main53879-33030iGXPA16202008-202211

9011906A13

main90119-06A13

9011910A24

main90119-10A24

9046710005C0

main90467-10005C0

17 parts on this diagram · 4 diagrams in section
