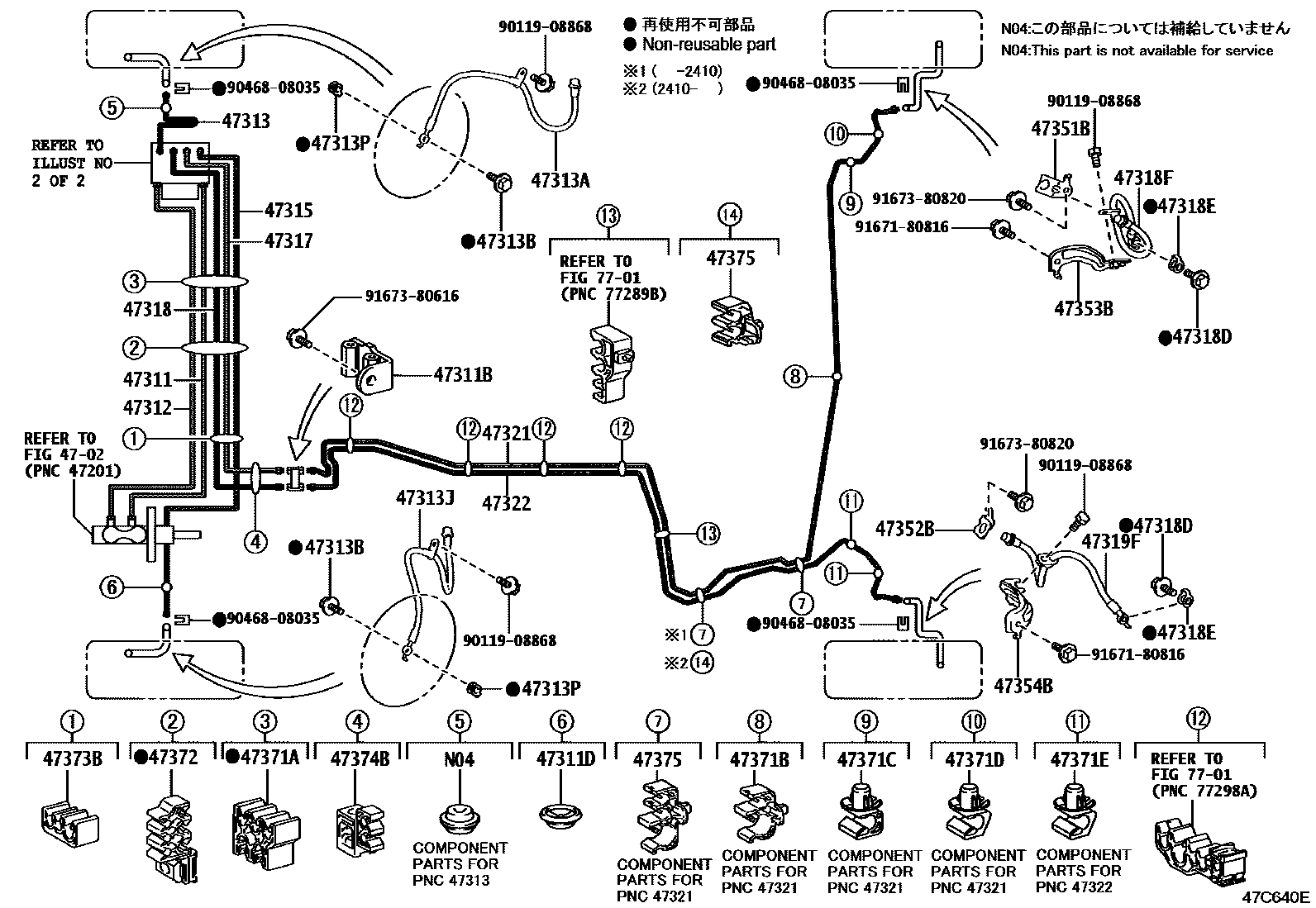

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311DGROMMET(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7701FUEL TANK & TUBE
9011908868
main90119-08868
9046808035
main90468-08035
9167180816
main91671-80816
9167380616
main91673-80616
9167380820
main91673-80820
38 parts on this diagram · 4 diagrams in section
