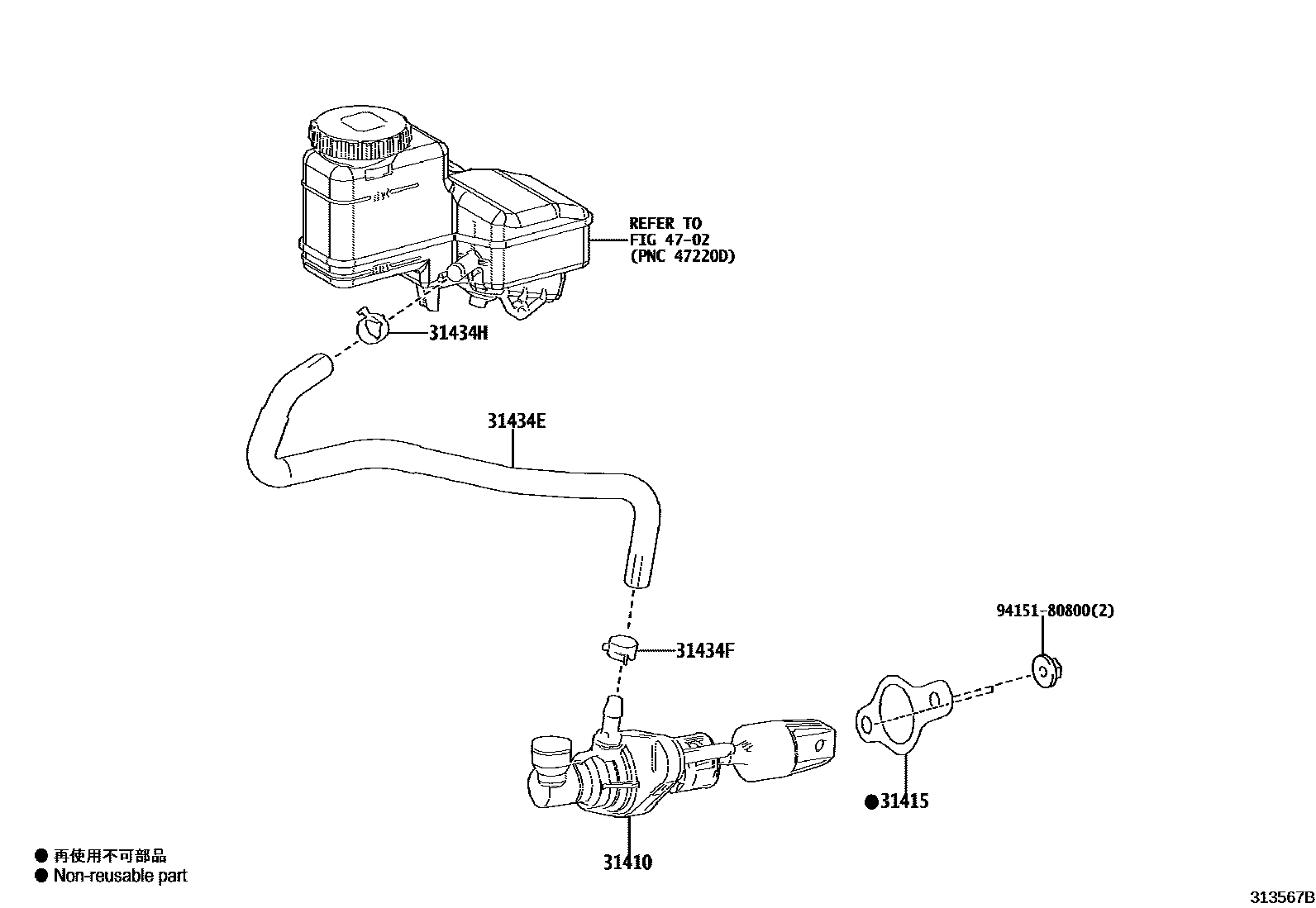

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-K0020iGXPA16..RHD202008-202404

main31420-K0030iGXPA16..LHD202008-202404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-K0010iGXPA16202008-202404

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-52210iGXPA16..LHD202008-202404

main31434-K0010iGXPA16..RHD202008-202404

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iGXPA16202008-202404

31434HCLIP(FOR CLUTCH RESERVOIR HOSE NO.2)

main96137-41501iGXPA16202008-202404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
