HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

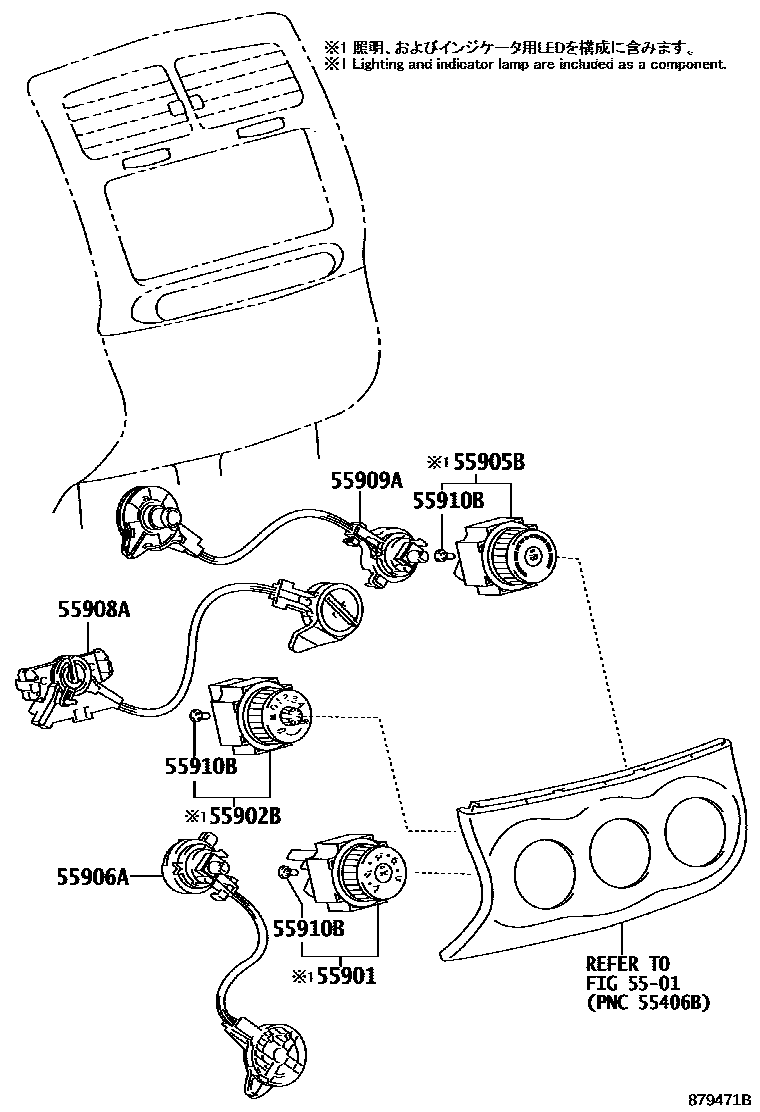

55901BASE SUB-ASSY, HEATER CONTROL

main55901-52240iZSP110200706-201407

55902BCONTROL SUB-ASSY, HEATER

main55902-52090iZSP110200706-201407

55905BKNOB, HEATER CONTROL, NO.2

main55903-52250iZSP110200706-201007

main55903-52251iZSP110201008-201407

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iZSP110200706-201407

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120iZSP110200706-201407

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iZSP110200706-201407

55910BBULB, HEATER CONTROL

main90010-01142iZSP110200706-201407
