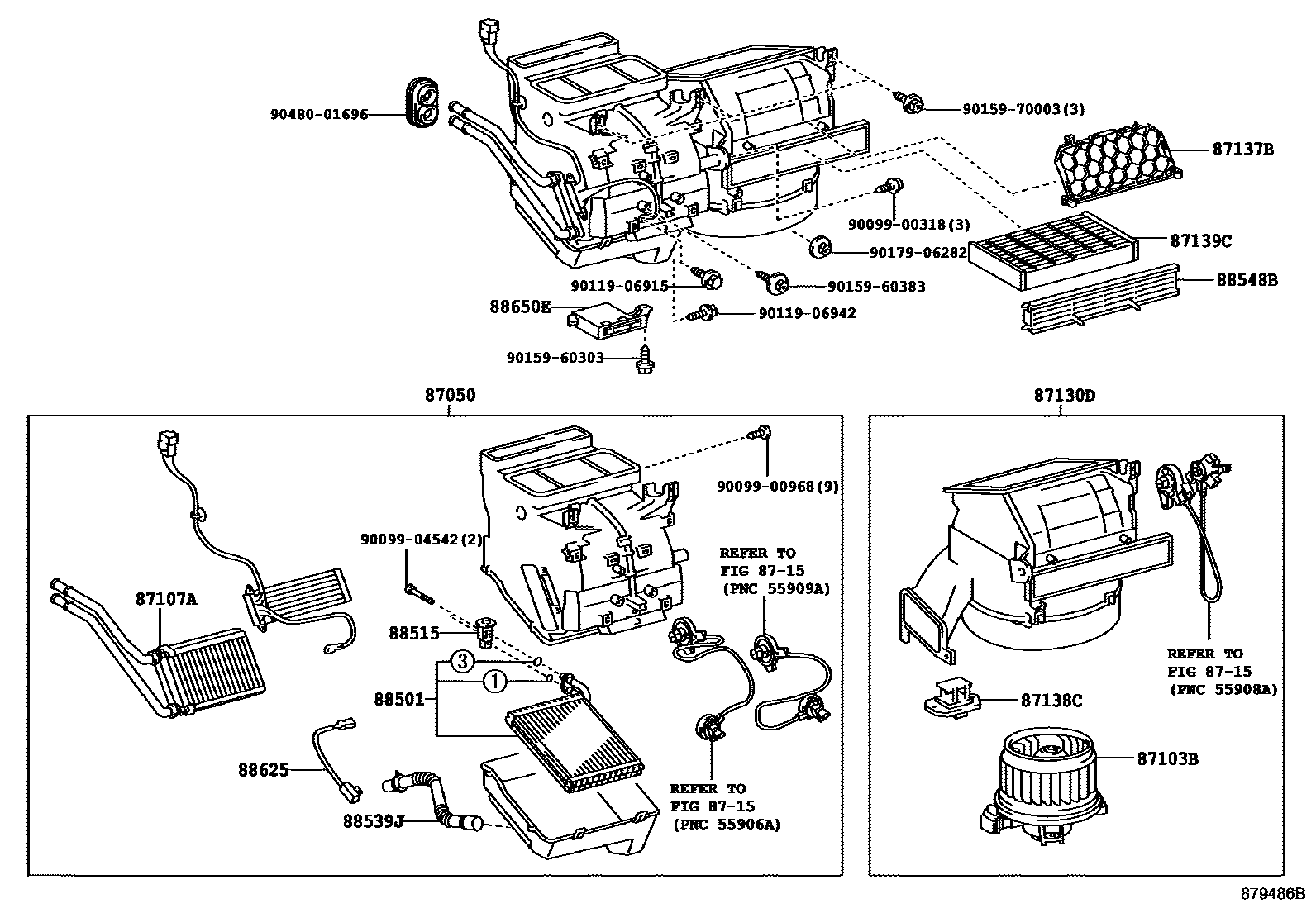

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL A/C 0002 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52083iZSP110200706-201407

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52140iZSP110200706-201008

main87103-52141iZSP110201009-201407

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52060iZSP110200706-200902

main87107-52061iZSP110200902-201407

87130DBLOWER ASSY

main87130-52091iZSP110200706-200807

main87130-52092iZSP110200808-201407

87137BCOVER, HEATER BLOWER

main87137-52010iZSP110200706-201407

87138CRESISTOR, BLOWER

main87138-52030iZSP110200706-201407

87139CFILTER, CLEAN AIR

main87139-52020iZSP110..USA200706-201206

PUERTO RICO SPEC

main87139-52040iZSP110..USA201206-201407

PUERTO RICO SPEC

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52100iZSP110200706-200805

main88501-52101iZSP110200806-201012

main88501-52102iZSP110201101-201111

main88501-52103iZSP110201112-201407

88515VALVE, COOLER EXPANSION

main88515-26070iZSP110200706-201012

main88515-68010iZSP110201101-201407

88539JHOSE, DRAIN COOLER

main88539-52020iZSP110200706-201012

main88539-52040iZSP110201101-201407

88548BCASE, AIR FILTER

main88548-52040iZSP110200706-201407

88625THERMISTOR, COOLER, NO.1

main88625-26090iZSP110200706-201407

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-52361iZSP110200706-200906

main88650-52640iZSP110200906-201407

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9011906915

main90119-06915

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

24 parts on this diagram · 2 diagrams in section
