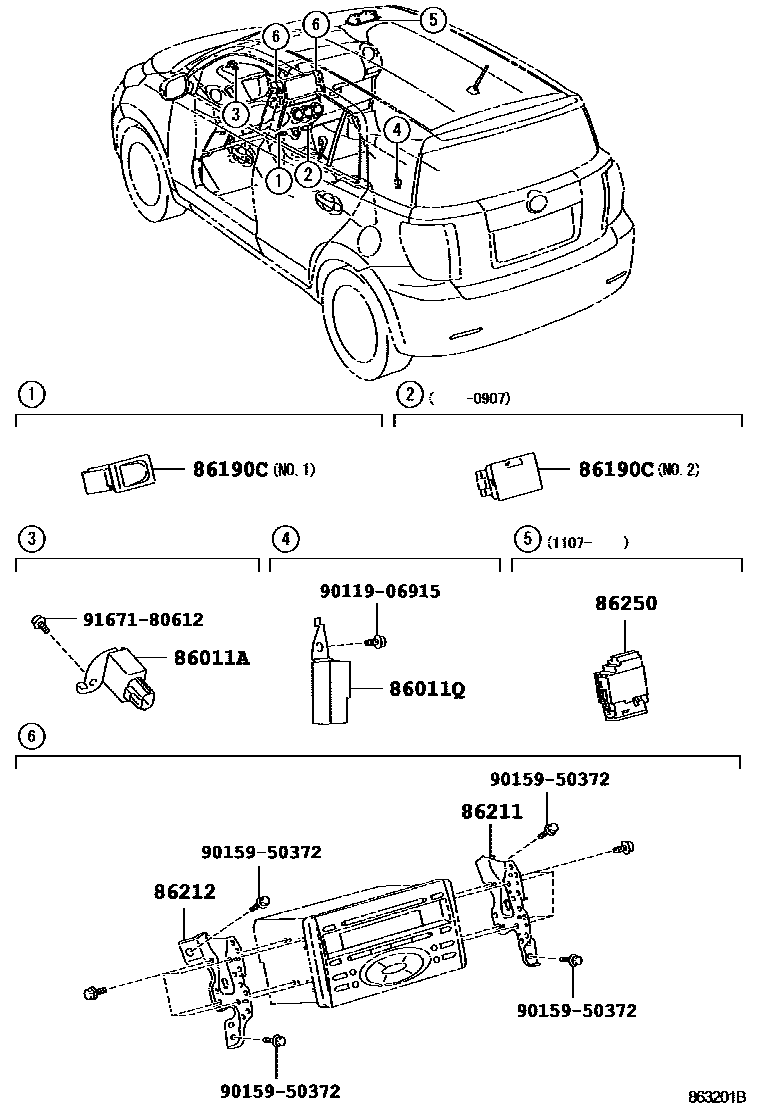

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04194iZSP110200706-201407

86011QCONDENSER, RADIO SETTING

main90980-04148iZSP110200706-201407

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010iZSP110200706-200907

NO.1

main86190-48030iZSP110200907-201407

NO.1

main86190-52030iZSP110200706-200907

NO.2

86211BRACKET, RADIO, NO.1

main86211-52240iZSP110200706-201407

86212BRACKET, RADIO, NO.2

main86212-52250iZSP110200706-201407

86250MICROPHONE ASSY, AMPLIFIER

main86250-52050iZSP110201108-201407

9011906915

main90119-06915

9015950372

main90159-50372

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
