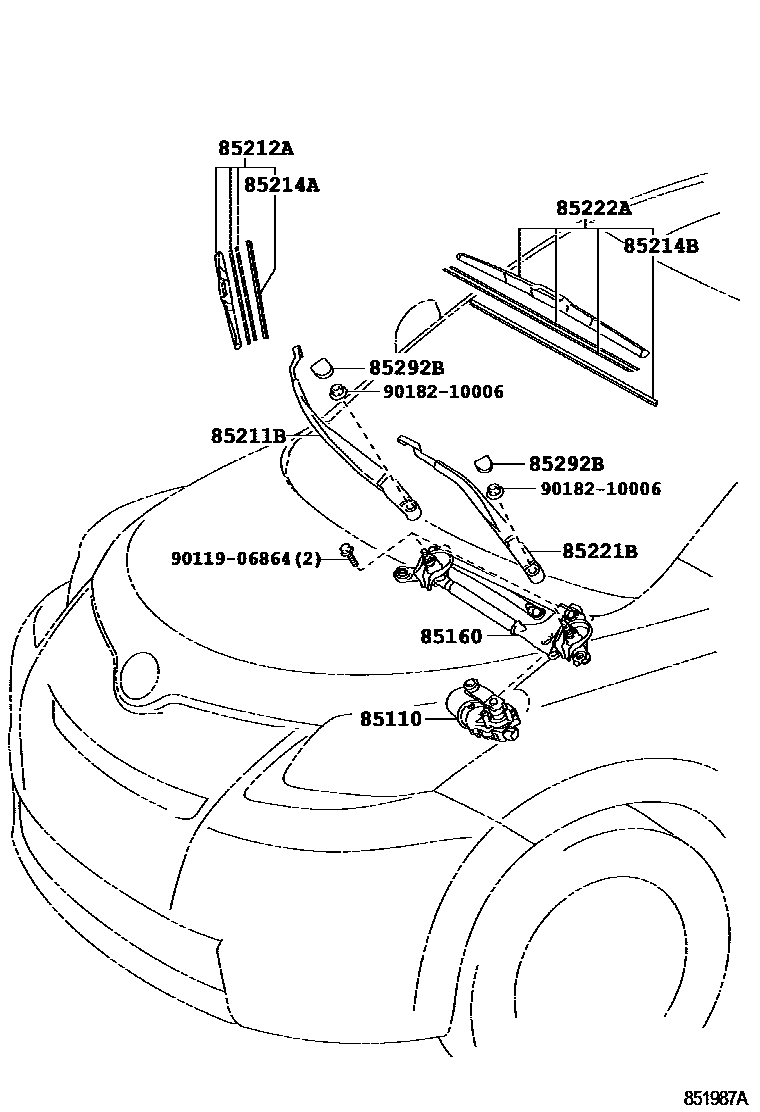

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52510iZSP110200706-200809

main85110-52550iZSP110200810-201407

85160LINK ASSY, WINDSHIELD WIPER

main85150-52370iZSP110200706-201407

85211BARM, FRONT WIPER, RH

main85211-52330iZSP110200706-201407

85212ABLADE, FR WIPER, RH

main85212-52180iZSP110200706-201407

85214ARUBBER, WIPER, RH

main85214-68030iZSP110200706-201407

85214BRUBBER, WIPER, LH

main85214-68020iZSP110200706-201407

85221BARM, FRONT WIPER, LH

main85221-52330iZSP110200706-201407

85222ABLADE, FR WIPER, LH

main85222-52170iZSP110200706-201407

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZSP110200706-201407

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
