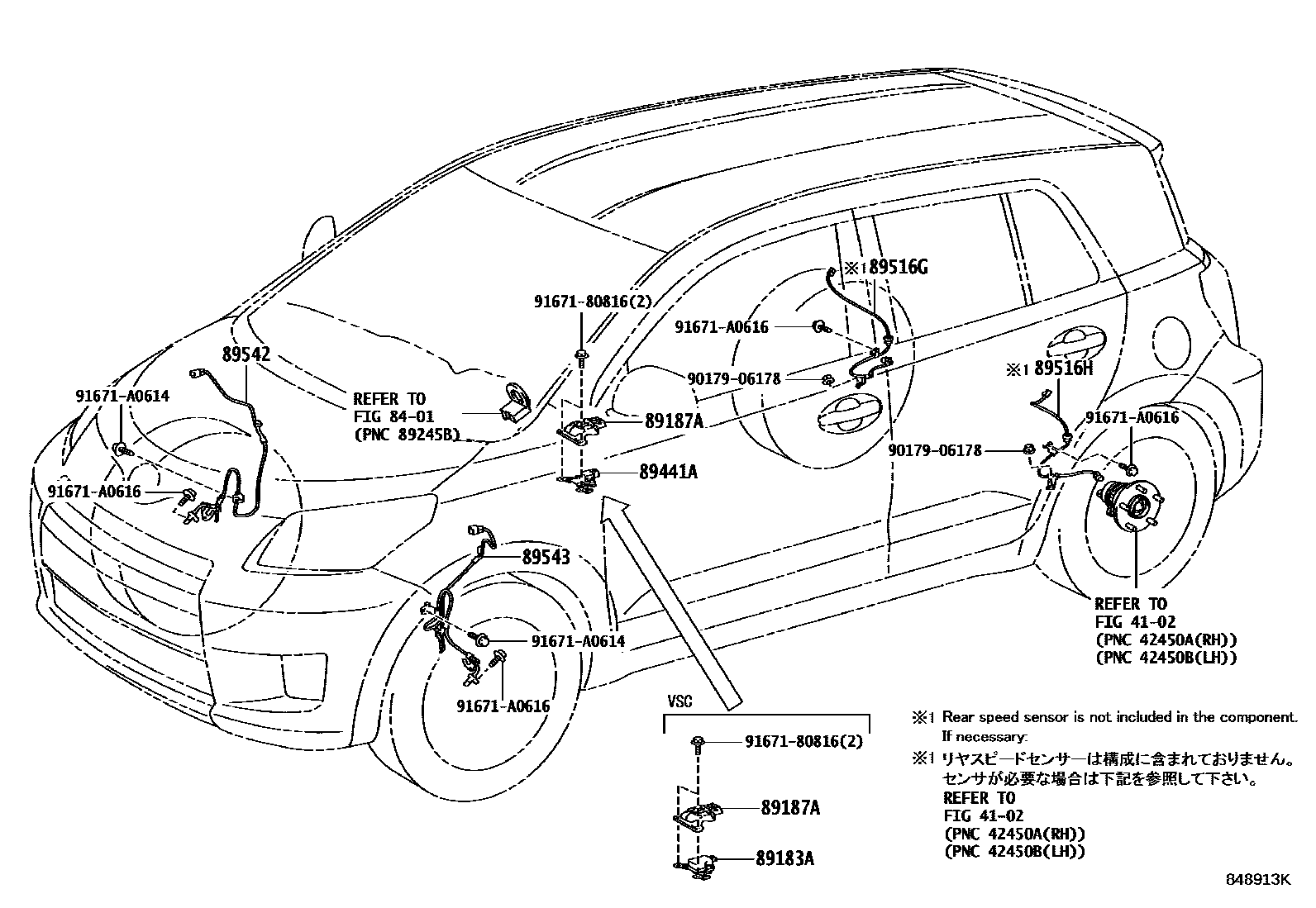

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89180-52050iZSP110200907-201407

main89180-52010iZSP110200706-200906

VEHICLE STABILITY CONT-WITH PUMP UP BA

89187APROTECTOR, YAWRATE SENSOR

main89187-52010iZSP110200706-201407

89441ASENSOR, DECELERATION

main89440-52060iZSP110200706-200907

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-52090iZSP110200706-200904

main89516-52110iZSP110200905-201407

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-52100iZSP110200706-200904

main89516-52120iZSP110200905-201407

89542SENSOR, SPEED, FRONT RH

main89542-52030iZSP110200706-200812

main89542-52060iZSP110200901-201107

main89542-52120iZSP110201108-201407

89543SENSOR, SPEED, FRONT LH

main89543-52030iZSP110200706-200810

main89543-52060iZSP110200810-201107

main89543-52120iZSP110201108-201407

9017906178

main90179-06178

9167180816

main91671-80816

91671A0614

main91671-A0614

91671A0616

main91671-A0616

13 parts on this diagram · 1 diagram in section
