WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR, ROOF & SEAT 0006 1CLAMP & BRACKET 0007 1CONNECTOR 1/2 0008 1CONNECTOR 2/2

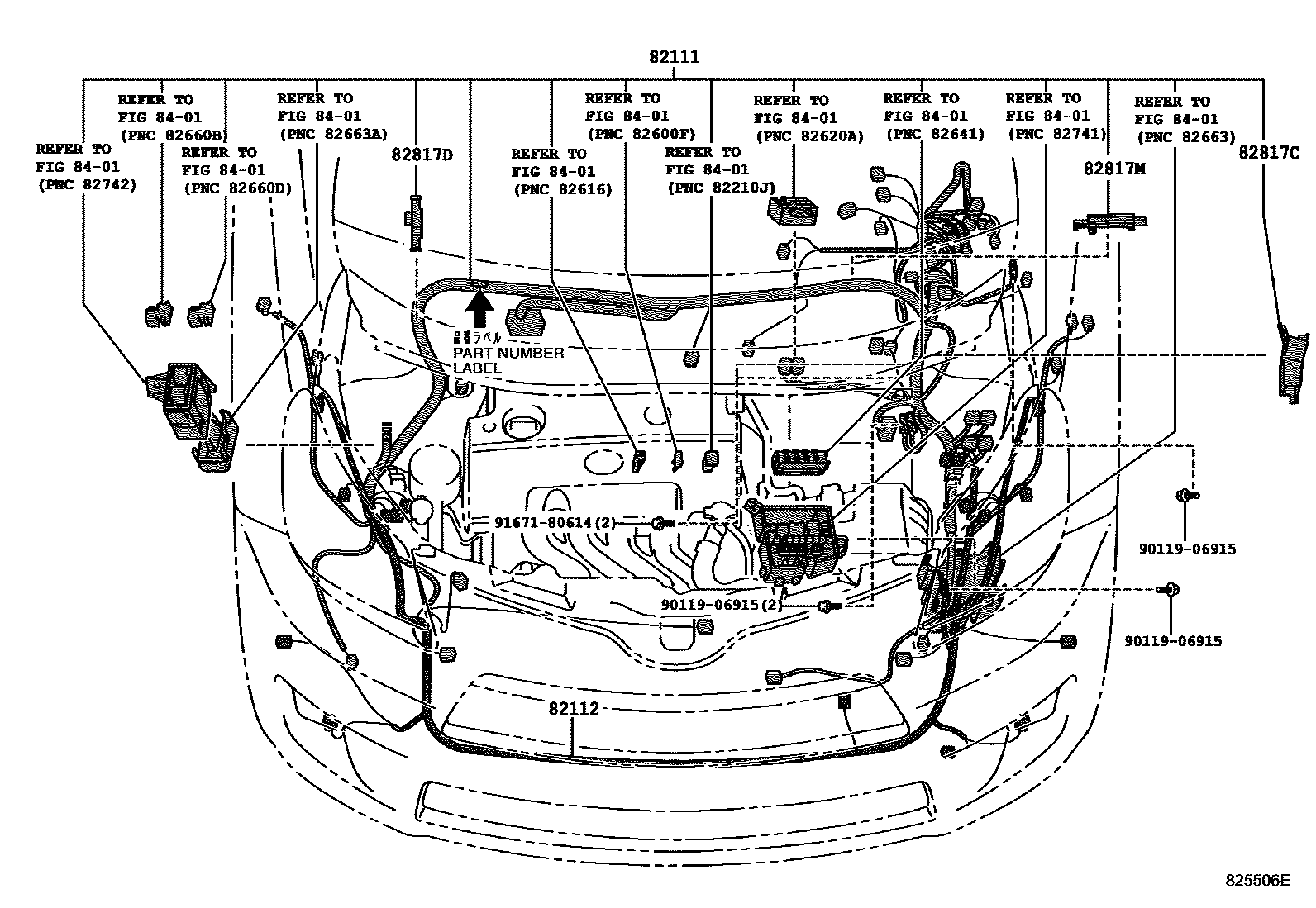

82111WIRE, ENGINE ROOM MAIN

main82111-52N81iZSP110200707-200907

main82111-52N92iZSP110200907-201008

main82111-52N93iZSP110..USA201008-201208

main82111-52N94iZSP110..USA201208-201407

main82111-5CK50iZSP110..CND201008-201206

main82111-5CK51iZSP110..CND201206-201407

main82111-52N90supersedes 82111-52N80iZSP110200706-200707

VEHICLE STABILITY CONT-WITH PUMP UP BA

main82111-52N91supersedes 82111-52N80iZSP110200707-200906

VEHICLE STABILITY CONT-WITH PUMP UP BA

82112WIRE, ENGINE ROOM, NO.2

main82112-52330iZSP110200706-201407

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-52511iZSP110200706-200707

main82817-52580iZSP110200707-200907

main82817-52830iZSP110200907-201407

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-52750iZSP110200706-201407

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-52820iZSP110200907-201407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9167180614

main91671-80614

8 parts on this diagram · 8 diagrams in section
