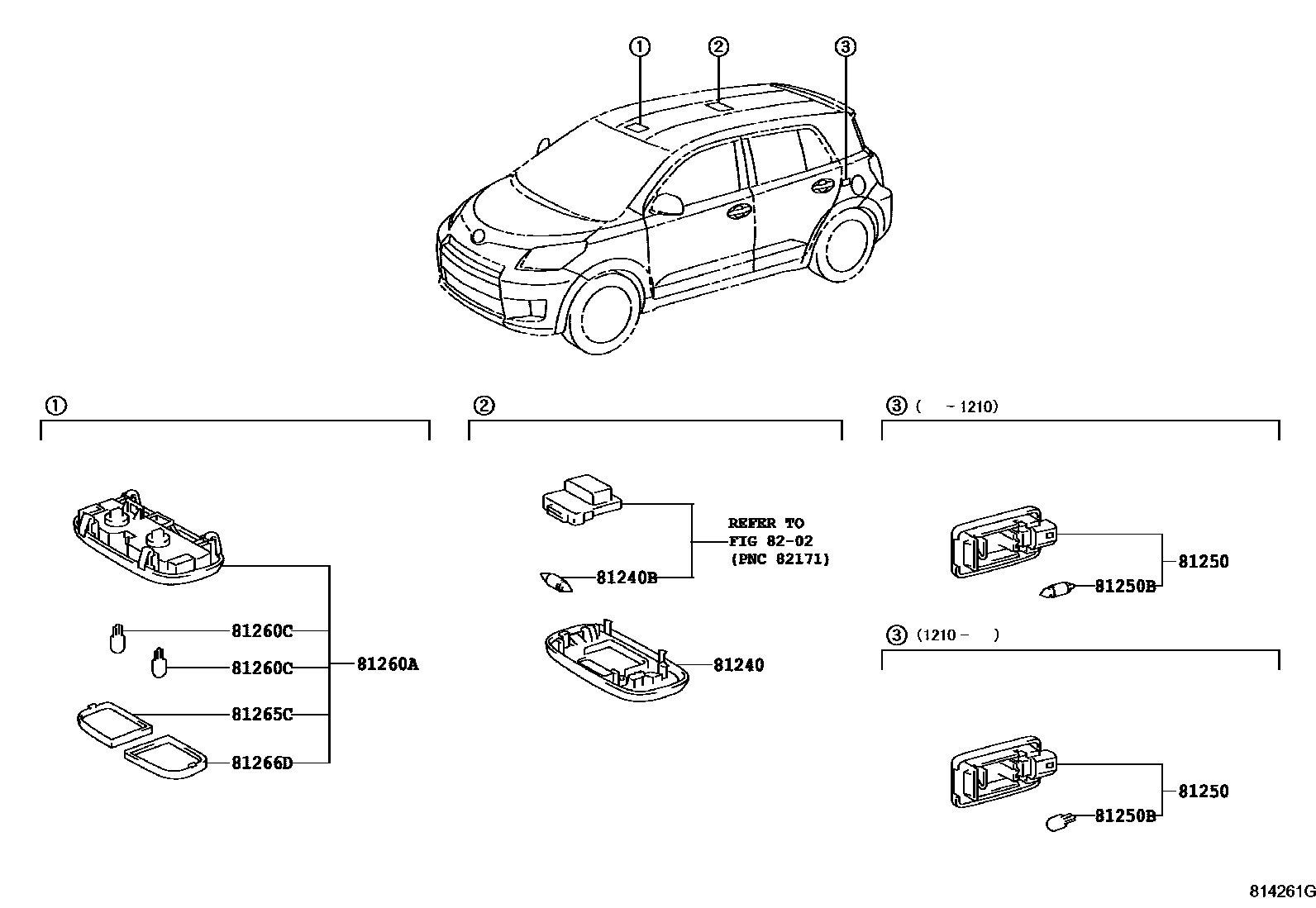

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-68010-B0iZSP110200706-201407

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZSP110200706-201407

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iZSP110201010-201209

main81330-05021iZSP110200706-201010

main81330-30100iZSP110201210-201407

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iZSP110200706-201210

12V 5W

main99132-12050iZSP110201210-201407

12V 5W

81260ALAMP ASSY, MAP

main81260-52030-B1iZSP110200706-201108

LT.GRAY,TRIM1#

main81260-52100-B0iZSP110201108-201407

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iZSP110200706-201407

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iZSP110200706-201407

81266DLENS, MAP LAMP, NO.2

main81266-52020iZSP110200706-201407

8202WIRING & CLAMP

→ Go to FIG 82-02

9 parts on this diagram · 1 diagram in section
