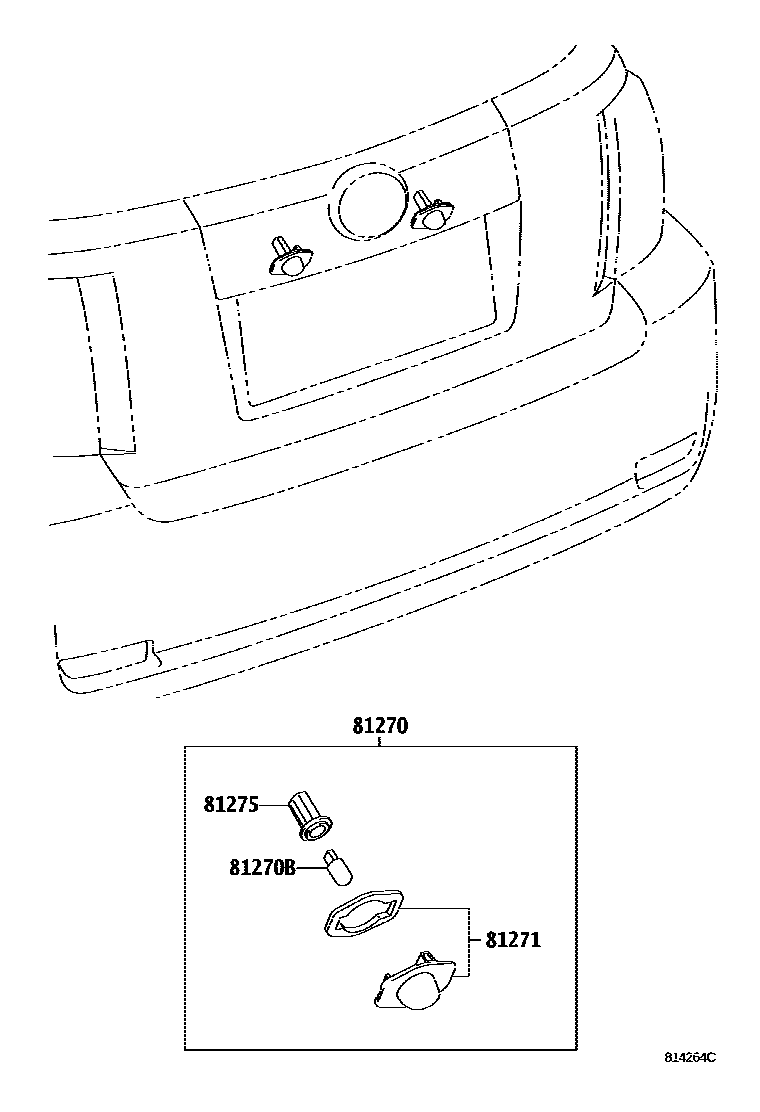

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-12520×2iZSP110200706-201008

main81270-12521×2iZSP110201008-201407

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iZSP110200706-201407

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12520×2iZSP110200706-201008

main81271-12521×2iZSP110201008-201407

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12520×2iZSP110200706-201407

4 parts on this diagram · 1 diagram in section
