MUDGUARD & SPOILER

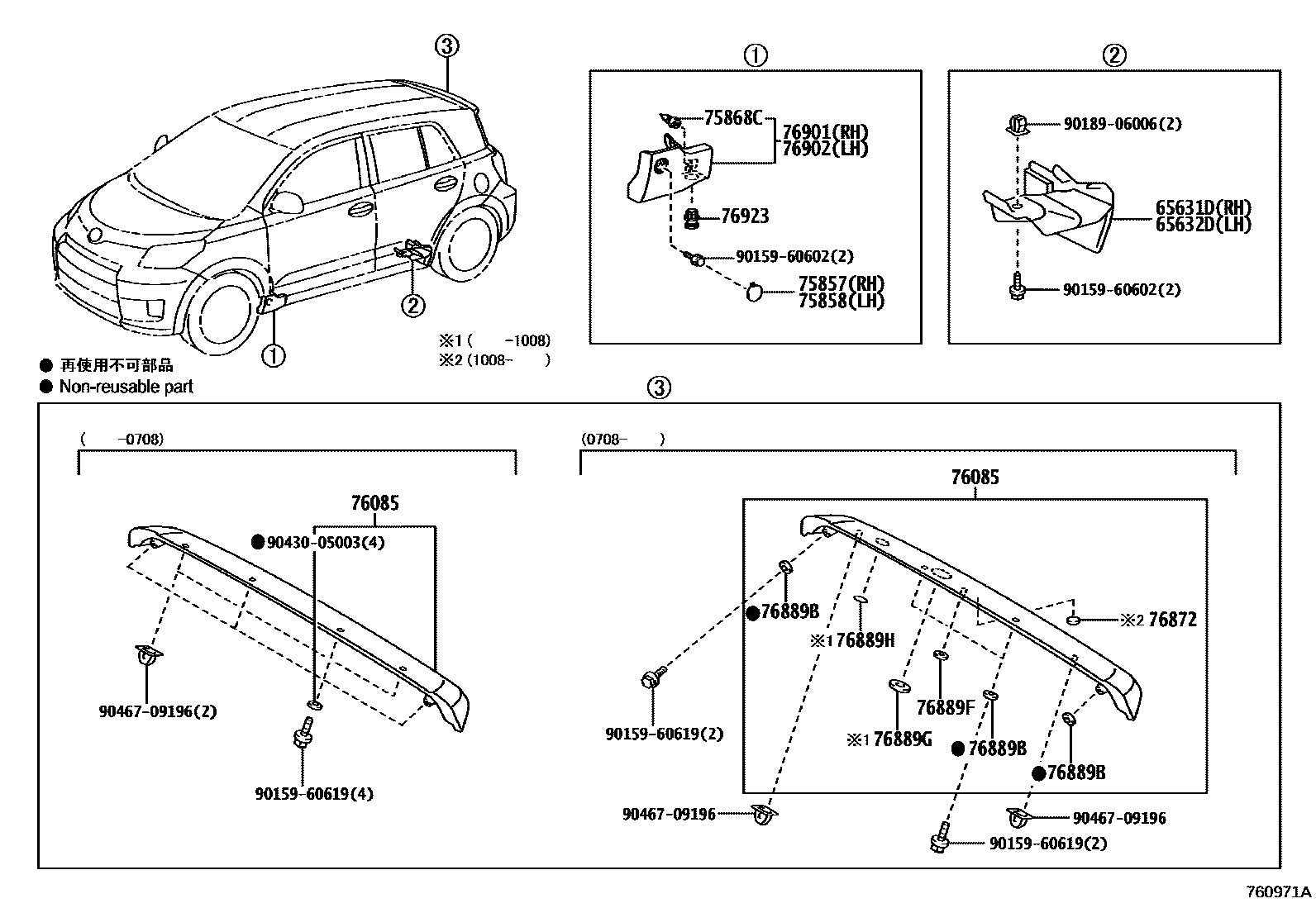

Parts diagram
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-52090i200706-201407
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-52090i200706-201407
75857COVER, ROCKER PANEL MOULDING, RH
main75857-52040-A0i200706-201407
SUPER WHITE 2,040
main75857-52040-B0i200706-201008
SILVER M.M.,1E7
main75857-52040-B1i200706-201407
GRAY ME.,1G3 ,2MB
main75857-52040-B2i201008-201407
SILVER ME.,1F7
main75857-52040-C0i200706-201407
BLACK MC.,209
main75857-52040-D0i200706-201407
RED M.M.,3R3
main75857-52040-G1i201008-201206
GREEN M.M.,6V2
main75857-52040-J0i200706-201407
DK.BLUE MC.,8S6
main75857-52040-J1i201206-201407
BLUE ME.,2KZ ,8T7
main75857-52040-J2i201308-201407
COOL SODA ME.,2MA
main75857-52040-K0i200707-201407
DEEP AMETHYST M.M.,9AH
main75857-52040-A1i201108-201110
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
main75857-52040-B3i201305-201307
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
main75857-52040-E1i200805-200806
SPECIAL EDITION,ORANGE ME.,4R8
main75857-52040-E2i201009-201011
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
main75857-52040-G0i200905-200906
SPECIAL EDITION,LT.GREEN ME.,6U5
75858COVER, ROCKER PANEL MOULDING, LH
main75858-52030-A0i200706-201407
SUPER WHITE 2,040
main75858-52030-B0i200706-201008
SILVER M.M.,1E7
main75858-52030-B1i200706-201407
GRAY ME.,1G3 ,2MB
main75858-52030-B2i201008-201407
SILVER ME.,1F7
main75858-52030-C0i200706-201407
BLACK MC.,209
main75858-52030-D0i200706-201407
RED M.M.,3R3
main75858-52030-G1i201008-201206
GREEN M.M.,6V2
main75858-52030-J0i200706-201407
DK.BLUE MC.,8S6
main75858-52030-J1i201206-201407
BLUE ME.,2KZ ,8T7
main75858-52030-J2i201308-201407
COOL SODA ME.,2MA
main75858-52030-K0i200707-201407
DEEP AMETHYST M.M.,9AH
main75858-52030-A1i201108-201110
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
main75858-52030-B3i201305-201307
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
main75858-52030-E1i200805-200806
SPECIAL EDITION,ORANGE ME.,4R8
main75858-52030-E2i201009-201011
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
main75858-52030-G0i200905-200906
SPECIAL EDITION,LT.GREEN ME.,6U5
75868CCLIP, REAR SPOILER, NO.2
main75868-33020×2i200706-201407
76085SPOILER SUB-ASSY, REAR
main76085-52150-A0i200706-201008
SUPER WHITE 2,040
sub76085-52912
main76085-52150-B0i200706-201008
SILVER M.M.,1E7
sub76085-52912
main76085-52150-B1i200706-201008
GRAY ME.,1G3
sub76085-52912
main76085-52150-C0i200706-201008
BLACK MC.,209
sub76085-52912
main76085-52150-D0i200706-201008
RED M.M.,3R3
sub76085-52912
main76085-52150-J0i200706-201008
DK.BLUE MC.,8S6
sub76085-52912
main76085-52150-K0i200707-201008
DEEP AMETHYST M.M.,9AH
sub76085-52912
main76085-52160-A0i201008-201407
SUPER WHITE 2,040
sub76085-52915
main76085-52160-B1i201008-201407
GRAY ME.,1G3
sub76085-52915
main76085-52160-B2i201008-201407
SILVER ME.,1F7 ,2MA
sub76085-52915
main76085-52160-C0i201008-201407
BLACK MC.,209 ,2KZ ,2MB
sub76085-52915
main76085-52160-D1i201008-201407
RED M.M.,3R3
sub76085-52915
main76085-52160-G0i201008-201206
GREEN M.M.,6V2
sub76085-52915
main76085-52160-J0i201008-201407
DK.BLUE MC.,8S6
sub76085-52915
main76085-52160-J1i201206-201407
BLUE ME.,8T7
sub76085-52915
main76085-52160-K0i201008-201407
DEEP AMETHYST M.M.,9AH
sub76085-52915
main76085-52150-E1i200805-200806
SPECIAL EDITION,ORANGE ME.,4R8
sub76085-52912
main76085-52150-G0i200905-200906
SPECIAL EDITION,LT.GREEN ME.,6U5
sub76085-52912
main76085-52160-A1i201108-201110
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
sub76085-52915
main76085-52160-B3i201305-201307
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
sub76085-52915
main76085-52160-E1i201009-201011
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
sub76085-52915
76872PROTECTOR, REAR SPOILER, NO.1
main76872-13020i201008-201407
76889BSEAL, REAR SPOILER, NO.1
main76889-21040×4i200708-201407
76889FSEAL, REAR SPOILER, NO.1
main76889-21050i200708-201407
76889GSEAL, REAR SPOILER, NO.1
main76889-21060i200708-201008
76889HSEAL, REAR SPOILER, NO.1
main76889-21070i200708-201008
76901MUDGUARD SUB-ASSY, SIDE, RH
main75601-52030-A0i200706-201407
SUPER WHITE 2,040
main75601-52030-B0i200706-201008
SILVER M.M.,1E7
main75601-52030-B1i200706-201407
GRAY ME.,1G3 ,2MB
main75601-52030-B2i201008-201407
SILVER ME.,1F7
main75601-52030-C0i200706-201407
BLACK MC.,209
main75601-52030-D0i200706-201407
RED M.M.,3R3
main75601-52030-G1i201008-201206
GREEN M.M.,6V2
main75601-52030-J0i200706-201407
DK.BLUE MC.,8S6
main75601-52030-J1i201206-201407
BLUE ME.,2KZ ,8T7
main75601-52030-J2i201308-201407
COOL SODA ME.,2MA
main75601-52030-K0i200707-201407
DEEP AMETHYST M.M.,9AH
main75601-52030-A1i201108-201110
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
main75601-52030-B3i201305-201307
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
main75601-52030-E1i200805-200806
SPECIAL EDITION,ORANGE ME.,4R8
main75601-52030-E2i201009-201011
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
main75601-52030-G0i200905-200906
SPECIAL EDITION,LT.GREEN ME.,6U5
76902MUDGUARD SUB-ASSY, SIDE, LH
main75602-52030-A0i200706-201407
SUPER WHITE 2,040
main75602-52030-B0i200706-201008
SILVER M.M.,1E7
main75602-52030-B1i200706-201407
GRAY ME.,1G3 ,2MB
main75602-52030-B2i201008-201407
SILVER ME.,1F7
main75602-52030-C0i200706-201407
BLACK MC.,209
main75602-52030-D0i200706-201407
RED M.M.,3R3
main75602-52030-G1i201008-201206
GREEN M.M.,6V2
main75602-52030-J0i200706-201407
DK.BLUE MC.,8S6
main75602-52030-J1i201206-201407
BLUE ME.,2KZ ,8T7
main75602-52030-J2i201308-201407
COOL SODA ME.,2MA
main75602-52030-K0i200707-201407
DEEP AMETHYST M.M.,9AH
main75602-52030-A1i201108-201110
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
main75602-52030-B3i201305-201307
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
main75602-52030-E1i200805-200806
SPECIAL EDITION,ORANGE ME.,4R8
main75602-52030-E2i201009-201011
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
main75602-52030-G0i200905-200906
SPECIAL EDITION,LT.GREEN ME.,6U5
76923RETAINER, SIDE MUDGUARD
main76923-52021×2i200706-201407
9015960602
main90159-60602
9015960619
main90159-60619
9018906006
main90189-06006
9043005003
main90430-05003
9046709196
main90467-09196

19 parts on this diagram · 1 diagram in section
