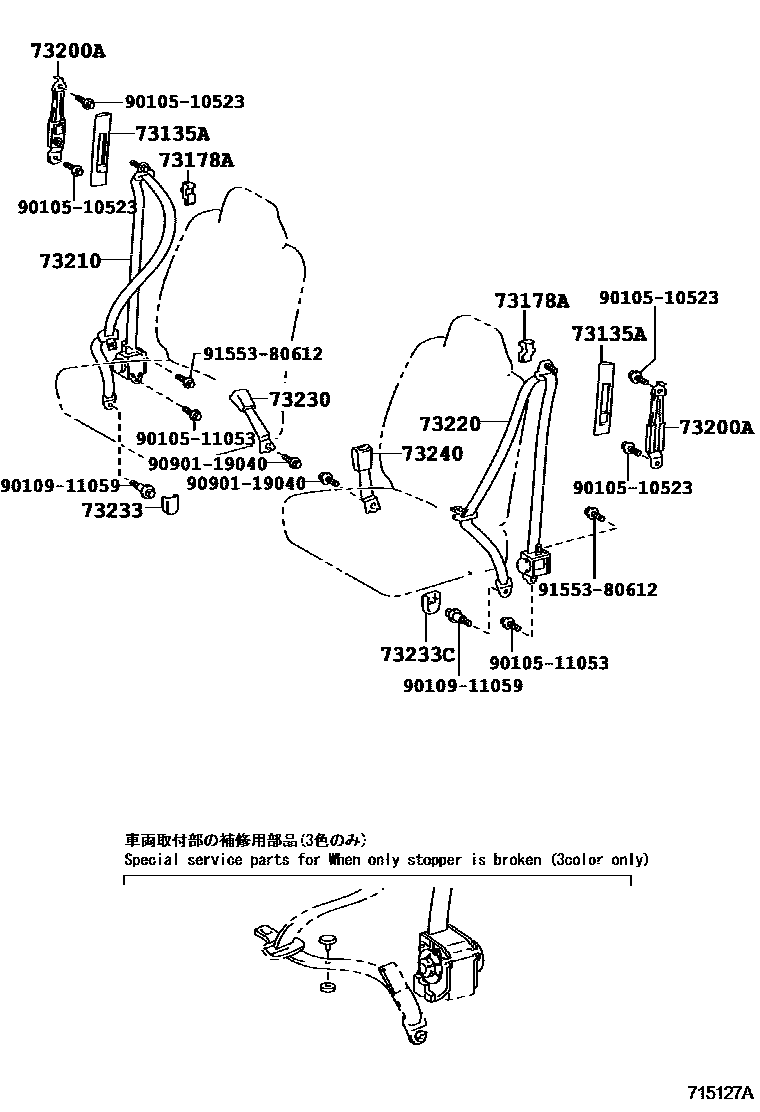

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-52020-B2×2iZSP110200706-201407

LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B2×2iZSP110200706-201407

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B2×2iZSP110200706-201407

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52670-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main73210-52800-B0iZSP110201008-201208

LT.GRAY/BLACK,TRIM1#

main73210-52860-B0iZSP110201208-201407

LT.GRAY,TRIM1#

main73210-52870-B0iZSP110201305-201307

SCION 10TH ANNIVERSARY SPECIAL EDITION,SILVER,TRIM10

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52710-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main73220-52710-B1iZSP110201008-201108

LT.GRAY/BLACK,TRIM1#

main73220-52860-B0iZSP110201108-201208

LT.GRAY,TRIM1#

main73220-52870-B0iZSP110201208-201407

LT.GRAY,TRIM1#

main73220-52890-B0iZSP110201305-201307

SCION 10TH ANNIVERSARY SPECIAL EDITION,SILVER,TRIM10

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52751-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main73230-52751-C0iZSP110201008-201207

BLACK,TRIM1#

main73230-52752-C0iZSP110201208-201407

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1iZSP110200706-201008

DK.GRAY,TRIM1#

main73233-52010-C0iZSP110201008-201407

BLACK,TRIM1#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-B1iZSP110200706-201008

DK.GRAY,TRIM1#

main73233-52010-C0iZSP110201008-201407

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52741-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main73230-52741-C0iZSP110201008-201207

BLACK,TRIM1#

main73230-52742-C0iZSP110201208-201407

BLACK,TRIM1#

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9090119040

main90901-19040

9155380612

main91553-80612

14 parts on this diagram · 2 diagrams in section
