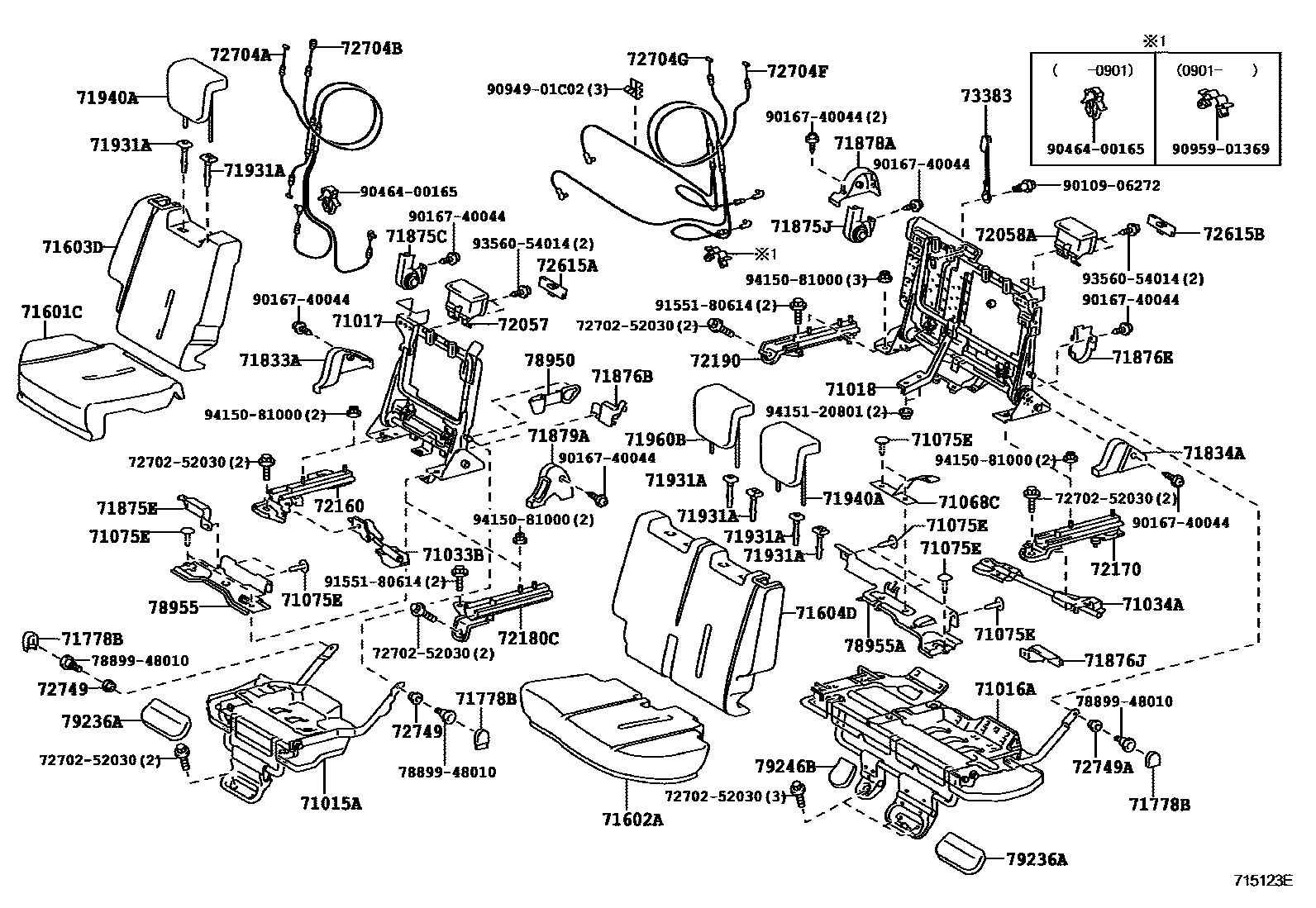

REAR SEAT & SEAT TRACK

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-52410iZSP110200706-201407

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-52060iZSP110200706-201407

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52550iZSP110200706-201407

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52420iZSP110200706-201407

71033BLEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH

main71033-52030iZSP110200706-201407

71034ALEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH

main71034-52010iZSP110200706-201407

71068CPLATE SUB-ASSY, REAR SEAT LEG, LH

main71068-52010iZSP110200706-201407

71075ECLIP(FOR REAR SEAT)

main90467-06085-B2×10iZSP110200706-201407

DK.GRAY,TRIM1#

71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH

main71601-52G10-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main71601-52G11-B3iZSP110201008-201407

DK.GRAY,TRIM1#

main71601-52G10-B1iZSP110..USA200805-200806

SPECIAL EDITION,DK.GRAY,ORANGE,TRIM10

main71601-52Q50-B1iZSP110201108-201110

12MY SPECIAL EDITION FOR USA,DK.GRAY,TRIM10

main71601-52Q90-B0iZSP110201305-201307

SCION 10TH ANNIVERSARY SPECIAL EDITION,DK.GRAY/SILVER,TRIM10

71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH

main71602-52460-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main71602-52461-B3iZSP110201008-201407

DK.GRAY,TRIM1#

main71602-52460-B1iZSP110..USA200805-200806

SPECIAL EDITION,DK.GRAY,ORANGE,TRIM10

main71602-52850-B1iZSP110201108-201110

12MY SPECIAL EDITION FOR USA,DK.GRAY,TRIM10

main71602-52A00-B0iZSP110201305-201307

SCION 10TH ANNIVERSARY SPECIAL EDITION,DK.GRAY/SILVER,TRIM10

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52J80-B2iZSP110200706-201008

DK.GRAY,TRIM1#

main71603-52J81-B6iZSP110201008-201407

DK.GRAY,TRIM1#

main71603-52J80-B4iZSP110..USA200805-200806

SPECIAL EDITION,DK.GRAY,ORANGE,TRIM10

main71603-52S20-B0iZSP110..USA200905-200906

SPECIAL EDITION,DK.GRAY,TRIM1#

main71603-52W00-B1iZSP110201108-201110

12MY SPECIAL EDITION FOR USA,DK.GRAY,TRIM10

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52G40-B2iZSP110200706-201008

DK.GRAY,TRIM1#

main71604-52G41-B6iZSP110201008-201407

DK.GRAY,TRIM1#

main71604-52G40-B4iZSP110..USA200805-200806

SPECIAL EDITION,DK.GRAY,ORANGE,TRIM10

main71604-52N40-B0iZSP110..USA200905-200906

SPECIAL EDITION,DK.GRAY,TRIM1#

main71604-52R00-B1iZSP110201108-201110

12MY SPECIAL EDITION FOR USA,DK.GRAY,TRIM10

71778BCOVER, REAR SEAT SIDE HINGE MALE, RH

main71778-52010-B0×3iZSP110200706-201407

DK.GRAY,TRIM1#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52060-B1iZSP110200706-201407

DK.GRAY,TRIM1#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-52060-B1iZSP110200706-201407

DK.GRAY,TRIM1#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52121-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52130-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71875JCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52141-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52140-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52121-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71876JCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52130-B0iZSP110200706-201407

DK.GRAY,TRIM1#

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-52070-B2iZSP110200706-201407

DK.GRAY,TRIM1#

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-52090-B2iZSP110200706-201407

DK.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-52030-B0×3iZSP110200706-201407

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

main71931-42020-B4×3iZSP110200706-201407

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-52490-B0×2iZSP110200706-201008

DK.GRAY,TRIM1#

main71940-52D40-B0×2iZSP110201008-201407

DK.GRAY,TRIM1#

main71940-52F40-B1×2iZSP110201305-201307

SCION 10TH ANNIVERSARY SPECIAL EDITION,DK.GRAY,TRIM10

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52320-B0iZSP110200706-201008

DK.GRAY,TRIM1#

main71960-52321-B0iZSP110201008-201407

DK.GRAY,TRIM1#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-52010-B0iZSP110200706-201407

DK.GRAY,TRIM1#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-52010-B0iZSP110200706-201407

DK.GRAY,TRIM1#

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-52040iZSP110200706-201407

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-52050iZSP110200706-201407

72180CTRACK ASSY, REAR SEAT, INNER RH

main72160-52050iZSP110200706-201407

72190TRACK ASSY, REAR SEAT INNER, LH

main72170-52040iZSP110200706-201407

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52070-B0iZSP110200706-201407

DK.GRAY,TRIM1#

72615BCOVER, REAR SEAT LOCK STRIKER, RH

main72615-52070-B0iZSP110200706-201407

DK.GRAY,TRIM1#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52150iZSP110200706-201407

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-52170iZSP110200706-201407

72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3

main72704-52160iZSP110200706-201407

72704GCABLE, REAR SEAT RECLINING CONTROL, NO.4

main72704-52180iZSP110200706-201407

72749SPACER, REAR SEAT RECLINING

main72749-48010×2iZSP110200706-201407

72749ASPACER, REAR SEAT RECLINING

main72749-48010iZSP110200706-201407

73383HOOK, RR SEAT BELT

main73383-33020iZSP110200706-201407

78950BAND ASSY, FOLD SEAT STOPPER, NO.1

main78950-52030iZSP110200706-201407

78955COVER, REAR SEAT UNDER TRAY RH

main78955-52010iZSP110200802-201407

main78955-52010-B0iZSP110200706-200802

DK.GRAY,TRIM1#

78955ACOVER, REAR SEAT UNDER TRAY

main78955-52020iZSP110200802-201407

main78955-52020-B0iZSP110200706-200802

DK.GRAY,TRIM1#

79236ACOVER, NO.2 SEAT LEG

main79236-52020-C0×2iZSP110200706-201407

BLACK,TRIM1#

79246BCOVER, NO.2 SEAT LEG, B

main79246-52020-C0iZSP110200706-201407

BLACK,TRIM1#

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7889948010BOLT, FRONT SEAT

main78899-48010

9010906272

main90109-06272

9016740044

main90167-40044

9046400165

main90464-00165

9094901C02

main90949-01C02

9095901369

main90959-01369

9155180614

main91551-80614

9356054014

main93560-54014

9415081000

main94150-81000

9415120801

main94151-20801

57 parts on this diagram · 1 diagram in section
