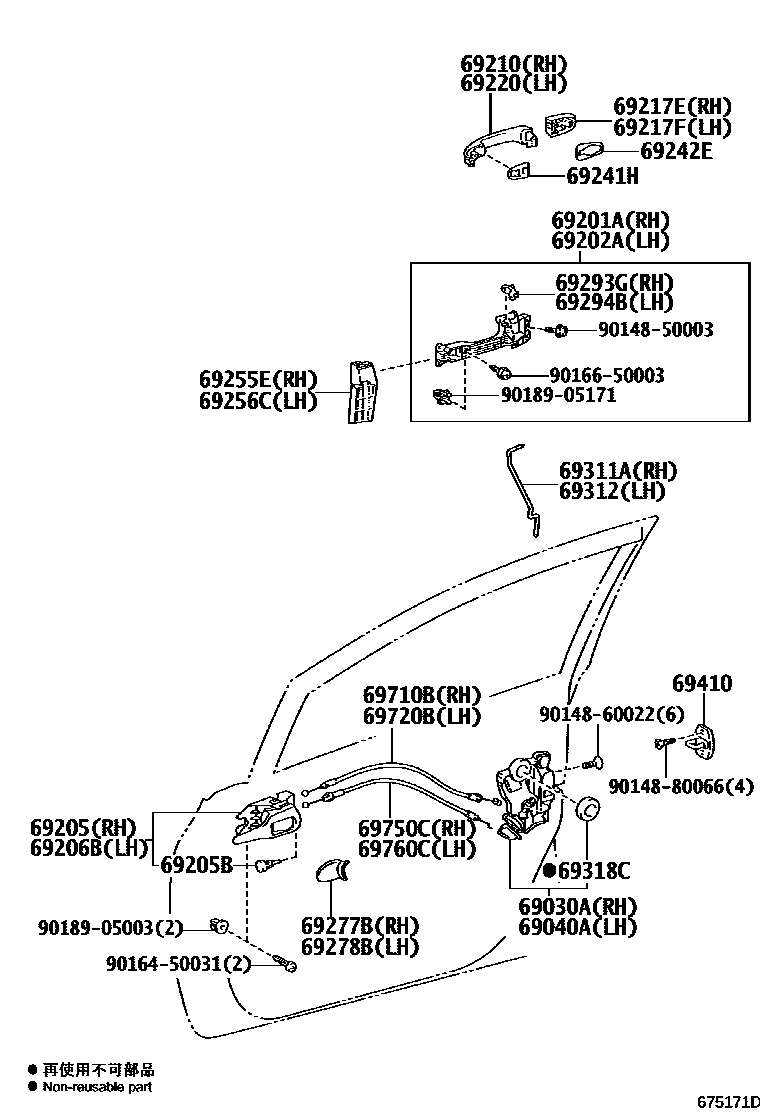

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
BLACK MC.,209
DEEP AMETHYST M.M.,9AH
SILVER M.M.,1E7
GRAY ME.,1G3 ,2MB
SILVER ME.,1F7 ,2MA
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,2KZ ,8T7
RED M.M.,3R3
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
SPECIAL EDITION,ORANGE ME.,4R8
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
SPECIAL EDITION,LT.GREEN ME.,6U5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3R3
DEEP AMETHYST M.M.,9AH
GRAY ME.,1G3 ,2MB
SILVER ME.,1F7 ,2MA
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,2KZ ,8T7
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
SPECIAL EDITION,LT.GREEN ME.,6U5
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
SPECIAL EDITION,ORANGE ME.,4R8
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
BLACK MC.,209
DEEP AMETHYST M.M.,9AH
SILVER M.M.,1E7
GRAY ME.,1G3 ,2MB
SILVER ME.,1F7 ,2MA
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,2KZ ,8T7
RED M.M.,3R3
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
SPECIAL EDITION,LT.GREEN ME.,6U5
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
SPECIAL EDITION,ORANGE ME.,4R8
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
BLACK MC.,209
DEEP AMETHYST M.M.,9AH
SILVER M.M.,1E7
GRAY ME.,1G3 ,2MB
SILVER ME.,1F7 ,2MA
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,2KZ ,8T7
RED M.M.,3R3
12MY SPECIAL EDITION FOR USA,WHITE PEARL CS.,070
SPECIAL EDITION,DEEP GOLD PEARL CS.,4T7
SPECIAL EDITION,ORANGE ME.,4R8
SCION 10TH ANNIVERSARY SPECIAL EDITION,BLUEISH SILVER CS.,1J8
SPECIAL EDITION,LT.GREEN ME.,6U5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
34 parts on this diagram · 1 diagram in section
