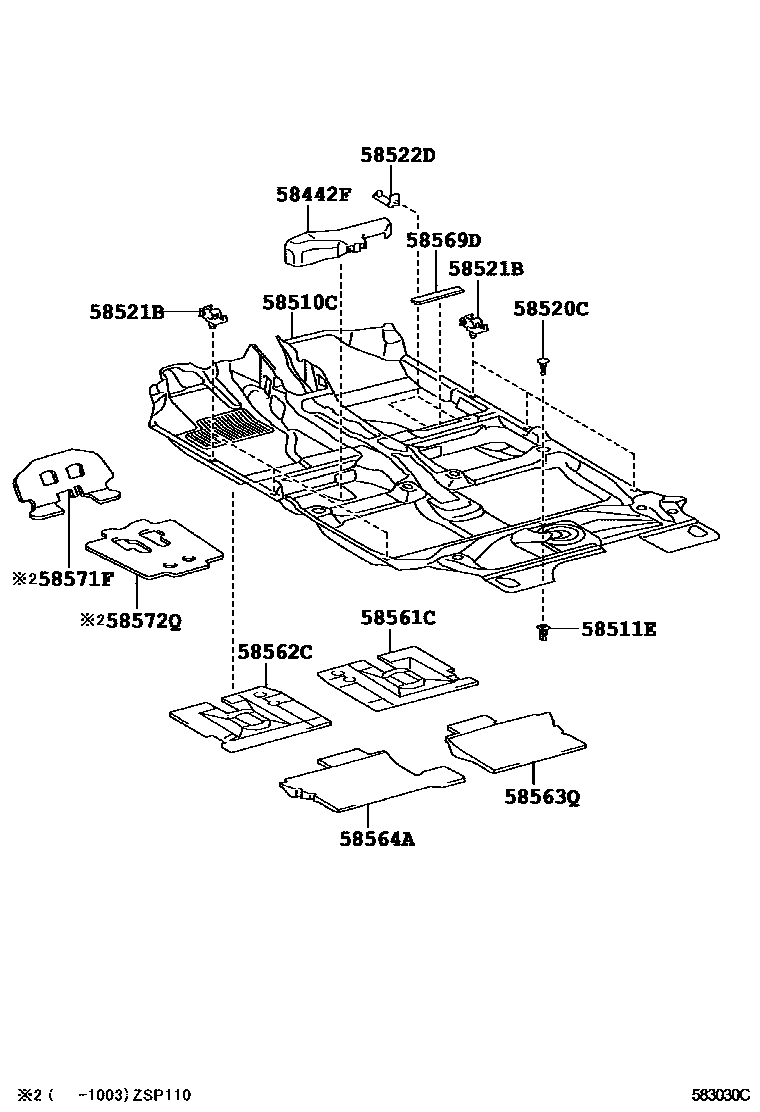

MAT & CARPET

58442FCOVER, JACK

main58442-52060iZSP110200706-201407

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52D90-B1iZSP110200706-200802

DK.GRAY,TRIM1#

main58510-52D90-B2iZSP110200802-200912

DK.GRAY,TRIM1#

main58510-52D91-B2iZSP110201001-201208

DK.GRAY,TRIM1#

main58510-52M40-B2iZSP110201208-201407

DK.GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-10023iZSP110200706-201407

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07115-B0iZSP110200706-201111

DK.GRAY,TRIM1#

main90467-07115-C0iZSP110201111-201407

BLACK,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-52040×6iZSP110200706-201407

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iZSP110201208-201407

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52130iZSP110200706-200912

main58561-52160iZSP110201001-201407

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52090iZSP110200706-200912

main58562-52130iZSP110201001-201407

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52070iZSP110200706-201001

main58563-52250iZSP110201001-201407

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52080iZSP110200706-201001

main58564-52260iZSP110201001-201407

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-52020-B0iZSP110200706-201111

DK.GRAY,TRIM1#

main58569-52020-C0iZSP110201111-201305

BLACK,TRIM1#

main58569-52021-C0iZSP110201306-201407

BLACK,TRIM1#

58571FPAD, FRONT FLOOR, FRONT

main58571-52020iZSP110200706-201003

58572QPAD, FRONT FLOOR, FRONT NO.2

main58572-52030iZSP110200706-201003

13 parts on this diagram · 1 diagram in section
