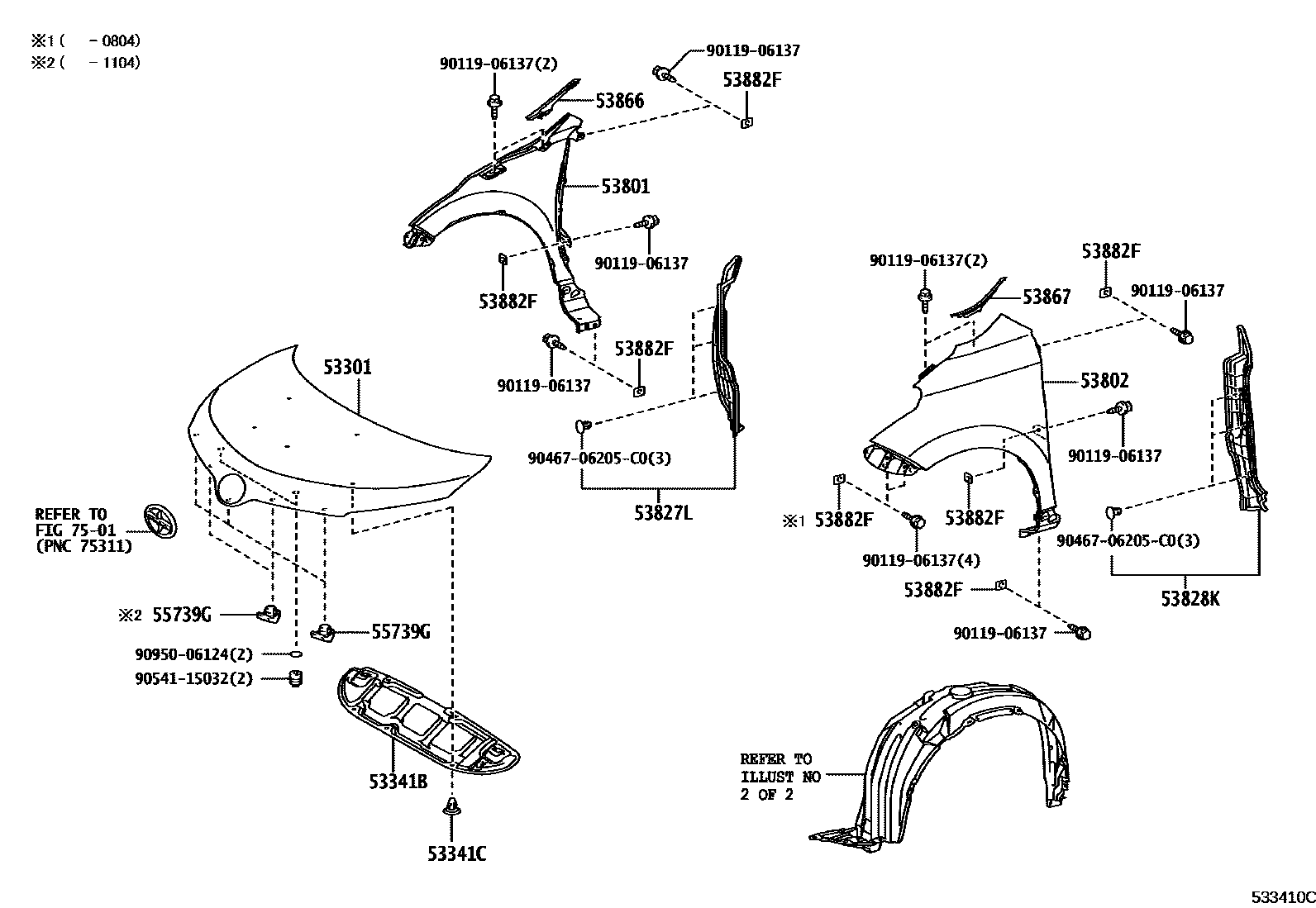

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-52280iZSP110200706-200912

main53301-52281iZSP110201001-201407

53341BINSULATOR, HOOD

main53341-52150iZSP110200706-201407

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZSP110200706-201407

53801FENDER SUB-ASSY, FRONT RH

main53801-52090iZSP110200706-201407

53802FENDER SUB-ASSY, FRONT LH

main53802-52090iZSP110200706-201407

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52130iZSP110200706-201407

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52150iZSP110200706-201407

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52130iZSP110200706-201407

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52120iZSP110200706-201407

53882FSEAL, FRONT FENDER

main53882-16030iZSP110200706-201407

55739GSTOPPER, HOOD

main55738-52060iZSP110200706-201407

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906137

main90119-06137

9046706205C0

main90467-06205C0

9054115032

main90541-15032

9095006124

main90950-06124

16 parts on this diagram · 2 diagrams in section
