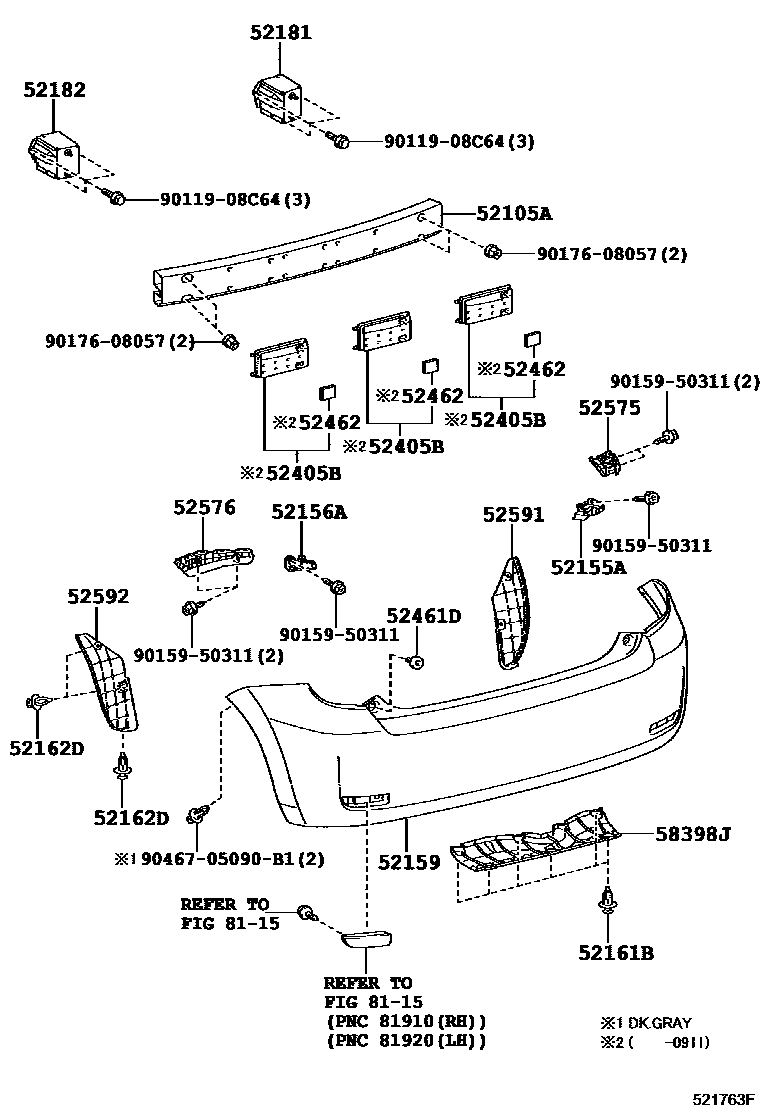

REAR BUMPER & BUMPER STAY

52105ABUMPER SUB-ASSY, REAR CENTER

main52105-52061iZSP110200706-201407

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52100iZSP110200706-201407

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52100iZSP110200706-201407

52159COVER, REAR BUMPER

main52159-52939iZSP110200706-201407

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×7iZSP110200706-201407

52162DPIECE, REAR BUMPER

main52161-16010×6iZSP110200706-201407

52181ARM, REAR BUMPER, RH

main52181-52130iZSP110200706-201407

52182ARM, REAR BUMPER, LH

main52182-52140iZSP110200706-201407

52405BGUARD SUB-ASSY, REAR BUMPER

main52405-52010×3iZSP110200706-200911

52461DCUSHION, REAR BUMPER

main52461-52020×2iZSP110200706-201407

52462PAD, REAR BUMPER, RH

main52462-12080×3iZSP110200706-200911

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52150iZSP110200706-201407

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52130iZSP110200706-201407

52591SEAL, REAR BUMPER SIDE, RH

main52591-52250iZSP110200706-201407

52592SEAL, REAR BUMPER SIDE, LH

main52592-52240iZSP110200706-201407

58398JCOVER, FLOOR UNDER, NO.1

main58398-52050iZSP110200706-201407

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908C64

main90119-08C64

9015950311

main90159-50311

9017608057

main90176-08057

9046705090B1

main90467-05090B1

21 parts on this diagram · 1 diagram in section
