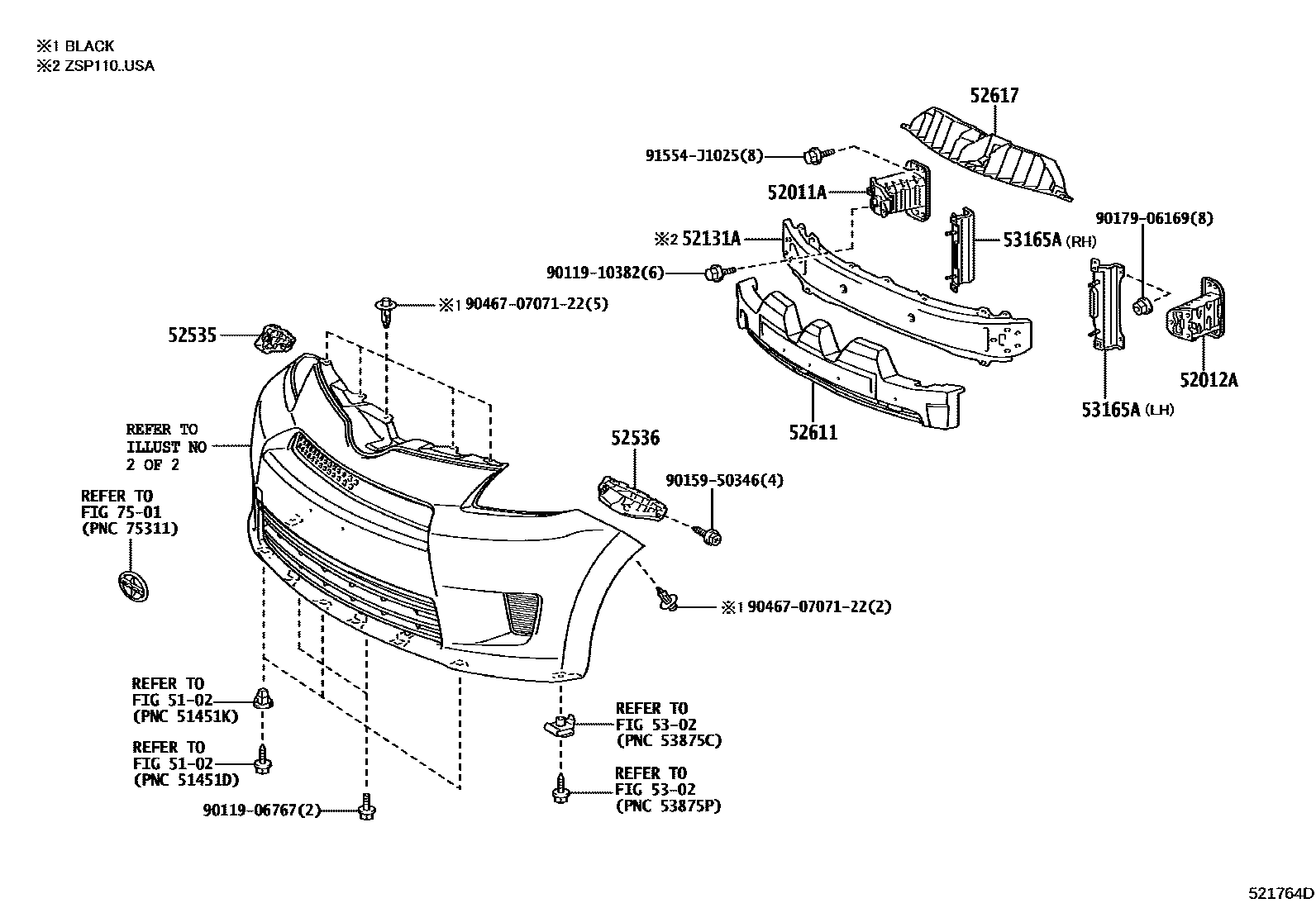

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-52020iZSP110200706-201207

main52011-52021iZSP110201208-201407

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-52020iZSP110200706-201407

52131AREINFORCEMENT, FRONT BUMPER

main52131-52280iZSP110..USA200706-201407

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52140iZSP110200706-201407

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52150iZSP110200706-201407

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52160iZSP110200706-201407

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52040iZSP110200706-201407

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52020iZSP110200706-201407

RH

main53165-52030iZSP110200706-201407

LH

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906767

main90119-06767

9011910382

main90119-10382

9015950346

main90159-50346

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

17 parts on this diagram · 2 diagrams in section
