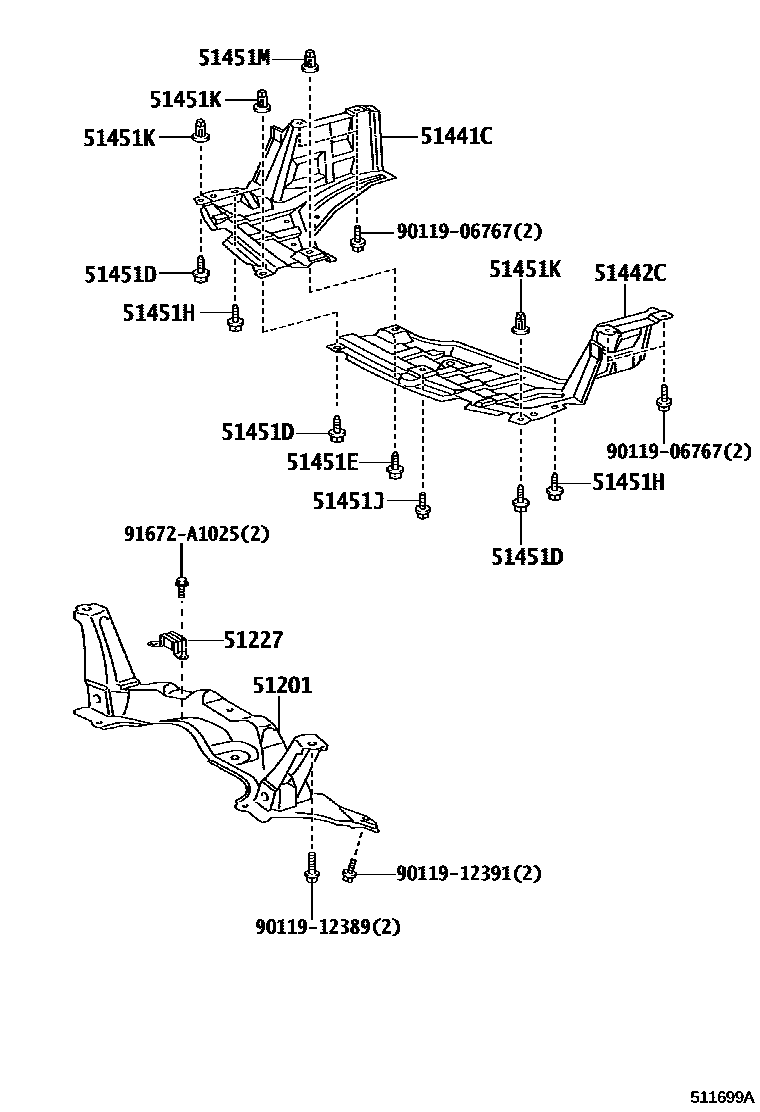

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52090iZSP110200706-201101

main51201-52093iZSP110201102-201105

main51201-52094iZSP110201106-201204

main51201-52095iZSP110201205-201207

main51201-52096iZSP110201208-201210

main51201-52097iZSP110201211-201407

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-52070iZSP110200706-201407

51441CCOVER, ENGINE UNDER, RH

main51441-52141iZSP110200706-200807

main51441-52180iZSP110201205-201407

main51441-52250iZSP110200808-201205

51442CCOVER, ENGINE UNDER, LH

main51442-52082iZSP110200706-200807

main51442-52090iZSP110201205-201407

main51442-52110iZSP110200808-201205

51451DSCREW, NO.1

main90159-60383iZSP110200706-201407

51451ESCREW, NO.2

main90159-60383iZSP110200706-201407

51451HSCREW, NO.3

main90159-60383iZSP110200706-201407

51451JBOLT, NO.1

main90119-06767iZSP110200706-201407

51451KGROMMET, SCREW, NO.1

main90189-06076iZSP110200706-201407

51451MGROMMET, SCREW, NO.2

main90189-06076iZSP110200706-201407

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

91672A1025

main91672-A1025

14 parts on this diagram · 2 diagrams in section
