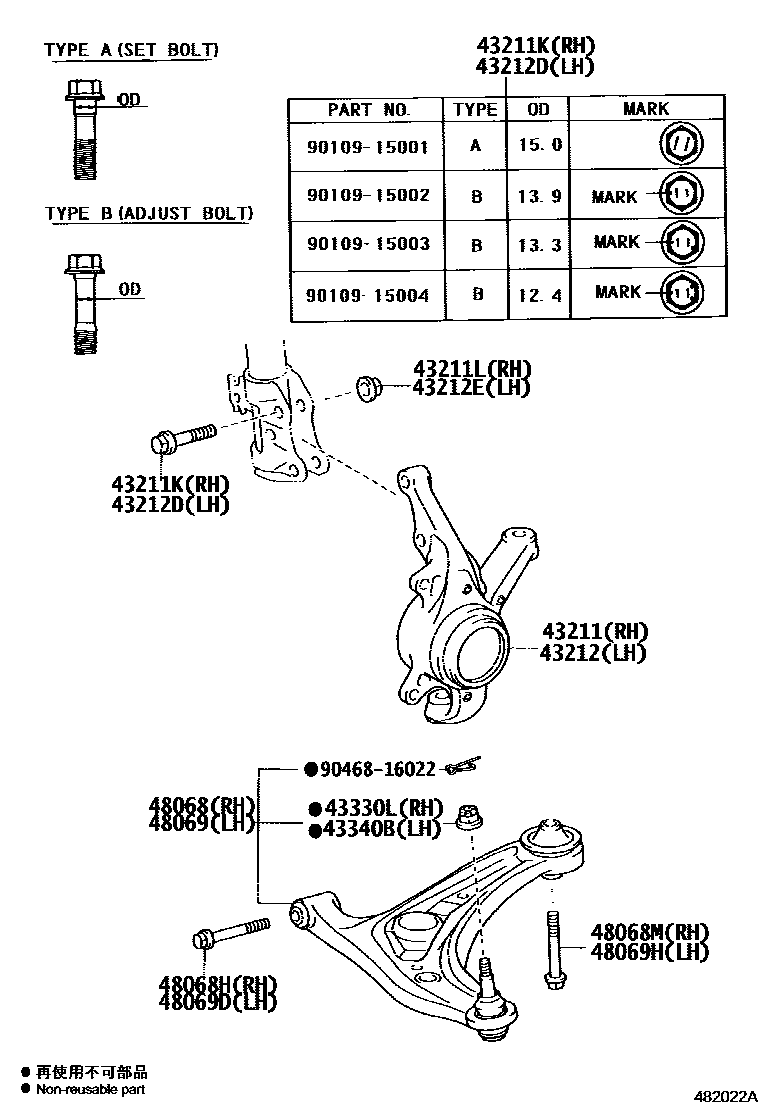

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050200706-201407

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001200706-201407

main90109-15002200706-201407

main90109-15003200706-201407

main90109-15004200706-201407

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004200706-201407

43212KNUCKLE, STEERING, LH

main43212-52050200706-201407

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001200706-201407

main90109-15002200706-201407

main90109-15003200706-201407

main90109-15004200706-201407

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004200706-201407

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007200706-201407

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007200706-201407

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59095200706-200810

main48068-59135200811-201009

main48068-59145201010-201407

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086200706-201407

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14126200706-201008

main90119-14144201008-201212

main90119-14151201212-201407

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59095200706-200810

main48069-59125200811-201009

main48069-59135201010-201407

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086200706-201407

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14126200706-201008

main90119-14144201008-201212

main90119-14151201212-201407

9046816022

main90468-16022

15 parts on this diagram · 1 diagram in section
